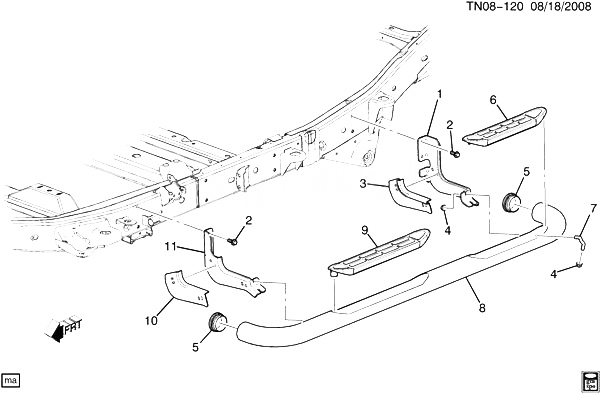

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88966598 |
BRACKET, ASST STEP RR (*KIT1)
| N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
02 |
|
| 002 |
|
БОЛТ, ASST STEP (*KIT1, KIT2) |
|
2007-2007 |
|
| 003 |
88966599 |
COVER, ASST STEP FIN (REAR BRACKET) (PLASTIC) (*KIT1) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
01 |
| 003 |
88968558 |
COVER, ASST STEP FIN (REAR BRACKET) (PLASTIC) (*KIT1) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
01 |
| 004 |
|
NUT, ASST STEP BRKT (*KIT1, KIT2) |
|
2007-2007 |
|
| 005 |
88968605 |
CAP, ASST STEP FRT FIN (PART OF 8) (*KIT1) (8.304) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
02 |
| 005 |
88968605 |
CAP, ASST STEP RR FIN (PART OF 8) (*KIT1) (8.304) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
02 |
| 005 |
88968605 |
CAP, ASST STEP FRT FIN (PART OF 8) (*KIT1) (8.304) (USE W/18 STEP PAD) (FOR 2ND DES SEE 19170609) (SERV CMP OF ПОДНОЖКАS 12498037-42, 17800464, 17801826, 12499819-21, 19211855-56) |
N153 (06) (EXC VFA) (SAME AS BVS, BVT) (1ST DES) |
2007-2007 |
01 |
| 006 |
|
PAD, ASST STEP RR (PART OF 8) (*KIT1) |
|
2007-2007 |
|
| 007 |
|
БОЛТ, ASST STEP BRKT (W-BOLT) (*KIT1, KIT2) |
|
2007-2007 |
|
| 008 |
19132037 |
STEP ASM, TUBULAR ASSIST (INCLS 5, 6, 9) (DK GRAY) (LESS BRKTS) (INCLS BAR, 2 PADS ; 2 END CAPS) (*KIT1) |
N1 (06) (WBL) |
2007-2007 |
01 |
| 008 |
19132038 |
STEP ASM, TUBULAR ASSIST (INCLS 5, 6, 9) (DK GRAY) (LESS BRKTS) (INCLS BAR, 2 PADS ; 2 END CAPS) (*KIT1)
| N1 (06) (WBL) |
2007-2007 |
01 |
|
| 009 |
|
PAD, ASST STEP FRT (PART OF 8) (*KIT1) |
|
2007-2007 |
|
| 010 |
88966596 |
COVER, ASST STEP FIN (FRONT BRACKET) (PLASTIC) (*KIT1) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
01 |
| 010 |
88968559 |
COVER, ASST STEP FIN (FRONT BRACKET) (PLASTIC) (*KIT1) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
01 |
| 011 |
88966597 |
BRACKET, ASST STEP FRT (*KIT1)
| N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
02 |
|
| K01 |
19170595 |
STEP, ASST (INCLS 1-11) (DK GRAY) (INSTALL .4) (17.4KGS) (SS) (TEXTURE) (W/BLACK PAD) (RAISED RECT) (20 REAR STEP PAD) |
N1 (06) (WBL) |
2007-2007 |
01 |
| K02 |
88967849 |
ATTACHMENT PKG, ASST STEP (INCLS 2, 4, 7) (INCLS 4 NUTS) (8.228) (SERV CMP OF 12498473, 17800980) |
N1 (06) |
2007-2007 |
01 |
| K02 |
88967850 |
ATTACHMENT PKG, ASST STEP (INCLS 2, 4, 7) (INCLS 16 MTG BOLTS) (8.228) (SERV CMP OF 12498471-72, 19170594-95, 19202051, 19202056, 19211474) |
N1 (06) |
2007-2007 |
01 |
| K02 |
88968834 |
ATTACHMENT PKG, ASST STEP (INCLS 2, 4, 7) (INCLS BOLTS ; NUTS) |
N1 (06) (BVE, BVT, HH3, WBL) |
2007-2007 |
01 |
