| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

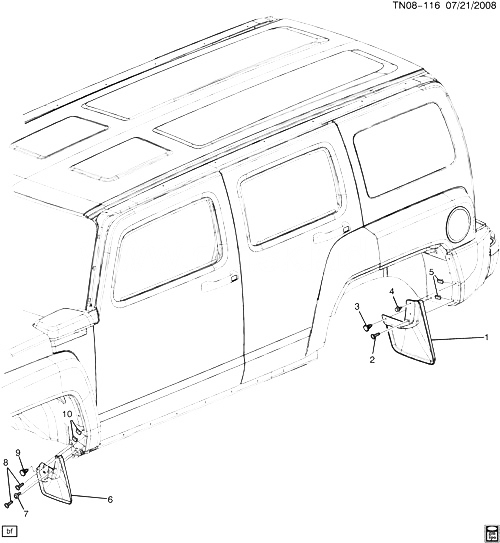

| 001 |
17801166 |
FLAP PKG, RR MUD (INCLS 2, 3, 5) (GRAY) (TINSTALL .50) (0.42KGS) (RR) (NO LOGO) (*KIT1)
| N1 (06) (Q8H) (EXC B74) |
2007-2010 |
01 |
|
| 002 |
|
БОЛТ, RR MUD FLAP GUARD (PART OF 1) (*KIT1) |
|
2007-2010 |
|
| 003 |
|
RETAINER, RR MUD FLAP (PUSH IN) (PART OF 1) (*KIT1) |
|
2007-2010 |
|
| 004 |
11589293 |
RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (RR W/H PNL LNR (PUSH IN))
|
2007-2010 |
12 |
|
| 005 |
|
NUT, RR MUD FLAP GUARD (PART OF 1) (*KIT1) |
|
2007-2010 |
|
| 006 |
17801165 |
FLAP PKG, F/FDR MUD (INCLS 8-10) (GRAY) (INSTALL .50) (0.42KGS) (FRT) (NO LOGO) (*KIT1)
| N1 (06) (Q8H) (EXC B74) |
2007-2010 |
01 |
|
| 007 |
11610199 |
БОЛТ, HEX W/CON WA, M6X1X30, 21 THD, 17 OD, 8.8, GMW3359 (F/FDR MUD FLAP) |
|
2007-2010 |
02 |
| 008 |
|
БОЛТ, F/FDR MUD FLAP (PART OF 6) (*KIT1) |
|
2007-2010 |
|
| 009 |
|
RETAINER, F/FDR MUD FLAP (PUSH IN) (PART OF 6) (*KIT1) |
|
2007-2010 |
|
| 010 |
|
NUT, F/FDR LWR (PART OF 6) (*KIT1) |
|
2007-2010 |
|
| K01 |
17800723 |
FLAP PKG, F/FDR MUD ; RR MUD (INCLS 1-3, 5, 6, 8-10) (GRAY) (INSTALL 1.0) (0.83KGS) (NO LOGO) (DO NOT USE WITH ROCKER PROTECTION 12498471)
| N1 (06) |
2007-2010 |
01 |
|
