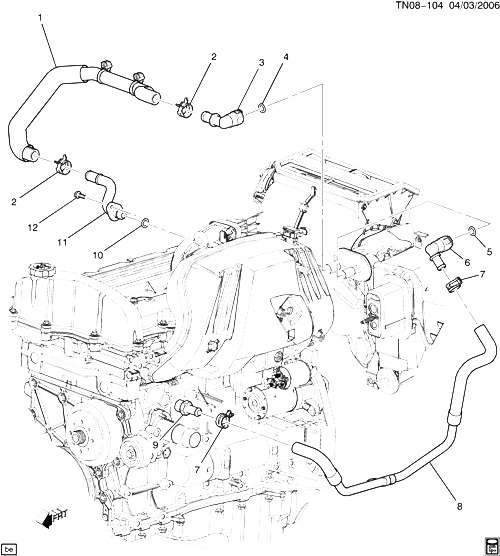

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25788703 |
HOSE, HTR OTLT (INCLS 3) |
N153 (06) (LLR, JJA, RHD) |
2007-2008 |
01 |
| 002 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR OTLT HOSE) (8.948) |
|
2007-2008 |
02 |
| 003 |
|
FITTING, HTR OTLT HOSE (PART OF 1) |
|
2007-2008 |
|
| 004 |
12575032 |
SEAL, HTR OTLT PIPE (O RING) |
N1 |
2007-2008 |
01 |
| 005 |
12575032 |
SEAL, HTR INL PIPE (O RING) (PART OF 8) |
N1 |
2007-2008 |
01 |
| 006 |
|
FITTING, HTR INL HOSE (PART OF 8) |
|
2007-2008 |
|
| 007 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 8)
|
2007-2008 |
02 |
|
| 008 |
25789366 |
HOSE, HTR INL (INCLS 5-7) |
N153 (06) (LLR, JJA, RHD) (EXPORT) |
2007-2008 |
01 |
| 009 |
12567908 |
FITTING, HTR OTLT HOSE |
N1 |
2007-2008 |
01 |
| 010 |
12575032 |
SEAL, HTR INL PIPE (O RING) (PART OF 11) |
N1 |
2007-2008 |
01 |
| 011 |
12564053 |
PIPE, HTR INL (INCLS 10) |
N1 |
2007-2008 |
01 |
| 012 |
11589241 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (HTR INL PIPE) |
|
2007-2008 |
01 |
