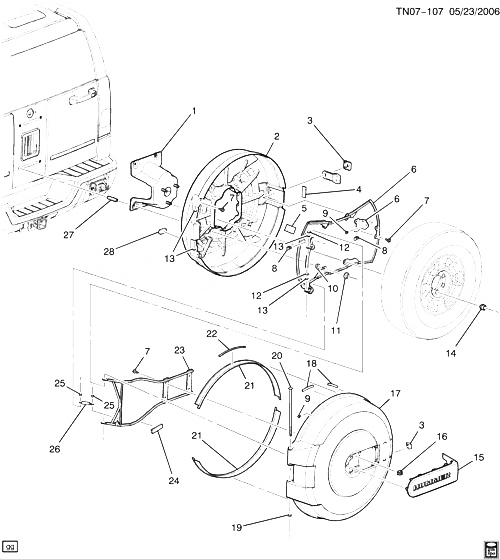

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25925197 |
CARRIER, SPA WHL |
N1 |
2007-2007 |
01 |
| 002 |
|
COVER, SPA WHL STOW INR (*KIT1) |
|
2007-2008 |
|
| 003 |
15793814 |
LATCH, R/CMPT SPA WHL STOW CVR |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
| 004 |
|
PROTECTOR, SPA WHL CARR LAT STRKR (*KIT1) |
|
2007-2008 |
|
| 005 |
|
SPACER, SPA WHL CARR (*KIT1) |
|
2007-2008 |
|
| 006 |
|
HINGE, SPA WHL CARR (*KIT1) |
|
2007-2008 |
|
| 007 |
11516932 |
БОЛТ, HEX HD, W/CON WA, M6X1X25, 9.8, 6138M (SPA WHL STOW RET) (*KIT1, KIT2) |
|
2007-2009 |
07 |
| 008 |
11516372 |
ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (SPA WHL CVR) (*KIT1, KIT2)
|
2007-2009 |
04 |
|
| 009 |
11609462 |
SCREW, M4.2X1.41X13, GMW4205 (SPA WHL CARR LAT) (*KIT1, KIT2) |
|
2007-2009 |
05 |
| 010 |
|
SPACER, SPA WHL STOW BOLT (*KIT1) |
|
2007-2008 |
|
| 011 |
11610206 |
NUT, SPA WHL CARR |
N1 |
2007-2008 |
04 |
| 012 |
|
WASHER, SPA WHL CARR (*KIT1) |
|
2007-2008 |
|
| 013 |
|
SPACER, SPA WHL STOW BOLT (*KIT1) |
|
2007-2008 |
|
| 014 |
09594681 |
NUT, SPA WHL CARR (M12X1.5) (5.813) |
N1 |
2007-2007 |
03 |
| 015 |
15793810 |
EMBLEM, SPA WHL STOW CVR |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
| 016 |
15707256 |
NUT, SPA WHL CARR (M6X1 SPECIAL) (*KIT2) (7.800) |
N153 (06) (HH3, P17) |
2007-2009 |
04 |
| 017 |
|
COVER, SPA WHL STOW (*KIT2) |
|
2007-2008 |
|
| 018 |
|
SEALING STRIP, R/CMPT SPA WHL STOW CVR PNL (*KIT2) |
|
2007-2008 |
|
| 019 |
15707256 |
NUT, SPA WHL CARR (M6X1 SPECIAL) (*KIT3) (7.800) |
N153 (06) (HH3, P17) |
2007-2009 |
04 |
| 020 |
15793807 |
БОЛТ, SPA WHL CARR (*KIT3) |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
| 021 |
|
GUIDE, SPA WHL STOW (*KIT2) |
|
2007-2008 |
|
| 022 |
15935647 |
DEADENER, SPA WHL PKT (*KIT2) |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
| 023 |
|
HINGE, SPA WHL CARR (*KIT2) |
|
2007-2008 |
|
| 024 |
|
DEADENER, SPA WHL PKT CTR (*KIT2) |
|
2007-2008 |
|
| 025 |
16629553 |
ГАЙКА, HFH W/NYLON INSERT M6X1 THD 9 PEOR (SPA WHL CARR) (*KIT2) (10.783) |
|
2007-2009 |
02 |
| 026 |
15911252 |
STOP, SPA WHL (*KIT2) |
N153 (06) |
2007-2007 |
01 |
| 027 |
11517090 |
STUD- STRAIGHT, M10X1.5X62, 10.9, GMW3359, HEX PT W/ADHESIVE (SPA WHL CARR) |
|
2007-2009 |
04 |
| 028 |
|
SPACER, SPA WHL CARR (*KIT1) |
|
2007-2008 |
|
| K01 |
25783245 |
CARRIER, SPA WHL (INCLS COVER ; HINGE) (INCLS 2, 4-10, 12, 13, 28) (PAINT TO MATCH) (INNER) |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
| K02 |
25783246 |
CARRIER, SPA WHL (INCLS COVER ; HINGE) (INCLS 7-9, 16-18, 21-26) (PAINT TO MATCH) (OUTER) |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
| K03 |
25783244 |
BOLT/SCREW KIT, SPA WHL STOW (INCLS 19, 20) |
N153 (06) (HH3, P17) |
2007-2009 |
01 |
