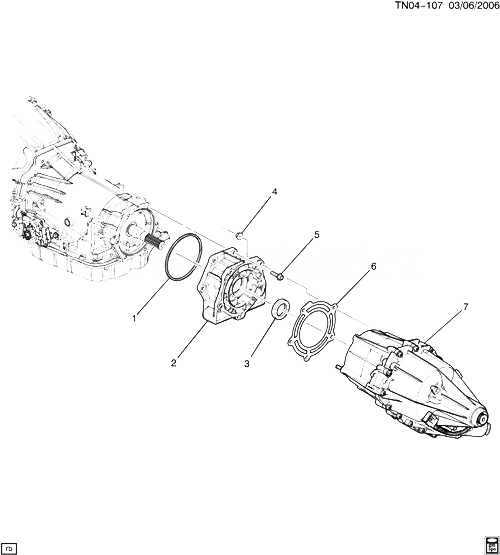

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15969051 |
SEAL, TRFER CASE ADAP (CASE TO ADAPT)
| N1 (M30) |
2006-2008 |
01 |
|
| 002 |
24231140 |
ADAPTER, TRFER CASE (INCLS 3) (INCLS SEAL) |
N1 (NR4, NR6) |
2006-2008 |
01 |
| 003 |
97287358 |
SEAL, TRFER CASE ADAP (PART OF 2) (OD 62.0)
| N1 (M30) |
2006-2008 |
01 |
|
| 004 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) |
|
2006-2010 |
05 |
| 005 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRFER CASE ADAP) (T/W 12345493)
|
2006-2010 |
06 |
|
| 006 |
15642511 |
GASKET, TRFER CASE ADAP
| N1 |
2006-2010 |
01 |
|
| 007 |
|
CASE, TRFER (W/GEARS) (SEE GROUP 04.000 КАРТЕР И КРЫШКИ КОРОБКИ ПЕРЕДАЧ PART 1 ; 2 FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
