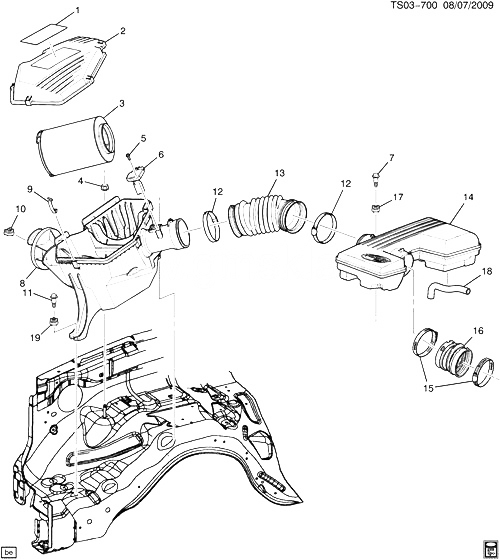

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25813857 |
LABEL, A/C REFRIG WRNG |
N1 (06) (LLR) |
2007-2007 |
01 |
| 002 |
|
COVER, A/CL HSG (PART OF 8) |
|
2007-2007 |
|
| 003 |
|
ELEMENT, A/CL (PART OF 8) |
|
2007-2007 |
|
| 003 |
15202408 |
ELEMENT, A/CL (PART OF 8) (ACDelco #A1624C)
| N1 (LLR) |
2007-2007 |
01 |
|
| 003 |
19160299 |
ELEMENT, A/CL (PART OF 8) (ACDelco #A1624CF) (DURAPACK) (BULK PKG, QTY 6) |
N1 (LLR) |
2007-2007 |
01 |
| 004 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/CL HSG) (8.915) (ACDelco #11514596) |
|
2006-2007 |
01 |
| 005 |
11570690 |
БОЛТ, MASS AIRFLOW SEN |
N1 (06) (LLR) |
2007-2007 |
02 |
| 006 |
15865791 |
ДАТЧИК, MASS AIRFLOW (MASS AIRFLOW SENSOR LABELED 5791 LESS GASKET) (ACDelco #213-4222)
| N1 |
2007-2007 |
01 |
|
| 007 |
11517896 |
БОЛТ, HEX W/FL WA, M6X1X40, 29.53 THD, 17 OD, 9.8, 6280M, MACH, P-PT, CONE-PT (A/CL RESO) |
|
2006-2007 |
04 |
| 008 |
|
CLEANER, AIR (INCLS 2, 3, 9-11) |
|
2007-2007 |
|
| 008 |
25823125 |
CLEANER, AIR (INCLS 2, 3, 9-11)
| N1 (LLR, K18) |
2007-2007 |
01 |
|
| 009 |
15202409 |
CLIP, A/CL HSG (PART OF 8) |
N1 (LLR) |
2007-2007 |
03 |
| 010 |
15123626 |
INSULATOR, A/CL HSG (PART OF 8) |
N1 (LLR) |
2007-2007 |
01 |
| 011 |
15290376 |
БОЛТ, A/CL HSG (PART OF 8) |
N1 (06) (LLR, K18) |
2007-2007 |
02 |
| 012 |
15202421 |
CLAMP, A/CL OTLT DUCT (PART OF 13) (90-110 DIA-LOCATION ON DUCT) (3.417) |
N1 (06) (LLR) |
2007-2007 |
02 |
| 012 |
15202421 |
CLAMP, A/CL OTLT DUCT (PART OF 13) (90-110 DIA-LOCATION ON DUCT) |
N1 (06) (LLR) |
2007-2007 |
02 |
| 013 |
15088285 |
DUCT, A/CL OTLT (INCLS 12) |
N1 (06) (LLR) |
2007-2007 |
01 |
| 014 |
10397251 |
RESONATOR, A/CL (INCLS 15-18) |
N153 (06) (JJA) |
2007-2007 |
01 |
| 016 |
15202417 |
DUCT, A/CL RESO OTLT (PART OF 14) |
N1 (LLR) |
2007-2007 |
01 |
| 017 |
|
INSULATOR, A/CL RESO (PART OF 14) |
|
2006-2007 |
|
| 018 |
15123628 |
HOSE, PCV (PART OF 14) |
N1 (LLR) |
2007-2007 |
01 |
