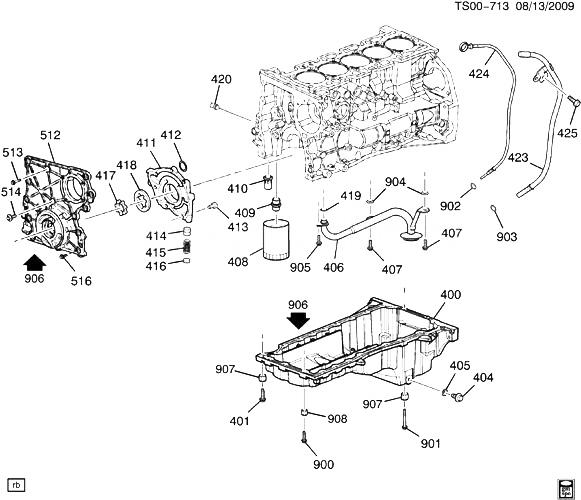

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 400 |
12600497 |
PAN, OIL (INCLS 401, 404, 405, 900, 901, 907, 908) (INCLS PAN, PLUG, SEAL, RETAINERS, BOLTS, ) |
N1 (LLR) |
2007-2010 |
01 |
| 401 |
11588364 |
БОЛТ, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 400)
|
2007-2010 |
18 |
|
| 404 |
11562588 |
PLUG, OIL PAN DRN (PART OF 400) (INCLS 405) (W/ SEAL) (EXC MAGNET)
| N1 (LLR) |
2007-2010 |
01 |
|
| 405 |
12616850 |
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 404) |
N1 (LLR) |
2007-2010 |
01 |
| 406 |
12588480 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS BOLTS, SEAL, RETAINER, PIPE, BRACKETS, FLANGE) (INCLS 407, 419, 904, 905) |
N1 (LLR) |
2007-2010 |
01 |
| 407 |
11517692 |
BOLT-HFH, M6X1X25, 21.5 THD, 14.2 OD, 9.8, 6280M, MACH, 6124M, HDR-PT (PART OF 406) |
|
2007-2010 |
02 |
| 408 |
89017342 |
ФИЛЬТР, МАСЛЯНЫЙ (FOR NON-CANADIAN ORDERS) (ACDelco #89017342) |
N1 (LLR) |
2007-2010 |
01 |
| 409 |
24575062 |
FITTING, OIL FLTR |
N1 (LLR) |
2007-2010 |
01 |
| 410 |
25014612 |
VALVE, OIL FLTR BYPASS (W/O VAPOR SEPARATOR) (OPENING PRESSURE 21 PSI NOMINAL) (PART HAS A 16.10MM MAX OD ; FITS A 15.84 HOLE IN BLOCK) |
N1 (LLR) |
2007-2010 |
01 |
| 411 |
|
COVER, O/PMP (PART OF 512) |
|
2007-2010 |
|
| 412 |
24576940 |
SEAL, ENG FRT CVR (PART OF 512) |
N1 (LLR) |
2007-2010 |
01 |
| 413 |
24577281 |
БОЛТ, O/PMP (M6X1.0X23 THD..MATL:GM500M (9.8)STEEL..FINISH:PER GM4435M, CODE G.) (PART OF 512) |
N1 (LLR) |
2007-2010 |
07 |
| 414 |
|
VALVE, OIL PRESS RLF (PART OF 512) |
|
2007-2010 |
|
| 415 |
24100119 |
SPRING, OIL PRESS RLF VLV (PART OF 512) |
N1 (LLR) |
2007-2010 |
01 |
| 416 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 512) |
|
2007-2010 |
|
| 417 |
|
GEAR, O/PMP DRVN (PART OF 512) |
|
2007-2010 |
|
| 418 |
|
GEAR, O/PMP DRV (PART OF 512) |
|
2007-2010 |
|
| 419 |
12575550 |
SEAL, O/PMP SUC PIPE (PART OF 406)
| N1 (LLR) |
2007-2010 |
01 |
|
| 420 |
12611588 |
SWITCH, ENG OIL PRESS (ACDelco #D1843A) |
N1 |
2007-2010 |
01 |
| 423 |
12590590 |
TUBE, OIL LVL IND (INCL:SEAL) (INCLS 903)
| N1 (LLR) |
2007-2010 |
01 |
|
| 424 |
12580811 |
INDICATOR, OIL LVL (INCLS 902) |
N1 (LLR) |
2007-2010 |
01 |
| 425 |
11517516 |
БОЛТ, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (OIL LVL IND TUBE) |
|
2007-2010 |
01 |
| 512 |
12601932 |
COVER, ENG FRT (W/OIL PMP) (INCLS SEAL (FRT CVR), GEARS, PLUG AND RELIEF VALVE) (INCLS 411-418, 513, 516) |
N1 (LLR) |
2007-2010 |
01 |
| 513 |
11588718 |
БОЛТ, ENG FRT CVR (-HFH, M6X1X50, 22.7 THD, 14.2 OD, 8.8, GMW3359, MAT PT) (PART OF 512) (HFH, M6X1X50, 18 THD) |
N1 (LLR) |
2007-2010 |
02 |
| 514 |
11609422 |
БОЛТ, ENG FRT CVR (M5X0.5X17.4, 14.2 OD, 9.8, GW3359, M-POINT) |
N1 (LLR) |
2007-2010 |
01 |
| 516 |
11519038 |
BOLT-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (PART OF 512)
|
2007-2010 |
11 |
|
| 900 |
11519886 |
БОЛТ, HFH, M6X1X28, 24.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PTPT (PART OF 400) |
|
2007-2010 |
03 |
| 901 |
11588719 |
БОЛТ, HFH, M6X1X60, 18MM THD, 14.2 O.D., 8.8, 3359GMW (PART OF 400) |
|
2007-2010 |
02 |
| 902 |
24504091 |
SEAL, OIL LVL IND (O RING) (PART OF 424) (BLACK) (6.07MM ID, 1.78MM DIA) |
N1 (LLR) |
2007-2010 |
01 |
| 903 |
24504091 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 423) (BLACK) (6.07MM ID, 1.78MM DIA) |
N1 (LLR) |
2007-2010 |
01 |
| 904 |
14093869 |
NUT, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 406) |
|
2007-2010 |
02 |
| 905 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 406)
|
2007-2010 |
01 |
|
| 906 |
12378521 |
SEALANT, RTV (150G) (OIL PAN)
|
2007-2010 |
AR |
|
| 907 |
|
RETAINER, OIL PAN BOLT (PART OF 400) |
|
2007-2010 |
|
| 908 |
11518792 |
RETAINER, OIL PAN BOLT (PART OF 400) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) |
N1 (LLR) |
2007-2010 |
02 |
