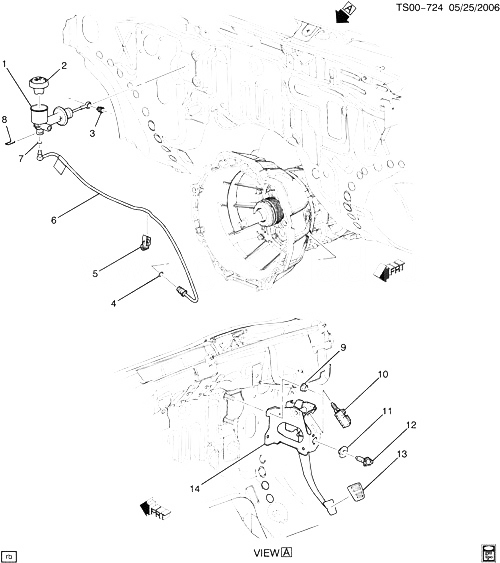

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25805725 |
CYLINDER, CLU MAS (INCLS 2-8) (SERV T/W 25805726/HOSE) |
N1 (MA5, RHD) (EXPORT) |
2007-2007 |
01 |
| 002 |
|
CAP, CLU M/CYL RSVR (PART OF 1) |
|
2007-2007 |
|
| 003 |
|
BUSHING, CLU M/CYL PUSH ROD (PART OF 1) |
|
2007-2007 |
|
| 004 |
|
SEAL, CLU ACTR CYL (O RING) (PART OF 1) |
|
2007-2007 |
|
| 005 |
|
RETAINER, CLU M/CYL RSVR (PUSH IN) (PART OF 1) |
|
2007-2007 |
|
| 006 |
|
PIPE, CLU ACTR CYL (PART OF 1) |
|
2007-2007 |
|
| 007 |
|
SEAL, CLU ACTR CYL (O RING) (PART OF 1) |
|
2007-2007 |
|
| 008 |
|
RETAINER, CLU M/CYL RSVR (PUSH IN) (PART OF 1) |
|
2007-2007 |
|
| 009 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (CLU PED BRKT) (8.915) (ACDelco #11514596) |
|
2007-2007 |
04 |
| 010 |
15101582 |
SWITCH, CLU PED POSN (PART OF 14) (ACDelco #D2261C) |
N1 (MA5) |
2007-2007 |
01 |
| 011 |
10418917 |
RETAINER, CRCONT REL SW (PART OF 14) |
N1 |
2007-2007 |
01 |
| 012 |
22620887 |
SWITCH, CRCONT REL (PART OF 14) (TO BRK PEDAL) (ACDelco #D1596F) |
N1 (MA5) |
2007-2007 |
01 |
| 013 |
15108399 |
PAD, CLU PED (PART OF 14) |
N1 (MA5) |
2007-2007 |
01 |
| 014 |
15815970 |
PEDAL, CLU (W/BRKT) (INCLS 10-13) |
N1 (LLR, MA5, RHD) (EXPORT) |
2007-2007 |
01 |
