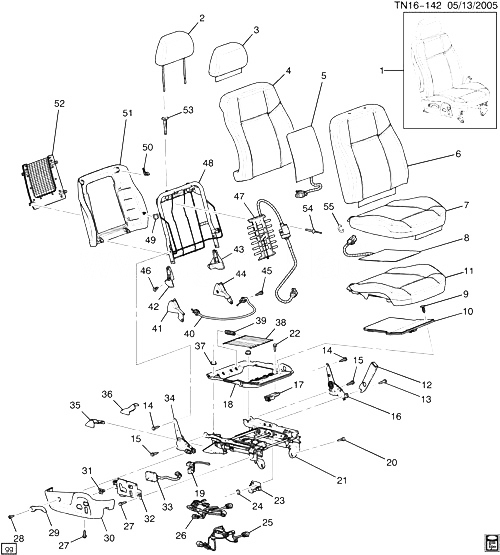

(TN16-142) - 2006-2009 N1 СИДЕНЬЕ ПАССАЖИРА/BUCKET 3 TRIMS (AG2) HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25774599 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N153 (06) (AG2, AR9, KA1, 195) 2006-2006 01
002 PAD, P/SEAT H/RST (PART OF 3) 2006-2009
003 15815932 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) (INCLS PAD ; COVER) N153 (06) (AG2, AR9, KA1, 193) 2006-2006 01
003 15815933 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) (INCLS PAD ; COVER) N153 (06) (AG2, AR9, KA1, 313) 2006-2006 01
003 15815934 RESTRAINT, P/SEAT HD (INCLS 2) (MOROCCO) (INCLS PAD ; COVER) N153 (06) (AG2, AR9, KA1, 423) 2006-2006 01
004 10388085 PAD, P/SEAT BK CUSH N1 (AR9) 2006-2009 01
005 15846589 HEATER, P/SEAT BK CUSH (INCL SERVICEABLE HELAG HTR CONT MODULE 15846630) N153 (06) 2006-2009 01
006 10399818 COVER, P/SEAT BK CUSH (EBONY) N153 (06) (AG2, AR9, KA1, 193) 2006-2006 01
006 10399819 COVER, P/SEAT BK CUSH (CASHMERE) N153 (06) (AG2, AR9, KA1, 313) 2006-2006 01
006 10399820 COVER, P/SEAT BK CUSH (MOROCCO) N153 (06) (AG2, AR9, KA1, 423) 2006-2006 01
007 10399830 COVER, P/SEAT CUSH (EBONY) N153 (06) (AG2, AR9, KA1, 193) 2006-2006 01
007 10399831 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AG2, AR9, KA1, 313) 2006-2006 01
007 10399832 COVER, P/SEAT CUSH (MOROCCO) N153 (06) (AG2, AR9, KA1, 423) 2006-2006 01
008 15846581 HEATER, P/SEAT CUSH (INCL SERVICEABLE HELAG HTR CONT MODULE 15846630) (BUILT W/MALE CONNECTOR) (FOR 2ND DES SEE 25810340) N153 (06) (AG2, AR9, KA1) (1ST DES) 2006-2006 01
008 25810340 HEATER, P/SEAT CUSH (INCL SERVICEABLE HELAG HTR CONT MODULE 15846630) (ELEMENT) (BUILT W/ FEMALE CONNECTOR) (FOR 1ST DES SEE 15846581) N153 (06) (AG2, AR9, KA1) (2ND DES) 2006-2006 01
009 RETAINER, INFL RST FRT PASS PRESENCE (*KIT1) 2006-2009
010 ДАТЧИК, INFL RST FRT PASS PRESENCE (*KIT1) 2006-2009
011 PAD, P/SEAT CUSH (*KIT1) 2006-2009
012 19209036 РЕМЕНЬ, P/SEAT (BKL SI) (EBONY) N1 (193, 313, 423) 2006-2009 01
013 11561336 БОЛТ, P/SEAT BELT (BKL SI) (M12X1.75X31.5, 26 THD) (14.875) N153 (06) 2006-2006 01
014 12474329 БОЛТ, P/SEAT RECL (M8X1.25X30) (16.679) N1 2006-2009 AR
015 89042772 БОЛТ, F/SEAT (PANEL SIDE) (M8X1.25X28) (16.682) N1 2006-2009 08
016 12377886 RECLINER, P/SEAT INR (NON-DUMP) N1 2006-2009 01
017 MODULE, INFL RST P/SEAT SUPPRESSION (*KIT1) 2006-2009
018 25971448 FRAME, P/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) N153 (06) (AG2, AR9, KA1) 2006-2006 01
019 25810336 SWITCH, P/SEAT LUMBAR CONT (EBONY) (INCLS HEATER SWITCH) N1 (AG2, AR9, KA1) 2006-2009 01
020 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) 2006-2009 AR
021 25885646 ADJUSTER, P/SEAT N1 (AG2, AR9) 2006-2009 01
022 19151707 БОЛТ, P/SEAT INFL RST SUPPRESSION MDL (M4.2X1.41X16 8 OD) N1 2006-2007 02
023 89027041 ДАТЧИК, F/SEAT HORIZ ADJR POSN (EBONY) (INCLUDES BRACKET) (POWER SEATS) N1 (AG1, AG2) 2006-2009 02
024 89039182 NUT, F/SEAT ADJR TRK (HEX FLG LOCK) (16.679) N1 2006-2009 02
025 10388171 HARNESS, P/SEAT ADJR WRG N153 (06) (AG2, AR9, KA1) 2006-2007 01
026 10388171 HARNESS, P/SEAT WRG (16.682) N153 (06) (AG2, AR9, KA1) 2006-2006 01
027 15252122 БОЛТ, P/SEAT (RECLINER CUSHION) N153 (06) (AR9) (EXC RHD) 2006-2007 04
028 15208539 БОЛТ, P/SEAT RECL HDL (M4.2X1.4X20) (16.715) N1 2006-2009 AR
029 89041700 HANDLE, P/SEAT RECL (EBONY) (DOUBLE D RECL HANDLE) (O/B) N1 (AR9) 2006-2009 01
030 15254771 COVER, P/SEAT ADJR FIN (INCLS 31) (EBONY) (USED ON LEATHER SEATS) (16.720) N1 (AG2, AR9) 2006-2009 01
031 RETAINER, P/SEAT CUSH (PART OF 30) 2006-2009
032 89041630 BEZEL, P/SEAT ADJR SW (EBONY) N1 2006-2009 01
033 89026978 SWITCH, P/SEAT ADJR (EBONY) (W/HEAT) N1 (AG2, AR9, KA1) 2006-2009 01
034 89039103 RECLINER, P/SEAT OTR (NON-DUMP) N1 (AR9) 2006-2009 01
035 25906913 COVER, P/SEAT OTR ADJR FIN N1 (AG2) 2006-2009 01
036 25906912 COVER, P/SEAT INR ADJR FIN N1 (06) (AG2) 2006-2009 01
037 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2006-2009 04
038 89027021 SPRING, P/SEAT CUSH PAD SUPT WIRE N1 2006-2009 01
039 15692668 SPRING, P/SEAT CUSH PAD SUPT N1 2006-2009 04
040 89042785 CABLE, P/SEAT RECL ACTR N1 2006-2009 01
041 10399318 COVER, P/SEAT OTR ADJR FRT FIN (EBONY) N1 2006-2009 01
042 10399307 COVER, P/SEAT OTR RECL FIN (EBONY) N1 2006-2009 01
043 10399304 COVER, P/SEAT INR RECL FIN (EBONY) (16.165) N1 2006-2009 01
044 10399315 COVER, P/SEAT INR ADJR FRT FIN (EBONY) N1 2006-2009 01
045 12493072 БОЛТ, P/SEAT (RECLINER CABLE) (M4.2X1.41X12.7) (14.875) N153 (06) 2006-2009 AR
047 88934562 SUPPORT, P/SEAT LUMBAR (2-WAY POWER) N1 (AG2, AR9) 2006-2009 01
048 10388082 FRAME, P/SEAT BK CUSH N1 2006-2009 01
049 15252123 RETAINER, P/SEAT CUSH (PART OF 51) (COVER) N1 2006-2009 02
049 89039183 RETAINER, P/SEAT CUSH (PART OF 51) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
050 15252123 RETAINER, P/SEAT CUSH (PART OF 51) (COVER) N1 2006-2009 02
050 89039183 RETAINER, P/SEAT CUSH (PART OF 51) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
051 15815905 PANEL, P/SEAT BK CUSH FIN (INCLS 49, 50) N1 2006-2009 01
052 15875355 POCKET, P/SEAT BK CUSH MAP (EBONY) N1 2006-2009 01
053 10399280 SUPPORT, P/SEAT H/RST (EBONY) (SLAVE) N1 (19I) 2006-2009 01
053 10399280 SUPPORT, P/SEAT H/RST (EBONY) (SLAVE) N1 (31I) 2006-2009 01
053 10399292 SUPPORT, P/SEAT H/RST (EBONY) (MASTER) (LOCKING) N1 (19I) 2006-2009 01
053 19122097 SUPPORT, P/SEAT H/RST (CASHMERE) (SLAVE) N1 (31I) 2006-2009 01
053 19122098 SUPPORT, P/SEAT H/RST (CASHMERE) (MASTER) (LOCKING) N1 (31I) 2006-2009 01
054 12548913 RIVET, P/SEAT LUMBAR SUPT (3/16) (16.682) N153 (06) 2006-2009 02
055 89046281 RING, F/SEAT CUSH CVR HOG (15.035) N153 2006-2009 AR
K01 15299598 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 9-11, 17) (POWER) (W/PAD) N153 (06) (AR9, AG2, KA1) 2006-2009 01
