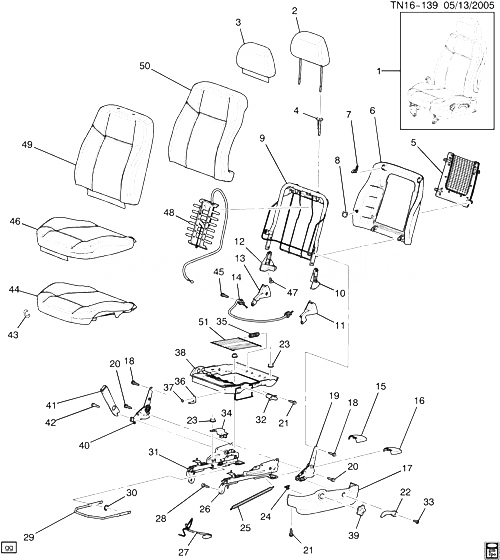

(TN16-139) - 2006-2009 N1 СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET J TRIMS (EXC AG1) HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, DRVR (INCLS 2-51) (ONLY AVAILABLE FOR CURRENT MODEL VEHICLES) 2006-2006
002 15815936 RESTRAINT, D/SEAT HD (INCLS 3) (EBONY) (INCLS PAD ; COVER) N153 (06) (AR9, 19J) 2006-2006 01
002 15815937 RESTRAINT, D/SEAT HD (INCLS 3) (CASHMERE) (INCLS PAD ; COVER) N153 (06) (AR9, 31J) 2006-2006 01
002 15815938 RESTRAINT, D/SEAT HD (INCLS 3) (GREEN) (INCLS PAD ; COVER) N153 (06) (AR9, 32J) 2006-2006 01
003 COVER, D/SEAT H/RST (PART OF 2) 2006-2009
004 10399280 SUPPORT, D/SEAT H/RST (EBONY) (SLAVE) N1 (19I) 2006-2009 01
004 10399280 SUPPORT, D/SEAT H/RST (EBONY) (SLAVE) N1 (31I) 2006-2009 01
004 10399292 SUPPORT, D/SEAT H/RST (EBONY) (MASTER) (LOCKING) N1 (19I) 2006-2009 01
004 19122097 SUPPORT, D/SEAT H/RST (CASHMERE) (SLAVE) N1 (31I) 2006-2009 01
004 19122098 SUPPORT, D/SEAT H/RST (CASHMERE) (MASTER) (LOCKING) N1 (31I) 2006-2009 01
005 15875355 POCKET, D/SEAT BK CUSH MAP (EBONY) N1 2006-2009 01
006 15815905 PANEL, D/SEAT BK CUSH FIN (INCLS 7, 8) N1 2006-2009 01
007 RETAINER, D/SEAT CUSH (PART OF 6) 2006-2009
008 RETAINER, D/SEAT CUSH (PART OF 6) 2006-2009
009 10388082 FRAME, D/SEAT BK CUSH N1 2006-2009 01
010 10399318 COVER, D/SEAT OTR ADJR FRT FIN (EBONY) N1 2006-2009 01
011 10399307 COVER, D/SEAT OTR RECL FIN (EBONY) N1 2006-2009 01
012 10399315 COVER, D/SEAT INR ADJR FRT FIN (EBONY) N1 2006-2009 01
013 10399304 COVER, D/SEAT INR RECL FIN (EBONY) (16.165) N1 (RHD) (EXPORT) 2006-2009 01
013 19121875 COVER, D/SEAT INR RECL FIN (CASHMERE) (INBOARD) N1 (31I) 2006-2009 01
014 89042785 CABLE, D/SEAT RECL ACTR N1 2006-2009 01
015 15264927 COVER, D/SEAT INR ADJR FIN (MANUAL) N1 (EXC AG1) 2006-2009 01
016 15264930 COVER, D/SEAT OTR ADJR FIN (EBONY) (W/SNAP FEATURE) N1 (EXC AG1) 2006-2009 01
017 15252129 COVER, D/SEAT ADJR FIN (INCLS 24) (EBONY) (MANUAL) (16.720) N1 2006-2009 01
018 12474329 БОЛТ, D/SEAT RECL (M8X1.25X30) (16.679) N1 2006-2009 AR
019 89039091 RECLINER, D/SEAT OTR (NON-DUMP) N1 2006-2009 01
020 89042772 БОЛТ, F/SEAT (PANEL SIDE) (M8X1.25X28) (16.682) N1 2006-2009 08
021 15252122 БОЛТ, D/SEAT (RECLINER CUSHION) N1 (AR9) (EXC RHD) 2006-2009 04
022 89041697 HANDLE, D/SEAT RECL (EBONY) N1 (EXC RHD) 2006-2009 01
023 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (D/SEAT ADJR) 2006-2009 04
024 RETAINER, D/SEAT CUSH (PART OF 17) 2006-2009
025 89041466 SPRING, D/SEAT ADJR RTN N1 2006-2009 01
026 10388137 ADJUSTER, D/SEAT OTR (MANUAL, 2-WAY) N1 2006-2009 01
027 10388160 HARNESS, D/SEAT POSN SEN WRG N153 (06) (AR9) 2006-2006 01
028 11609756 BOLT M12X1.75X35 (D/SEAT) 2006-2009 04
029 89041467 BAR, D/SEAT INR ; OTR ADJR TIE N1 2006-2009 01
030 15252125 NUT, D/SEAT (TOWEL BAR) N1 2006-2009 02
031 89041464 ADJUSTER, D/SEAT INR (MANUAL, 2-WAY) N1 2006-2009 01
032 12479591 ACTUATOR, D/SEAT LUMBAR SUPT N1 2006-2009 01
033 15208539 БОЛТ, D/SEAT RECL HDL (M4.2X1.4X20) (16.715) N1 (06) 2006-2009 01
034 19121283 ДАТЧИК, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) N1 (EXC AG1, AG2) 2006-2009 02
035 15692668 SPRING, D/SEAT CUSH PAD SUPT N1 2006-2009 04
036 10388158 BRACKET, D/SEAT ADJR (PART OF 38) N1 2006-2009 01
037 15815939 RIVET, D/SEAT CUSH FRM N1 2006-2009 01
038 10388123 FRAME, D/SEAT CUSH (INCLS 36) (MANUAL) (W/O 3 HOLES FOR HARN. PUSH PINS, CLIP CONNECTOR) N1 (EXC AG1) 2006-2006 01
039 89042211 KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) N1 2006-2009 01
040 12377517 RECLINER, D/SEAT INR (NON-DUMP) N1 2006-2009 01
041 19177446 РЕМЕНЬ, D/SEAT (BKL SI) (INCLS 42) (EBONY) N1 (19J, 193, 313) 2006-2009 01
042 БОЛТ, D/SEAT BELT (BKL SI) (PART OF 41) 2006-2009
043 89046281 RING, F/SEAT CUSH CVR HOG (15.035) N153 2006-2009 AR
044 10388139 PAD, D/SEAT CUSH N153 (06) (AR9) (EXC AG1) 2006-2008 01
045 12493072 БОЛТ, D/SEAT (RECLINER CABLE) (M4.2X1.41X12.7) (14.875) N1 (AR9) 2006-2009 04
046 10399319 COVER, D/SEAT CUSH (CASHMERE) N153 (06) (AR9, 31J) 2006-2006 01
046 10399321 COVER, D/SEAT CUSH (EBONY) N153 (06) (AR9, 19J) 2006-2006 01
047 15252123 RETAINER, D/SEAT CUSH (COVER) N1 (06) 2006-2009 02
048 12479577 SUPPORT, D/SEAT LUMBAR (MANUAL) (PLASTIC LUMBAR-CABLE ROUTES FROM BOTTOM OF LUMBAR BASKET) N1 (AR9) 2006-2009 01
049 10399308 COVER, D/SEAT BK CUSH (CASHMERE) N153 (06) (AR9, 31J) 2006-2006 01
049 10399309 COVER, D/SEAT BK CUSH (GREEN) N153 (06) (AR9, 32J) 2006-2006 01
049 10399310 COVER, D/SEAT BK CUSH (EBONY) N153 (06) (AR9, 19J) 2006-2006 01
050 10388084 PAD, D/SEAT BK CUSH N1 2006-2009 01
051 89027021 SPRING, D/SEAT CUSH PAD SUPT WIRE N153 (06) 2006-2009 01
