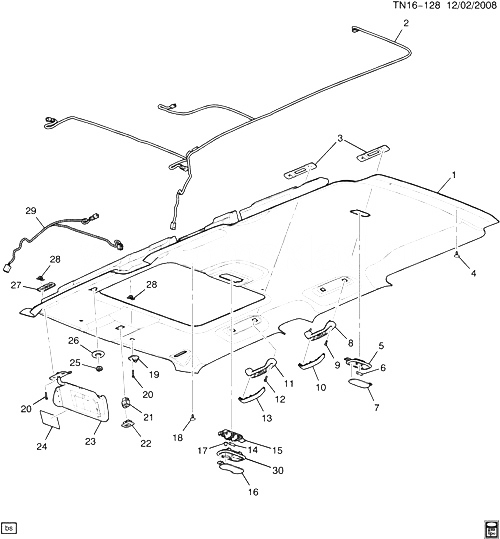

(TN16-128) - 2006-2008 N1 ОТДЕЛКА-ИНТЕРЬЕР-ROOF (CF5) HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15829762 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (FULL CONTENTED HEADLINER) N153 (06) (CF5, DH6, UG1, YC3, 27I) (EXC ASF, UE1) 2006-2006 01
001 15871347 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (FULL CONTENTED HEADLINER) N153 (06) (CF5, UE1, YC0, YC3, 27I) (EXC ASF, DH6, UG1) 2006-2006 01
001 15933260 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (ASF, CF5, DH6, UG1, YC0, YC3, 19I) (EXC UE1) 2006-2006 01
001 15933261 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (ASF, CF5, DH6, UG1, YC0, YC3, 27I) (EXC UE1) 2006-2006 01
001 15933263 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, DH6, UG1, YC0, YC3, 19I) (EXC ASF, UE1) 2006-2006 01
001 15933264 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, DH6, UG1, YC0, YC3, 27I) (EXC ASF, UE1) 2006-2006 01
001 15933272 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (LESS VISOR ; HANDLE) N153 (06) (ASF, CF5, YC0, YC3, 19I) (EXC BRM, DH6, RHD, UE1, UG1) 2006-2007 01
001 15933273 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (ASF, CF5, YC0, YC3, 27I) (EXC DH6, UE1, UG1) 2006-2006 01
001 15933275 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, YC0, YC3, 19I) (EXC ASF, DH6, UE1, UG1) 2006-2006 01
001 15933276 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, YC0, YC3, 27I) (EXC ASF, DH6, UE1, UG1) 2006-2006 01
001 15933282 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, UE1, YC0, YC3, 27I) (EXC ASF, DH6, UG1) 2006-2006 01
001 15933296 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, UE1, YC0, YC3, 19I) (EXC ASF, DH6, UG1) 2006-2006 01
001 15933299 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (ASF, CF5, UE1, YC0, YC3, 19I) (EXC DH6, UG1) 2006-2006 01
001 15933300 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (ASF, CF5, UE1, YC0, YC3, 27I) (EXC DH6, UG1) 2006-2006 01
001 15933302 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, DH6, UE1, UG1, YC0, YC3, 19I) (EXC ASF) 2006-2006 01
001 15933303 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLINER) N153 (06) (CF5, DH6, UE1, UG1, YC0, YC3, 27I) (EXC ASF) 2006-2006 01
001 15933305 PANEL, HDLNG TR (INCLS 2-30) (GRAY) (SERVICE SUBSTRATE HEADLINER) N153 (06) (ASF, CF5, DH6, UE1, UG1, YC0, YC3, 19I) 2006-2006 01
001 15933306 PANEL, HDLNG TR (INCLS 2-30) (CASHMERE) (SERVICE SUBSTRATE HEADLIINER) N153 (06) (ASF, CF5, DH6, UE1, UG1, YC0, YC3, 27I) (EXC BRM, RHD) 2006-2007 01
002 HARNESS, DM LP WRG (PART OF 1) 2006-2008
003 14093869 NUT, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 1) 2006-2010 03
004 11517992 RETAINER, PUSH-IN TYPE, M35 DIA, 22MM LENGTH, 6.35 HOLE NYLON (PART OF 1) 2006-2010 04
005 15113878 LAMP, DM (PART OF 1) (INCLS 6, 7) (GRAY) N153 (06) (19I) 2006-2010 01
005 15296735 LAMP, DM (PART OF 1) (INCLS 6, 7) (CASHMERE) N153 (06) (27I) 2006-2010 01
006 09431808 BULB, TRADE # 211-2 (PART OF 1, 5) (ACDelco #L211-2) 2006-2010 01
007 88892575 LENS, DM LP (REAR/CARGO) (PART OF 1, 5) (ONE BULB STYLE) N153 (06) 2006-2008 01
008 15281856 HANDLE, R/RL RR ASST (PART OF 1) (INCLS 9, 10) (GRAY) N153 (06) (YC0, YC3, 19I) 2006-2009 02
008 15296745 HANDLE, R/RL RR ASST (PART OF 1) (INCLS 9, 10) (CASHMERE) N153 (06) (YC0, YC3, 27I) (EXC BRM, RHD) 2006-2009 02
009 11518944 SCREW, PAN HD, M6X1X25, 20.9 THD, 11 OD, 8.8, GMW3359, 6 LOBED T-30 M-POINT (PART OF 1, 8) (8.913) 2006-2010 04
010 COVER, R/RL RR ASST HDL HOLE (PART OF 1, 8) 2006-2008
011 15281856 HANDLE, R/RL FRT ASST (PART OF 1) (INCLS 12, 13) (GRAY) N153 (06) (YC0, YC3, 19I) 2006-2010 01
011 15296745 HANDLE, R/RL FRT ASST (PART OF 1) (INCLS 12, 13) (CASHMERE) N153 (06) (YC0, YC3, 27I) (EXC BRM) 2006-2010 01
012 БОЛТ, R/RL FRT ASST HDL BRKT (RPR) (PART OF 1, 11) 2006-2008
013 COVER, R/RL RR ASST HDL HOLE (PART OF 1, 11) 2006-2008
014 12450074 BULB, TRADE #578 (PART OF 1, 15) (ACDelco #578) 2006-2010 03
015 15296734 LAMP, DM ; RDG (PART OF 1) (INCLS 14, 16, 17, 30) (CASHMERE) N1 (27I) 2006-2010 01
015 25965486 LAMP, DM ; RDG (PART OF 1) (INCLS 14, 16, 17, 30) (GRAY) N1 (19I) 2006-2010 01
016 15774270 LENS, DM LP (FRONT/READING) (PART OF 1, 15) N153 (06) 2006-2008 01
017 15166059 SWITCH, DM LP (PART OF 1, 15) (EBONY) N1 2006-2010 02
018 11517992 RETAINER, PUSH-IN TYPE, M35 DIA, 22MM LENGTH, 6.35 HOLE NYLON (PART OF 1) 2006-2010 04
019 15272047 SUPPORT, S/S (PART OF 1) (GRAY) N153 (06) (YC0, YC3, 19I, 27I) 2006-2010 02
019 15296740 SUPPORT, S/S (PART OF 1) (CASHMERE) N153 (06) (YC0, YC3, 27I) 2006-2010 02
020 11610271 SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (PART OF 1) 2006-2010 06
021 15144894 SWITCH, SUN RF (PART OF 1) (GRAY) N153 (06) (CF5, 19I) 2006-2006 01
021 15296736 SWITCH, SUN RF (PART OF 1) (CASHMERE) N153 (06) (CF5, 27I) 2006-2006 01
022 15254645 BEZEL, SUN RF SW (PART OF 1) (GRAY) N153 (06) (CF5, 19I) 2006-2006 01
022 15296737 BEZEL, SUN RF SW (PART OF 1) (CASHMERE) N153 (06) (CF5, 27I) 2006-2006 01
023 15296723 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (GRAY) N153 (06) (ASF, DH6, YC0, YC3, 19I, 27I) (EXC BRM, RHD) 2006-2010 01
023 15296724 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (CASHMERE) N153 (06) (DH6, UG1, YC0, 27I) (EXC BRM, RHD) 2006-2010 01
023 15296725 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (GRAY) N153 (06) (DH6, UG1, YC0, YC3, 19I) (EXC BRM, RHD) 2006-2010 01
023 15296726 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (CASHMERE) N153 (06) (DH6, UG1, YC3, 27I) 2006-2010 01
023 15296729 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (GRAY) N153 (06) (YC0, YC3, 19I) (EXC BRM, DH6, UG1) 2006-2010 01
023 15296730 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (CASHMERE) N153 (06) (YC0, YC3, 27I) (EXC DH6, UG1) 2006-2010 01
023 15833741 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (GRAY) N153 (06) (YC0, YC3, 19I) (EXC BRM, DH6, UG1) 2006-2010 01
023 15833742 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 1) (INCLS 24) (CASHMERE) N153 (06) (YC0, YC3, 27I) (EXC DH6, UG1) 2006-2010 01
024 15006352 LABEL, INFL RST SYS WRNG (PART OF 1, 23) (ENGLISH/FRENCH) N1 2006-2010 02
024 15114992 LABEL, INFL RST SYS WRNG (PART OF 1, 23) (ENGLISH/ARABIC) N153 (VBX) (EXPORT) 2006-2007 02
024 15116388 LABEL, INFL RST SYS WRNG (PART OF 1, 23) (ENGLISH/SPANISH) N1 2006-2010 02
025 15264477 MICROPHONE, MOBILE TEL (PART OF 1) (GRAY) N1 (19I) 2006-2010 01
025 15781014 MICROPHONE, MOBILE TEL (PART OF 1) (CASHMERE) N1 (27I) 2006-2010 01
026 15296747 BEZEL, MOBILE TEL MIC (PART OF 1) (CASHMERE) N1 (UE1, YC0, YC3, 27I) 2006-2010 01
026 22666403 BEZEL, MOBILE TEL MIC (PART OF 1) (GRAY) N1 (UE1, YC0, YC3, 19I) 2006-2010 01
027 SPACER, S/S (PART OF 1) 2006-2008
028 15296732 CLIP, S/S SUPT (PART OF 1) N153 (06) 2006-2010 02
029 WIRE, SUN RF SW (PART OF 1) 2006-2008
030 15032587 HOUSING, DM ; RDG LP (PART OF 1, 15) N1 2006-2009 01
