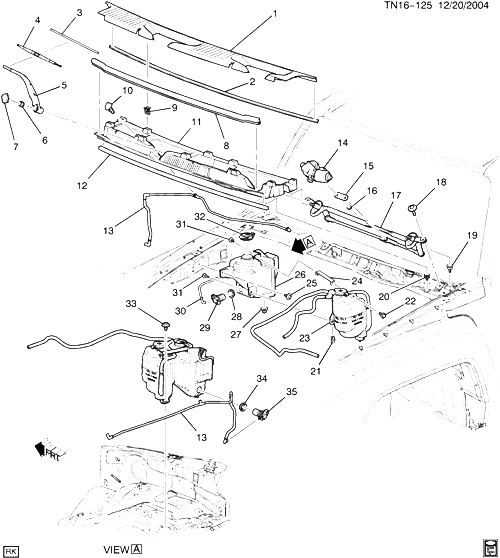

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15840842 |
PANEL, AIR INL GRL (UPR) (PAINT TO MATCH) (INCLS 2, 19)
| N1 |
2006-2006 |
01 |
|
| 002 |
|
SEALING STRIP, AIR INL UPR (PART OF 1) |
|
2006-2006 |
|
| 003 |
10389555 |
WIPER, W/S (PART OF 4)
| N1 |
2006-2006 |
01 |
|
| 003 |
10389556 |
WIPER, W/S (PART OF 4) |
N1 |
2006-2006 |
01 |
| 004 |
10389562 |
BLADE, WSW (INCLS 3)
| N1 |
2006-2006 |
01 |
|
| 004 |
10389563 |
BLADE, WSW (INCLS 3)
| N1 |
2006-2006 |
01 |
|
| 005 |
10389560 |
ARM, WSW
| N1 |
2006-2006 |
01 |
|
| 005 |
10389561 |
ARM, WSW |
N1 |
2006-2006 |
01 |
| 006 |
11609634 |
ГАЙКА, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM)
|
2006-2006 |
02 |
|
| 007 |
10341324 |
CAP, WSW ARM FIN (10.147)
| N1 |
2006-2006 |
02 |
|
| 008 |
|
SEAL, КАПОТ RR (PART OF 11) |
|
2006-2006 |
|
| 009 |
11610266 |
CLIP, AIR INL GRL PNL (PART OF 11) (8.950) |
N1 |
2006-2006 |
10 |
| 010 |
|
NOZZLE, WSWA (PART OF 11) |
|
2006-2006 |
|
| 011 |
20756046 |
PANEL, AIR INL GRL (LWR) (INCLS 8-10, 12, 13, 20, 30) (BLACK)
| N1 (EXC RHD) |
2006-2006 |
01 |
|
| 012 |
|
SEAL, AIR INL GRL PNL (PART OF 11) |
|
2006-2006 |
|
| 013 |
15840869 |
HOSE, WSWA NOZ (PART OF 11) (INCLS NOZZLE) |
N1 |
2006-2006 |
01 |
| 014 |
10389558 |
MOTOR, WSW (INCLS 15, 16) (ACDelco #10389558)
| N1 |
2006-2006 |
01 |
|
| 015 |
|
PLATE, WSW MOT (PART OF 14) |
|
2006-2006 |
|
| 016 |
|
NUT, WSW SYS MDL (PART OF 14) |
|
2006-2006 |
|
| 017 |
10389559 |
TRANSMISSION, WSW (ACDelco #10389559)
| N1 |
2006-2006 |
01 |
|
| 018 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (WSW TRANS) |
|
2006-2006 |
02 |
| 019 |
11562043 |
RETAINER, AIR INL GRL PNL (PART OF 11) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950)
| N1 |
2006-2006 |
03 |
|
| 020 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 11)
|
2006-2006 |
03 |
|
| 021 |
|
NUT, WSWA SOLV CNTNR (PART OF 23) |
|
2006-2006 |
|
| 022 |
|
БОЛТ, COOL RCVY RSVR BRKT (PART OF 23) |
|
2006-2006 |
|
| 023 |
15099956 |
RESERVOIR, COOL RCVY (SEE GROUP 01.000 ДВИГАТЕЛЬ COOLING SYSTEM FOR DETAILED ILLUSTRATED VIEW) (INCLS 21, 22, 24, 32) |
N153 (06) |
2006-2006 |
01 |
| 024 |
|
BRACKET, WSWA SOLV CNTNR (PART OF 23) |
|
2006-2006 |
|
| 025 |
11516932 |
БОЛТ, HEX HD, W/CON WA, M6X1X25, 9.8, 6138M (WSWA SOLV CNTNR) |
|
2006-2006 |
02 |
| 026 |
10389564 |
CONTAINER, WSWA SOLV (NON INTEGRATED WSW CONTAINER) |
N1 (06) |
2006-2006 |
01 |
| 027 |
10389566 |
GROMMET, WSWA SOLV CNTNR |
N1 |
2006-2006 |
01 |
| 028 |
|
SEAL, WSWA PUMP TERM (PART OF 29) |
|
2006-2006 |
|
| 029 |
12335752 |
PUMP KIT, WSWA W/ SEAL (INCLS 28) (FRT) (10.153) (ACDelco #12335752)
| N153 (06) |
2006-2006 |
01 |
|
| 030 |
15297373 |
HOSE, R/WDO WA SOLV CNTNR (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ЗАДНЕГО ОКНА FOR DETAILED ILLUSTRATED VIEW) (PART OF 11) |
N1 |
2006-2006 |
01 |
| 031 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (COOL RCVY RSVR RET)
|
2006-2006 |
02 |
|
| 032 |
|
CAP, WSWA SOLV CNTNR (PART OF 23) |
|
2006-2006 |
|
| 033 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (WSWA SOLV CNTNR) (T/W 12345493 REPLCS 25534835)
|
2006-2006 |
01 |
|
| 034 |
|
SEAL, WSWA PUMP TERM (PART OF 35) |
|
2006-2006 |
|
| 035 |
10389565 |
PUMP KIT, WSWA W/ SEAL (INCLS 34) (RR)
| N153 (06) |
2006-2006 |
01 |
|
