| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

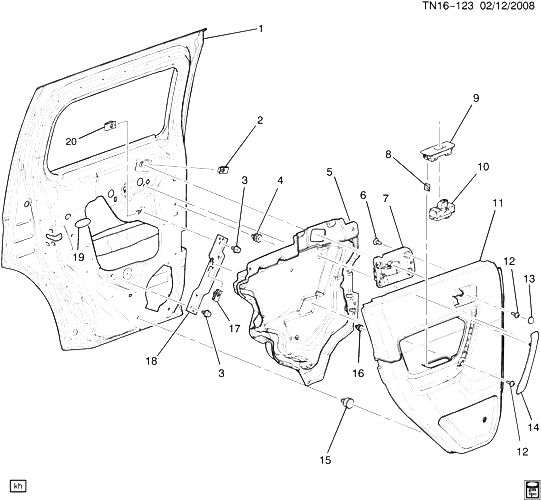

| 001 |
|
ДВЕРЬ, ЗАДНЯЯ SI (SEE GROUP 16.000 DOOR HARDWARE, REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 002 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (RR S/D T/PNL) |
|
2006-2010 |
04 |
| 003 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (RR S/D A/RST BRKT) |
|
2006-2010 |
04 |
| 004 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 11)
|
2006-2010 |
06 |
|
| 005 |
25788734 |
DEFLECTOR, RR S/D WAT (PART OF 11) |
N153 (06) |
2006-2008 |
01 |
| 005 |
25788735 |
DEFLECTOR, RR S/D WAT (PART OF 11) |
N153 (06) |
2006-2008 |
01 |
| 006 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 11) |
|
2006-2010 |
08 |
| 007 |
15818937 |
HANDLE, RR S/D I/S (PART OF 11) (CHROME) |
N1 (06) |
2006-2010 |
01 |
| 007 |
15818938 |
HANDLE, RR S/D I/S (PART OF 11) (BRIGHT CHROME)
| N153 (06) |
2006-2008 |
01 |
|
| 008 |
10410811 |
RETAINER, RR S/D ACSRY SW MT PLT (*KIT1) (10.777) |
N1 |
2006-2010 |
04 |
| 009 |
15285293 |
PLATE, RR S/D ACSRY SW MT (EBONY) (*KIT1)
| N153 |
2006-2010 |
01 |
|
| 009 |
15285294 |
PLATE, RR S/D ACSRY SW MT (EBONY) (*KIT1)
| N153 |
2006-2010 |
01 |
|
| 010 |
25884813 |
SWITCH, RR S/D WDO (W/O BACKLIGHTING) (*KIT1)
| N153 (06) |
2006-2007 |
02 |
|
| 011 |
15789703 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (MOROCCO) |
N153 (06) (423) |
2006-2006 |
01 |
| 011 |
15789704 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (GREEN) |
N153 (06) (32J) |
2006-2006 |
01 |
| 011 |
15789705 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (EBONY) |
N153 (06) (19J, 193) |
2006-2006 |
01 |
| 011 |
15789706 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (CASHMERE) |
N153 (06) (31J, 313) |
2006-2006 |
01 |
| 011 |
15789708 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (MOROCCO) |
N153 (06) (423) |
2006-2006 |
01 |
| 011 |
15789709 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (GREEN) |
N153 (06) (32J) |
2006-2006 |
01 |
| 011 |
15789710 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (EBONY) |
N153 (06) (19J, 193) |
2006-2006 |
01 |
| 011 |
15789711 |
PANEL, RR S/D TR (INCLS 4-7, 15, 16) (CASHMERE) |
N153 (06) (31J, 313) |
2006-2006 |
01 |
| 012 |
11609657 |
SCREW, PANWASH, M6X1X20, 16.3 THD, 15 OD, 9.8, GMW4205 (RR S/D T/PNL)
|
2006-2010 |
06 |
|
| 013 |
15823348 |
COVER, RR S/D TR BOLT ACC HOLE (EBONY) |
N153 (06) |
2006-2009 |
02 |
| 014 |
15285297 |
COVER, RR S/D A/RST FIN (EBONY) |
N153 (06) (19I, 27I) |
2006-2009 |
01 |
| 014 |
15285298 |
COVER, RR S/D A/RST FIN (EBONY) |
N153 (06) (19I, 27I) |
2006-2009 |
01 |
| 015 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 11)
|
2006-2010 |
04 |
|
| 016 |
15870762 |
RETAINER, RR S/D T/PNL (PART OF 11) |
N153 (06) |
2006-2010 |
02 |
| 017 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 18) |
|
2006-2010 |
02 |
| 018 |
15107236 |
BRACKET, RR S/D A/RST (INCLS 17) |
N153 |
2006-2009 |
01 |
| 018 |
15107237 |
BRACKET, RR S/D A/RST (INCLS 17) |
N153 |
2006-2009 |
01 |
| 019 |
15820928 |
COVER, RR S/D ACC HOLE (45MM DIA) (12.684) |
N1 (06) |
2006-2009 |
02 |
| 020 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (RR S/D A/RST BRKT) |
|
2006-2010 |
04 |
