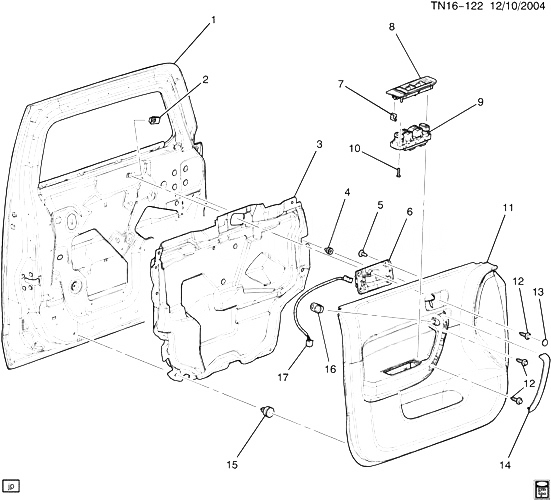

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25832626 |
ДВЕРЬ, ПЕРЕДНЯЯ SI (SEE GROUP 16.000 DOOR HARDWARE, FRONT FOR DETAILED ILLUSTRATED VIEW) (WHEN REPLACING DR ON VEHICLE BUILT PRIOR TO 9/12/05, CUSTOMER MAY NEED TO REPLACE DOOR T/W CHECK LINK 15839141)
| N153 (06) |
2006-2006 |
01 |
|
| 001 |
25832627 |
ДВЕРЬ, ПЕРЕДНЯЯ SI (SEE GROUP 16.000 DOOR HARDWARE, FRONT FOR DETAILED ILLUSTRATED VIEW) (WHEN REPLACING DR ON VEHICLE BUILT PRIOR TO 9/12/05, CUSTOMER MAY NEED TO REPLACE DOOR T/W CHECK LINK 15839141)
| N153 (06) (LHD) |
2006-2006 |
01 |
|
| 001 |
25832627 |
ДВЕРЬ, ПЕРЕДНЯЯ SI (SEE GROUP 16.000 DOOR HARDWARE, FRONT FOR DETAILED ILLUSTRATED VIEW) (WHEN REPLACING DR ON VEHICLE BUILT PRIOR TO 9/12/05, CUSTOMER MAY NEED TO REPLACE DOOR T/W CHECK LINK 15839141)
| N153 (06) (RHD) |
2006-2006 |
01 |
|
| 002 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT S/D TR PNL) |
|
2006-2007 |
06 |
| 003 |
15951956 |
DEFLECTOR, FRT S/D WAT (PART OF 11) |
N153 (06) |
2006-2007 |
01 |
| 003 |
25782264 |
DEFLECTOR, FRT S/D WAT (PART OF 11) |
N153 (06) |
2006-2007 |
01 |
| 004 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 11)
|
2006-2007 |
06 |
|
| 005 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 11) |
|
2006-2007 |
08 |
| 006 |
15818937 |
HANDLE, FRT S/D I/S (PART OF 11) (CHROME) |
N1 (06) |
2006-2007 |
01 |
| 006 |
15818938 |
HANDLE, FRT S/D I/S (PART OF 11) (BRIGHT CHROME)
| N153 (06) |
2006-2007 |
01 |
|
| 007 |
10410811 |
RETAINER, FRT S/D ACSRY SW MT PLT (10.777) |
N1 |
2006-2007 |
04 |
| 008 |
15285288 |
PLATE, FRT S/D ACSRY SW MT (EBONY) |
N153 (06) |
2006-2006 |
01 |
| 008 |
15878045 |
PLATE, FRT S/D ACSRY SW MT (EBONY) |
N153 (06) |
2006-2006 |
01 |
| 009 |
15205244 |
SWITCH, DR LK ; SI WDO |
N1 |
2006-2007 |
01 |
| 009 |
25779767 |
SWITCH, DR LK ; SI WDO
| N153 |
2006-2006 |
01 |
|
| 010 |
15119572 |
БОЛТ, FRT S/D ACSRY SW MT PLT (16.165) |
N153 (06) |
2006-2007 |
05 |
| 011 |
15261459 |
PANEL, FRT S/D TR (INCLS 3-6, 15) (GREEN) |
N153 (06) (32J) |
2006-2006 |
01 |
| 011 |
15789674 |
PANEL, FRT S/D TR (INCLS 3-6, 15-17) (GREEN) |
N153 (06) (32J) |
2006-2006 |
01 |
| 011 |
15789678 |
PANEL, FRT S/D TR (INCLS 3-6, 15) (MOROCCO) |
N153 (06) (423) |
2006-2006 |
01 |
| 011 |
15842632 |
PANEL, FRT S/D TR (INCLS 3-6, 15-17) (MOROCCO) |
N153 (06) (423) |
2006-2006 |
01 |
| 011 |
15842634 |
PANEL, FRT S/D TR (INCLS 3-6, 15-17) (EBONY) |
N153 (06) (19J, 193) |
2006-2006 |
01 |
| 011 |
15842635 |
PANEL, FRT S/D TR (INCLS 3-6, 15-17) (CASHMERE) |
N153 (06) (31J, 313) |
2006-2006 |
01 |
| 011 |
15842639 |
PANEL, FRT S/D TR (INCLS 3-6, 15) (EBONY) |
N153 (06) (19J, 193) |
2006-2006 |
01 |
| 011 |
15842640 |
PANEL, FRT S/D TR (INCLS 3-6, 15) (CASHMERE) |
N153 (06) (31J, 313) |
2006-2006 |
01 |
| 012 |
11609657 |
SCREW, PANWASH, M6X1X20, 16.3 THD, 15 OD, 9.8, GMW4205 (FRT S/D T/PNL)
|
2006-2007 |
06 |
|
| 013 |
15823348 |
COVER, FRT S/D TR BOLT ACC HOLE (EBONY) |
N153 (06) |
2006-2007 |
02 |
| 014 |
15285267 |
COVER, FRT S/D A/RST FRT FIN (EBONY)
| N153 (06) (19I, 27I) |
2006-2006 |
01 |
|
| 014 |
15285268 |
COVER, FRT S/D A/RST FRT FIN (EBONY)
| N153 (06) (19I, 27I) |
2006-2006 |
01 |
|
| 015 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 11)
|
2006-2007 |
12 |
|
| 016 |
15224191 |
SWITCH, O/S R/CON RR VIEW MIR (PART OF 11) |
N1 (06) |
2006-2006 |
01 |
| 017 |
15880737 |
HARNESS, O/S RR VIEW MIR DR WRG (PART OF 11) (16.068)
| N153 (06) (19J, 193, 31J, 313, 32J, 423) |
2006-2006 |
01 |
|
| 017 |
15880737 |
HARNESS, O/S RR VIEW MIR DR WRG (PART OF 11)
| N153 (06) (19J, 193, 31J, 313, 32J, 423) |
2006-2006 |
01 |
|
