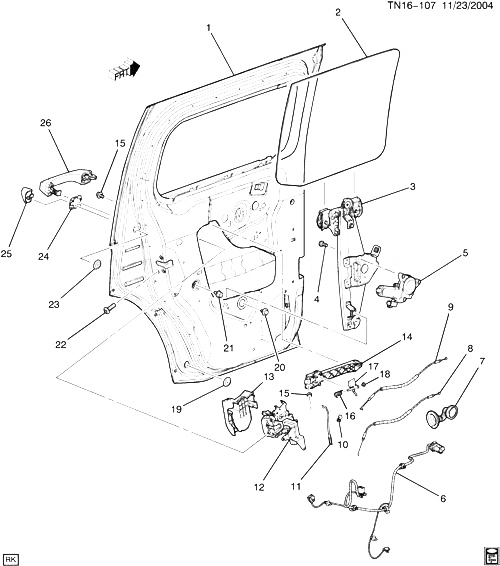

(TN16-107) - 2006-2008 N1 АРМАТУРА ЗАДНЕЙ БОКОВОЙ ДВЕРИ ЧАСТЬ 2 HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15934099 ДВЕРЬ, ЗАДНЯЯ SI (SEE GROUP 16.000 КУЗОВ-БОКОВЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) (VEH BUILT PRIOR TO 9/12/05 MAY NEED TO REPL DR T/W CHECK LINK 15839143) (USE COMMON BODY SHOP RPR TAPE TO CVR HOLE FOR CHILD SAF LOCK IN INR PNL) N153 2006-2006 01
001 15934100 ДВЕРЬ, ЗАДНЯЯ SI (SEE GROUP 16.000 КУЗОВ-БОКОВЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) (VEH BUILT PRIOR TO 9/12/05 MAY NEED TO REPL DR T/W CHECK LINK 15839143) (USE COMMON BODY SHOP RPR TAPE TO CVR HOLE FOR CHILD SAF LOCK IN INR PNL) N153 2006-2006 01
002 15094403 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N1 (06) (AJ1) 2006-2009 01
002 15094404 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N1 (06) (AJ1) 2006-2009 01
002 15821203 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N1 (06) (EXC AJ1) 2006-2009 01
002 15821204 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N1 (06) (EXC AJ1) 2006-2009 01
003 15165646 REGULATOR, RR S/D WDO (INCLS 4, 5) (INCLS MOTOR) N1 2006-2010 01
003 15165647 REGULATOR, RR S/D WDO (INCLS 4, 5) (INCLS MOTOR) N1 2006-2010 01
004 БОЛТ, RR S/D WDO REG MOT (PART OF 3) 2006-2008
005 10373254 MOTOR, RR S/D WDO REG (PART OF 3) (ACDelco #10373254) N1 2006-2010 01
005 10373255 MOTOR, RR S/D WDO REG (PART OF 3) (ACDelco #10373255) N1 2006-2010 01
006 15083016 HARNESS, RR S/D DR WRG (INCLS 7) N153 (06) (UQA) 2006-2007 02
006 15270585 HARNESS, RR S/D DR WRG (INCLS 7) N153 (06) (UQ3) 2006-2010 02
007 19115020 GROMMET, RR S/D DR LK DR WRG HARN (PART OF 6) N153 (06) (UQA, UQ3) 2006-2010 01
008 CABLE, RR S/D I/S HDL (PART OF 12) 2006-2008
009 CABLE, RR S/D I/S HDL (PART OF 12) 2006-2008
010 CLIP, RR S/D I/S HDL CBL (PART OF 12) 2006-2008
011 ROD, RR S/D O/S HDL (PART OF 12) 2006-2008
012 15855979 LOCK, RR S/D (INCLS 8-11, 13) (W/RODS ; CABLES) (INCLS ACTUATOR) N1 2006-2006 01
012 15855980 LOCK, RR S/D (INCLS 8-11, 13) (W/RODS ; CABLES) (INCLS ACTUATOR) N1 2006-2006 01
013 COVER, RR S/D LK (PART OF 12) 2006-2008
014 25878781 HOUSING, RR S/D O/S HDL (INCLS 16-18) N1 2006-2010 01
014 25878782 HOUSING, RR S/D O/S HDL (INCLS 16-18) N1 2006-2010 01
015 11517515 BOLT-HFH, M6X1X10, THD 8.5, OD 14.2, 9.8, GM6280, HDR PT. (RR S/D O/S HDL HSG) 2006-2010 04
016 SPRING, RR S/D O/S HDL (PART OF 14) 2006-2008
017 PAWL, R/D LK (PART OF 14) 2006-2008
018 CLIP, RR S/D O/S HDL ROD (PART OF 14) 2006-2008
019 21110669 PLUG, RR S/D DRN HOLE (35 MM) (ROUND) (12.179) N1 2006-2010 02
020 11589231 BOLT -HFH, M6X1X13.5, 6.2 THD, 16 OD, 8.8 STL, GMW3359, M-PT (RR S/D WDO REG) 2006-2010 04
021 11518060 БОЛТ, HFH M6X1X10, THD 8.5, OD 14.2, 8.8, GMW14C-PT, HDR POINT (RR S/D LK ACTR) 2006-2010 02
022 11609720 SCREW - OVAL, M6X1X22, 17 THD, 12.25 OD, 9.8, GMW4205, ADHESIVE 6175M (RR S/D LK) 2006-2010 06
023 21110669 PLUG, RR S/D O/S HDL ACC HOLE (35 MM) (ROUND) (12.179) N1 2006-2009 02
024 15921999 GASKET, RR S/D O/S HDL N153 (06) 2006-2010 02
025 15932906 CAP, RR S/D O/S HDL STUD (GRAY) (16.353) N1 (EXC R13) 2006-2006 02
025 15932907 CAP, RR S/D O/S HDL STUD (CHROME) (16.353) N1 2006-2006 02
026 25832249 HANDLE, RR S/D O/S (CHROME) N1 2006-2006 02
026 25832250 HANDLE, RR S/D O/S (GRAY) N1 (EXC R13) 2006-2006 02
