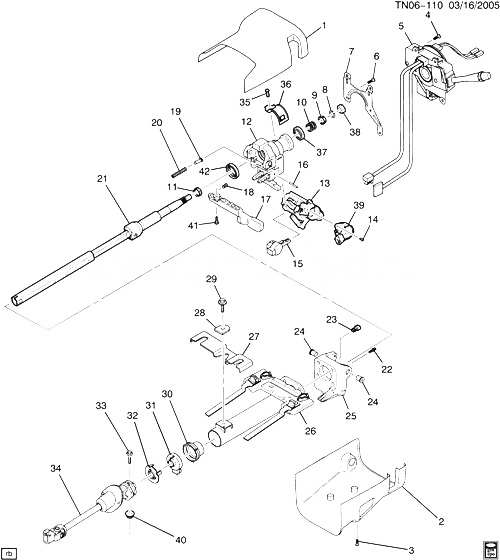

(TN06-110) - 2006-2009 N1 РУЛЕВАЯ КОЛОНКА (АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП M30) HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10376748 SHROUD, STRG COL (INCLS 2) (PEWTER) N1 2006-2007 01
002 SHROUD, STRG COL (PART OF 1) 2006-2009
003 26104379 SCREW, FLAT HEAD W/SHLDR, M5X0.8X12, 7 THD, 9.3 OD, GM6171M STL, TAP (STRG COL HSG CVR) 2006-2010 03
004 26014529 БОЛТ, HDLP DIMR ; T/SIG SW (M5X.8X11.5) (TO LOCK MODULE) (6.522) N1 2006-2010 03
004 26014529 БОЛТ, HDLP DIMR ; T/SIG SW (M5X.8X11.5) (TO LOCK MODULE) (6.522) N1 2006-2010 03
005 15281884 SWITCH, T/SIG ; HDLP D/SW ; WSW ; WSWA (W/LVR) (INCLS AIRBAG COIL AND ЖГУТ ПРОВОДОВ) N1 (M30) 2006-2006 01
005 15906128 SWITCH, T/SIG ; HDLP D/SW ; WSW ; WSWA (W/LVR) (INCLS AIRBAG COIL) (2.895) (ACDelco #D2119E) N1 (M30) 2006-2006 01
005 15906128 SWITCH, T/SIG ; HDLP D/SW ; WSW ; WSWA (W/LVR) (INCLS AIRBAG COIL) (ACDelco #D2119E) N153 (06) (M30, N33) 2006-2006 01
005 15906128 SWITCH, T/SIG ; HDLP D/SW ; WSW ; WSWA (W/LVR) (INCLS AIRBAG COIL) (2.895) (ACDelco #D2119E) N1 (M30) 2006-2006 01
006 07849055 БОЛТ, T/SIG SW BRKT (M4X0.7X13) (PAN WA HD, TORX) (2.188) N1 2006-2010 02
007 15216927 BRACKET, T/SIG SW N1 2006-2010 01
008 05694191 RING, STRG SHF LK PLT RET (*KIT2) (6.524) N1 2006-2010 01
009 26025648 RETAINER, STRG COL TILT SPR (*KIT2) N1 2006-2010 01
010 07815185 SPRING, STRG SHF UPR BRG (*KIT2) N1 2006-2010 01
011 RACE, STRG SHF UPR BRG (*KIT1, KIT2) 2006-2009
012 26086229 HOUSING, STRG COL (INCLS 16-18, 37, 41, 42) (*KIT2) N1 2006-2010 01
013 15795321 HOUSING, IGN ; START SW (HAS SHAFT LOCK, INCLS PASSLOCK SENSOR, SWITCH, BOLT) (INCLS 14, 39) (ACDelco #D1462G) N1 2006-2007 01
014 07849055 БОЛТ, IGN SW (PART OF 13) (M4X0.7X13) (PAN WA HD, TORX) N1 2006-2010 02
015 10391401 SOLENOID, IGN LK CYL CONT N1 (M30) 2006-2010 01
016 PIN, STRG COL TILT LK SHOE (PART OF 12) (*KIT2) 2006-2009
017 26102151 KNOB, STRG COL TILT WHL REL LVR (PART OF 12) (*KIT2) N1 2006-2010 01
018 SPRING, STRG COL TILT LK REL LVR (PART OF 12) (*KIT2) 2006-2009
019 26034561 GUIDE, STRG COL TILT (*KIT2) (6.514) N1 2006-2010 01
020 26078240 SPRING, STRG COL TILT (*KIT2) N1 2006-2010 01
021 SHAFT, STRG (*KIT2) 2006-2009
022 БОЛТ, STRG COL HSG SUPT (*KIT2) 2006-2009
023 BUMPER, STRG COL HSG (*KIT2) 2006-2009
024 26036521 PIN, STRG COL PIV (*KIT2) N1 2006-2010 02
025 SUPPORT, STRG COL HSG (*KIT2) 2006-2009
026 JACKET, STRG COL (*KIT2) 2006-2009
027 BRACKET, STRG COL UPR SUPT (*KIT2) 2006-2009
028 REINFORCEMENT, STRG COL UPR SUPT BRKT (*KIT2) 2006-2009
029 БОЛТ, STRG COL UPR SUPT BRKT (*KIT2) 2006-2009
030 10391400 BEARING, STRG SHF LWR (*KIT2) N1 2006-2010 01
031 26104070 ДАТЧИК, STRG WHL POSN N1 2006-2010 01
032 19180263 CLIP, STRG WHL POSN SEN RET (6.521) N1 2006-2010 01
033 26058124 БОЛТ, INTER STRG SHF (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) N1 2006-2010 01
034 15167588 SHAFT, S/GR CPLG N1 (N33) 2006-2010 01
034 15167588 SHAFT, S/GR CPLG N1 (NP7) (EXC RHD) 2006-2010 01
034 15167588 SHAFT, S/GR CPLG (6.524) N1 (N33) 2006-2010 01
034 15167588 SHAFT, S/GR CPLG (6.524) N1 (NP7) (EXC RHD) 2006-2010 01
035 26028106 БОЛТ, IGN ; START SW (26028106 IS NOT INCLUDED IN 15795322 HOUSING PKG) (SHEAR BOLT) (W/ WASHER) (2.195) N1 2006-2010 01
036 15251763 BRACKET, IGN START SW N1 2006-2010 01
037 15216904 BEARING, STRG SHF UPR (PART OF 12) (*KIT2) N1 2006-2010 01
038 11609587 NUT, STRG WHL (8.917) N1 2006-2010 01
039 15795324 SWITCH, IGN ; START (PART OF 13) (ACDelco #15795324) N1 2006-2010 01
040 11514597 NUT, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) N1 2006-2010 01
041 26036317 PIN, STRG COL TILT LK REL LVR PIV (PART OF 12) (M5X0.8) (T-25 TORX) (*KIT2) N1 2006-2010 01
042 BEARING, STRG SHF UPR (PART OF 12) (*KIT1, KIT2) 2006-2009
K01 26001827 BEARING KIT, STRG SHF UPR (INCLS 11, 42) (STRG COL INR W/RACE) N1 2006-2010 01
K02 10391402 COLUMN, STRG (INCLS 8-12, 16-30, 37, 41, 42) (R;P) N1 2006-2010 01
