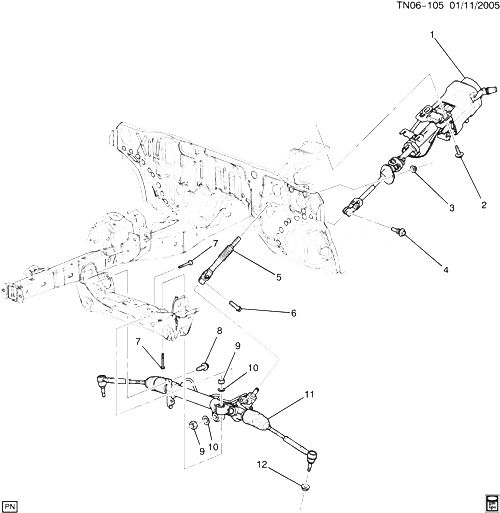

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COLUMN, STRG (SEE GROUP 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 002 |
11610010 |
БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (STRG COL)
|
2006-2010 |
02 |
|
| 003 |
15685230 |
NUT, STRG COL (8 X 1.25) (W/LOCK WASHER) (8.016)
| N1 |
2006-2010 |
02 |
|
| 004 |
15170149 |
БОЛТ, INTER STRG SHF UPR (M8X1.25X38.7, 20THD) (INCLS NYLON SLEEVE) |
N1 |
2006-2010 |
01 |
| 005 |
25900714 |
SHAFT, LWR STRG
| N1 (06) |
2006-2006 |
01 |
|
| 006 |
26030302 |
БОЛТ, INTER STRG SHF LWR (M10X1.5X39) (HFH NYLON LOCK) (6 POINT HEAD)
| N1 |
2006-2010 |
01 |
|
| 007 |
11588326 |
БОЛТ, S/GR (M16X2X187, 57THD) (8.900) |
N1 |
2006-2010 |
02 |
| 008 |
11588689 |
WASHER, S/GR (ID 12.25, OD 23.0, THK 3.38MM) (5.586)
| N1 |
2006-2010 |
02 |
|
| 008 |
11609295 |
БОЛТ, S/GR (M12X1.75X43) (8.900) |
N1 |
2006-2010 |
02 |
| 009 |
11516133 |
ГАЙКА, M16X2, 15THK, 24.5 O.D., 10, PZOR (S/GR)
|
2006-2010 |
02 |
|
| 010 |
11561076 |
WASHER, S/GR (ID 16.875 OD 39.5, THK 4.5MM) |
N1 |
2006-2010 |
02 |
| 010 |
11588689 |
WASHER, S/GR (ID 12.25, OD 23.0, THK 3.38MM) (5.586)
| N1 |
2006-2010 |
02 |
|
| 011 |
94725465 |
GEAR, STRG (W/ STRG LNKG TIE ROD) (SEE GROUP 06.000 STEERING GEAR ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N153 (06) |
2006-2006 |
01 |
| 012 |
11516074 |
ГАЙКА, HEX M14X2X13 (STRG LNKG TIE ROD)
|
2006-2010 |
02 |
|
