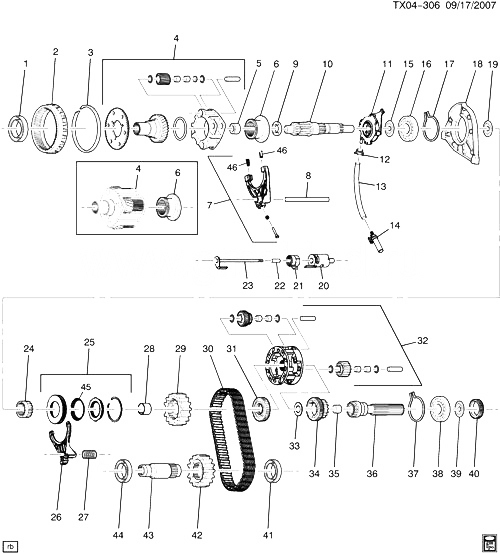

(TX04-306) - 2006-2010 N1 КАРТЕР И КРЫШКИ КОРОБКИ ПЕРЕДАЧ PART 2 INTERNAL COMPONENTS (BORG WARNER 4493/4494)(NR4,NR6) HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89059519 BEARING, TRFER CASE INPUT SHF (ACDelco #89059519) N1 (NR4, NR6) 2006-2010 01
002 88984534 GEAR, TRFER CASE PLNT CARR INTL N1 (NR4) 2006-2010 01
002 89059530 GEAR, TRFER CASE PLNT CARR INTL N1 (NR6) 2006-2010 01
003 15580249 RING, TRFER CASE HIGH/LOW INT GR RET N1 (NR4, NR6) 2006-2010 01
004 89059552 CARRIER, TRFER CASE HIGH/LOW PLNT N1 (NR4) 2006-2010 01
004 89059555 CARRIER, TRFER CASE HIGH/LOW PLNT N1 (NR6) 2006-2010 01
005 12334624 BEARING, TRFER CASE MAIN SHF FRT (ACDelco #12334624) N1 (NR4, NR6) 2006-2010 01
006 88996561 HUB, TRFER CASE HIGH/LOW CLU GR N1 (NR4) 2006-2010 01
006 89059529 HUB, TRFER CASE HIGH/LOW CLU GR N1 (NR6) 2006-2010 01
007 19178136 FORK, TRFER CASE HIGH/LOW SHFT (INCLS 46) N1 (NR4, NR6) 2006-2010 01
008 89059532 SHAFT, TRFER CASE SHFT FORK N1 (NR4, NR6) 2006-2010 01
009 89058756 WASHER, TRFER CASE INPUT SHF THR N1 (NR4) 2006-2010 01
009 89059521 WASHER, TRFER CASE INPUT SHF THR N1 (NR6) 2006-2010 01
010 89059536 SHAFT, TRFER CASE INPUT N1 (NR4) 2006-2010 01
010 89059554 SHAFT, TRFER CASE INPUT N1 (NR6) 2006-2010 01
011 89059682 PUMP, TRFER CASE OIL N1 (NR4, NR6) 2006-2010 01
012 88984502 CLAMP, TRFER CASE O/PMP SUC HOSE N1 (NR4, NR6) 2006-2010 01
013 89059513 HOSE, TRFER CASE O/PMP SUC N1 (NR4, NR6) 2006-2010 01
014 88984525 SCREEN, TRFER CASE O/PMP N1 (NR4, NR6) 2006-2010 01
015 89059526 WASHER, TRFER CASE INPUT SHF CTR SUPT BRG THR (UPPER) (PART OF 18) N1 (NR4, NR6) 2006-2010 02
016 88984506 BEARING, TRFER CASE INPUT SHF CTR SUPT (PART OF 18) (4.520) N1 (NR4, NR6) 2006-2010 01
017 88984508 RING, TRFER CASE INPUT SHF CTR SUPT BRG RET (PART OF 18) (80MM I.D.) (4.535) N1 (NR4, NR6) 2006-2010 01
018 89059544 SUPPORT, TRFER CASE INPUT SHF CTR (INCLS 15-17, 19) (4.520) N1 (NR4, NR6) 2006-2010 01
019 89059526 WASHER, TRFER CASE INPUT SHF CTR SUPT BRG THR (LOWER) (PART OF 18) N1 (NR4, NR6) 2006-2010 02
020 88996628 LEVER, TRFER CASE SHFT DTNT N1 (NR4, NR6) 2006-2010 01
021 88984497 SPRING, TRFER CASE HIGH/LOW SHFT FORK SHF DTNT N1 (NR4, NR6) 2006-2010 01
022 88984496 SPACER, TRFER CASE SHFT DTNT LVR N1 (NR4, NR6) 2006-2010 01
023 89059539 SHAFT, TRFER CASE SHFT DTNT LVR N1 (NR4, NR6) 2006-2010 01
024 88984537 HUB, TRFER CASE TWO/FOUR WHL DRV CLU GR N1 (NR4, NR6) 2006-2010 01
025 89059548 COLLAR, TRFER CASE TWO/FOUR WHL DRV SYN (INCLS 45) N1 (NR4, NR6) 2006-2010 01
026 19180438 FORK, TRFER CASE TWO/FOUR WHL DRV SHFT N1 (NR4, NR6) 2006-2008 01
027 15663532 SPRING, TRFER CASE SHFT FORK N1 (NR4, NR6) 2006-2010 01
028 19168732 BUSHING, TRFER CASE FRT OUTPUT SHF DRV SPKT (PART OF 29) (ACDelco #19168732) N1 (NR4, NR6) 2006-2010 01
029 19207480 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV (INCLS 28) N1 (NR4, NR6) 2006-2010 01
030 89059571 CHAIN, TRFER CASE TWO/FOUR WHL DRV N1 (NR4, NR6) 2006-2010 01
031 88984523 GEAR, TRFER CASE PLNT CARR SUN (OUTPUT) N1 (NR4, NR6) 2006-2010 01
032 89059279 CARRIER, FRT/RR DRV DIFF N1 (NR4, NR6) 2006-2010 01
033 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR N1 (NR4, NR6) 2006-2010 01
034 88984524 GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STAMPED PM/POWDERED METAL) N1 (NR4, NR6) 2006-2010 01
035 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (PART OF 36) N1 (NR4, NR6) 2006-2010 01
036 19168725 SHAFT, TRFER CASE RR OUTPUT (INCLS 35, 38-40) N1 (NR4, NR6) 2006-2010 01
037 88984508 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (80MM I.D.) (4.535) N1 (NR4, NR6) 2006-2010 01
038 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR (PART OF 36) N1 (NR4, NR6) 2006-2010 01
039 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (PART OF 36) (41MM I.D.) (ACDelco #88984493) N1 (NR4, NR6) 2006-2010 01
040 88984522 КОЛЕСО, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 36) (4.329) N1 2006-2010 01
040 88984522 КОЛЕСО, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 36) N1 2006-2010 01
041 89059518 BEARING, TRFER CASE FRT OUTPUT SHF RR N1 (NR4, NR6) 2006-2010 01
042 19207482 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN N1 (NR4, NR6) 2006-2010 01
043 89059542 SHAFT, TRFER CASE FRT OUTPUT N1 (NR4, NR6) 2006-2010 01
044 89059520 BEARING, TRFER CASE FRT OUTPUT SHF FRT (ACDelco #89059520) N1 (NR4, NR6) 2006-2010 01
045 88984512 SPRING, TRFER CASE TWO/FOUR WHL DRV SYN INS (PART OF 25) N1 (NR4, NR6) 2006-2010 01
046 89060050 PAD, TRFER CASE HIGH/LOW SHFT FORK (PART OF 7) N1 (NR4, NR6) 2006-2010 02
