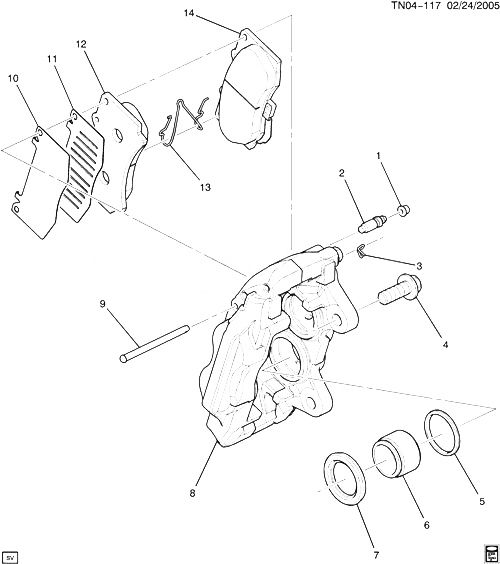

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, FRT BRK BLEDR SCREW (*KIT2) |
|
2006-2010 |
|
| 002 |
10366557 |
VALVE, FRT BRK CLPR BLEDR (*KIT2) (ACDelco #10366557) |
N1 |
2006-2010 |
02 |
| 003 |
|
RETAINER, FRT DISC BRK PAD (*KIT1) |
|
2006-2010 |
|
| 004 |
15098000 |
БОЛТ, FRT BRK CLPR (M14 X 1.5 X 37.5) |
N1 |
2006-2010 |
04 |
| 005 |
|
SEAL, FRT BRK CLPR PSTN (*KIT2) |
|
2006-2010 |
|
| 006 |
10366555 |
PISTON, FRT BRK CLPR |
N1 |
2006-2010 |
08 |
| 007 |
|
BOOT, FRT BRK CLPR PSTN (*KIT2) |
|
2006-2010 |
|
| 008 |
15202109 |
HOUSING, FRT BRK CLPR |
N1 |
2006-2007 |
01 |
| 008 |
15202110 |
HOUSING, FRT BRK CLPR |
N1 |
2006-2007 |
01 |
| 009 |
|
PIN, FRT DISC BRK PAD (*KIT1) |
|
2006-2010 |
|
| 010 |
|
SHIM, FRT DISC BRK PAD VIB (*KIT1) |
|
2006-2010 |
|
| 011 |
|
INSULATOR, FRT DISC BRK OTR PAD (*KIT1) |
|
2006-2010 |
|
| 012 |
|
PAD, FRT DISC BRK OTR (*KIT1) |
|
2006-2010 |
|
| 013 |
|
CLIP, FRT BRK CLPR DPNR (*KIT1) |
|
2006-2010 |
|
| 014 |
|
PAD, FRT DISC BRK INR (*KIT1) |
|
2006-2010 |
|
| K01 |
15240794 |
PAD KIT, FRT DISC BRK (INCLS 3, 9-14)
| N1 |
2006-2010 |
01 |
|
| K02 |
15240789 |
CALIPER KIT, FRT BRK (INCLS 1, 2, 5, 7) (4.667) (ACDelco #173-0540)
| N1 |
2006-2010 |
02 |
|
| K02 |
15240789 |
CALIPER KIT, FRT BRK (INCLS 1, 2, 5, 7) (ACDelco #173-0540)
| N1 |
2006-2010 |
02 |
|
