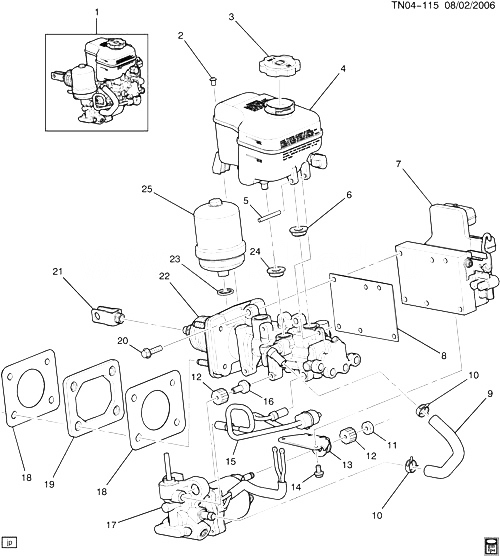

(TN04-115) - 2006-2010 N1 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР BOOSTER HUMMER - H3 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25796387 CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (INCLS 2-25) N1 2006-2007 01
002 11561105 БОЛТ, BRK M/CYL RSVR (*KIT1) N1 2006-2010 01
003 25950517 CAP, BRK M/CYL RSVR N1 2006-2010 01
004 15240726 RESERVOIR KIT, BRK M/CYL (INCLS 5, 6, 18, 24) (ACDelco #15240726) N1 2006-2010 01
005 11561104 PIN, BRK M/CYL RSVR (PART OF 4, 7, 22) (*KIT1) N1 2006-2010 01
006 10386664 GROMMET, BRK M/CYL RSVR (PART OF 4) (MASTER CYLINDER FEED) N1 2006-2010 02
007 25796388 MODULE KIT, ELEK BRK ; TRACT CONT (INCLS 5, 8, 11, 18, 20) N1 2006-2007 01
008 GASKET, ELEK BRK ; TRACT CONT MDL (PART OF 7, 22) 2006-2010
009 15240737 HOSE KIT, P/B BOOS INL (INCLS 18) N1 2006-2010 01
010 11561108 CLAMP, P/B BOOS PUMP INL HOSE N1 2006-2010 02
011 RETAINER, P/B BOOS PUMP DPNR (PART OF 7, 17, 22) (*KIT1) 2006-2010
012 DAMPENER, P/B BOOS PUMP (PART OF 17) (*KIT1) 2006-2010
013 BRACKET, P/B BOOS PUMP (*KIT1) 2006-2010
014 БОЛТ, P/B BOOS PUMP (*KIT1) 2006-2010
015 15240736 PIPE KIT, P/B BOOS OTLT FRT (INCLS 18) N1 2006-2010 01
016 RETAINER, P/B BOOS PUMP DPNR (PART OF 17) (*KIT1) 2006-2010
017 15240729 PUMP KIT, P/B BOOS (INCLS 11, 12, 16, 18, 23) N1 2006-2010 01
018 10386657 GASKET, BRK M/CYL SPCR (PART OF 4, 7, 9, 15, 17, 22, 25) (*KIT1) N1 2006-2010 02
019 SPACER, BRK M/CYL 2006-2010
020 БОЛТ, ELEK BRK ; TRACT CONT MDL (PART OF 7, 22) 2006-2010
021 CLEVIS, BRK PED PUSH ROD (PART OF 22) 2006-2010
022 15240721 CYLINDER KIT, BRK MAS (INCLS 5, 8, 11, 18, 20, 21) N1 2006-2010 01
023 10386686 SEAL, P/B BOOS PUMP FLUID ACCUM (O RING) (PART OF 17, 25) N1 2006-2010 01
024 15782041 GROMMET, BRK M/CYL RSVR (PART OF 4) (POWER SUPPLY UNIT FEED) N1 2006-2010 01
025 15240730 ACCUMULATOR KIT, P/B BOOS PUMP FLUID (INCLS 18, 23) N1 2006-2010 01
K01 15240738 PARTS KIT, BRK MAS CYL (W/ P/B BOOS ; CHAS CONT MDL) (INCLS 2, 5, 11-14, 16, 18) N1 2006-2010 01
