| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

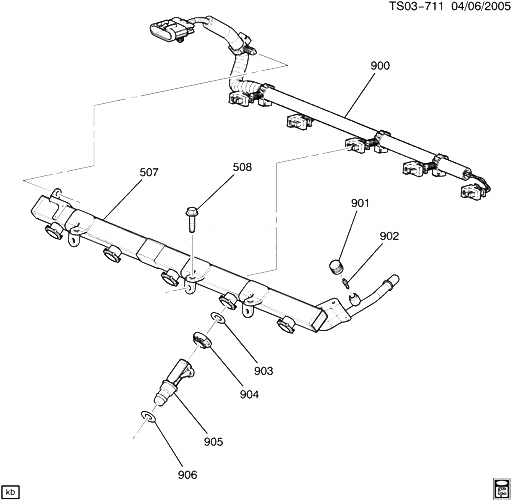

| 507 |
12574343 |
RAIL KIT, M/PORT F/INJN FUEL (INCLS 901, 902) (ACDelco #12574343) |
N1 (L52) |
2006-2006 |
01 |
| 508 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (F/INJR)
|
2006-2010 |
03 |
|
| 900 |
12589210 |
HARNESS, F/INJR WRG |
N153 (06) (L52, JJA) |
2006-2006 |
01 |
| 901 |
25532662 |
CAP, FUEL PRESS SERV VLV (*1, 2, 3) (PART OF 507) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044)
| N1 (L52, M30, JJA) |
2006-2006 |
01 |
|
| 901 |
25532662 |
CAP, FUEL PRESS SERV VLV (*1, 2, 3) (PART OF 507) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044)
| N1 (L52, MA5, JJA) |
2006-2006 |
01 |
|
| 901 |
25532662 |
CAP, FUEL PRESS SERV VLV (PART OF 507) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044)
| N1 |
2006-2006 |
01 |
|
| 902 |
|
VALVE, FUEL PRESS SERV (PART OF 507) |
|
2006-2006 |
|
| 903 |
|
SEAL, F/INJR (O RING) (PART OF 905) (*KIT1) |
|
2006-2006 |
|
| 904 |
12585749 |
RETAINER, F/INJR (PART OF 905) |
N1 (L52) |
2006-2006 |
06 |
| 905 |
|
INJECTOR KIT, M/PORT FUEL (INCLS 903, 904, 906) |
|
2006-2006 |
|
| 905 |
12589465 |
INJECTOR KIT, M/PORT FUEL (INCLS 903, 904, 906) (ACDelco #217-2292)
| N1 (L52) |
2006-2006 |
05 |
|
| 906 |
|
SEAL, F/INJR (O RING) (PART OF 905) (*KIT1) |
|
2006-2006 |
|
| K01 |
12587147 |
SEAL KIT, F/INJR (O RING) (INCLS SEALS) (INCLS 903, 906) (W/ 8 UPPER ; 8 LOWER SEALS) (ACDelco #217-1588)
| N1 (L52) |
2006-2006 |
01 |
|
