| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

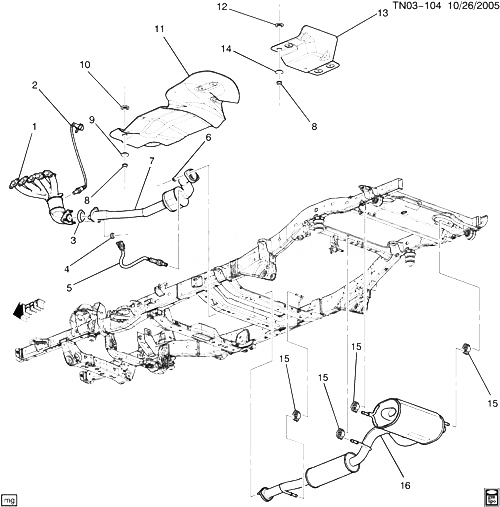

| 001 |
12571601 |
MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS:CONVERTER, PIPE, SHIELD, FLANGE, PLUG, STUD) (SEE GROUP 00.000 ДВИГАТЕЛЬ В СБОРЕ-3.5L L5 PART 5 MANIFOLDS ; RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (3.601) |
N1 (L52) |
2006-2006 |
01 |
| 002 |
12592592 |
ДАТЧИК, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3207)
| N153 (06) (LK5, L52, JJA) |
2006-2006 |
01 |
|
| 003 |
15105884 |
SEAL, EXH MANIF PIPE |
N1 (JJA) |
2006-2006 |
01 |
| 004 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE)
|
2006-2006 |
03 |
|
| 005 |
12596740 |
ДАТЧИК, HTD OXY (POSN 2) (ACDelco #213-3542)
| N153 (06) (L52) |
2006-2006 |
01 |
|
| 006 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF)
|
2006-2006 |
02 |
|
| 007 |
15292649 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685)
| N1 (JJA) |
2006-2006 |
01 |
|
| 007 |
15292649 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE)
| N1 (JJA) |
2006-2006 |
01 |
|
| 008 |
11588331 |
ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (EXH H/SHLD) |
|
2006-2006 |
09 |
| 009 |
15196826 |
INSULATOR, EXH MUFF H/SHLD (PART OF 11) (MALE) (3.690) |
N1 |
2006-2006 |
05 |
| 010 |
15196825 |
INSULATOR, EXH MUFF H/SHLD (PART OF 11) (FEMALE) (3.690) |
N1 |
2006-2006 |
05 |
| 011 |
10377450 |
SHIELD, CTLTC CONV HT (INCLS 9, 10) |
N1 |
2006-2006 |
01 |
| 012 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 13) |
|
2006-2006 |
|
| 013 |
15238381 |
SHIELD, EXH HT (AT R/FLR PNL) (INCLS 12, 14) |
N1 |
2006-2006 |
01 |
| 014 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 13) |
|
2006-2006 |
|
| 015 |
15120136 |
INSULATOR, EXH PIPE HNGR |
N1 |
2006-2006 |
AR |
| 016 |
15931261 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE)
| N1 |
2006-2006 |
01 |
|
| 016 |
15931261 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (3.701)
| N1 |
2006-2006 |
01 |
|
| 016 |
15931261 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (3.701)
| N1 |
2006-2006 |
01 |
|
