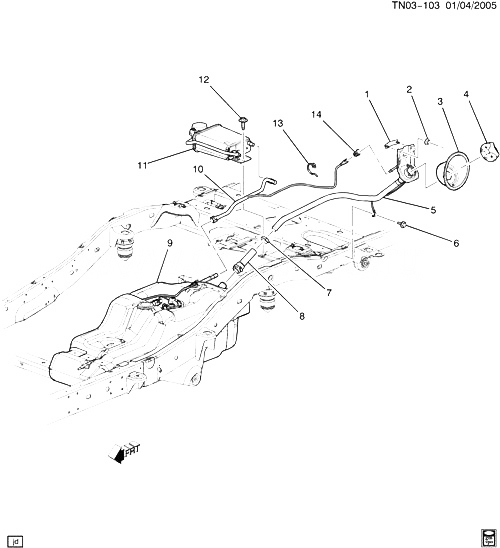

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15084099 |
BRACKET, F/TNK FIL PIPE |
N153 (06) |
2006-2006 |
01 |
| 002 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (F/TNK FIL PIPE BRKT)
|
2006-2006 |
02 |
|
| 003 |
15794626 |
HOUSING, F/TNK FIL PIPE
| N153 (06) |
2006-2006 |
01 |
|
| 004 |
24300044 |
CAP, F/TNK FIL (ACDelco #GT297)
| N153 (06) (N05) |
2006-2006 |
01 |
|
| 004 |
25827646 |
CAP, F/TNK FIL (ACDelco #GT306)
| N1 |
2006-2006 |
01 |
|
| 005 |
15877575 |
PIPE, F/TNK FIL |
N1 |
2006-2006 |
01 |
| 006 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND)
|
2006-2006 |
01 |
|
| 007 |
09177063 |
CLAMP, F/TNK FIL HOSE (25-40MM CLAMP RANGE) |
N1 |
2006-2006 |
01 |
| 008 |
15259375 |
HOSE, F/TNK FIL |
N1 |
2006-2006 |
01 |
| 009 |
|
TANK, FUEL (SEE GROUP 03.000 ТОПЛИВНЫЙ БАК FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2006 |
|
| 010 |
15087110 |
PIPE, F/TNK FIL VENT (INCLS 14) |
N1 |
2006-2006 |
01 |
| 011 |
|
CANISTER, EVAP EMIS (SEE GROUP 03.000 VAPOR CANISTER LINES ; CANISTER FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2006 |
|
| 012 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082)
|
2006-2006 |
01 |
|
| 013 |
12337820 |
STRAP, 15 TIE STRAP (F/TNK FIL VENT HOSE) (ACDelco #12337820) |
|
2006-2006 |
03 |
| 014 |
12522916 |
RETAINER, EVAP EMIS PIPE (PART OF 10) (BLUE) (INCLS INST SHT ; RET) (USE WITH 5/16 TUBE, NYLON) (3.162)
| N1 |
2006-2006 |
01 |
|
