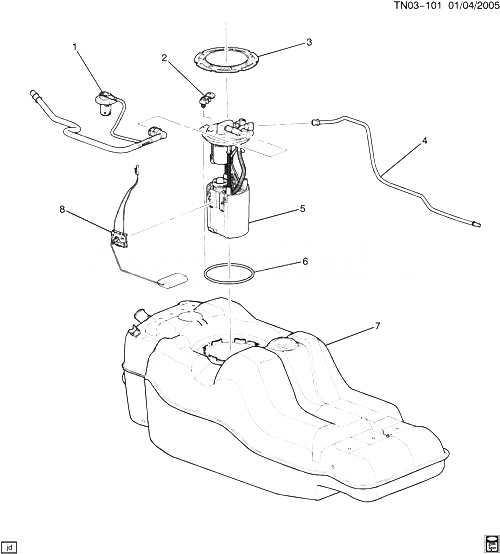

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HOSE, EVAP EMIS (PART OF 7) |
|
2006-2008 |
|
| 002 |
16238399 |
ДАТЧИК, F/TNK PRESS (ACDelco #16238399)
| N153 (06) |
2006-2008 |
01 |
|
| 003 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| N1 |
2006-2010 |
01 |
|
| 004 |
15267307 |
PIPE, FUEL FEED |
N1 |
2006-2007 |
01 |
| 005 |
19133588 |
MODULE KIT, F/TNK F/PMP (INCLS 6) (INCLUDES FUEL LEVEL SENSOR) (ACDelco #MU1473)
| N1 |
2006-2007 |
01 |
|
| 005 |
19133588 |
MODULE KIT, F/TNK F/PMP (INCLS 6) (INCLUDES FUEL LEVEL SENSOR) (3.107) (ACDelco #MU1473)
| N1 |
2006-2007 |
01 |
|
| 006 |
22682111 |
SEAL, FUEL SDR (O RING) (PART OF 5, 8) (135.5 MM ID X 147.5MM OD X 6MMTALL) (ACDelco #G41)
| N1 |
2006-2010 |
01 |
|
| 007 |
|
TANK, FUEL (INCLS 1) |
|
2006-2010 |
|
| 007 |
15833001 |
TANK, FUEL (INCLS 1) |
N1 |
2006-2006 |
01 |
| 008 |
15240784 |
SENSOR KIT, FUEL LVL (INCLS 6) (ACDelco #SK1162)
| N153 |
2006-2008 |
01 |
|
