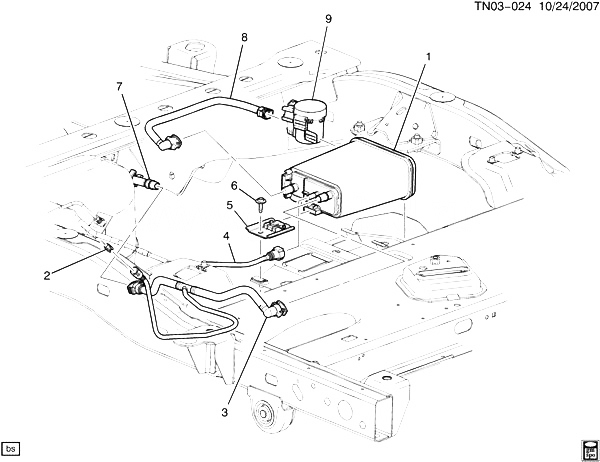

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15166275 |
CANISTER, EVAP EMIS (INCLS 5) (ACDelco #215-465) |
N1 |
2006-2006 |
01 |
| 002 |
12522916 |
RETAINER, EVAP EMIS PIPE (PART OF 3) (BLUE) (INCLS INST SHT ; RET) (USE WITH 5/16 TUBE, NYLON) (3.162)
| N1 |
2006-2010 |
01 |
|
| 003 |
15087110 |
PIPE, F/TNK FIL VENT (INCLS 2) |
N1 |
2006-2006 |
01 |
| 004 |
|
PIPE, BRK ; FUEL FEED ; FUEL RTN ; EVAP EMIS (SEE GROUP 03.000 ТОПЛИВНАЯ СИСТЕМА FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 005 |
15100034 |
BRACKET, EVAP EMIS CNSTR (PART OF 1) (SMALL BRKT) |
N1 |
2006-2010 |
01 |
| 006 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082)
|
2006-2010 |
01 |
|
| 007 |
|
HOSE, EVAP EMIS (SEE GROUP 03.000 ТОПЛИВНЫЙ БАК MOUNTING ; FILLER PIPE FOR DETAILED ILLUSTRATED VIEW) (3.001) |
|
2006-2010 |
|
| 008 |
10386359 |
HOSE, EVAP EMIS (INCLS 9) (TO CANISTER, INCLUDES SOLENOID) (ACDelco #10386359) |
N1 |
2006-2009 |
01 |
| 009 |
|
SOLENOID, EVAP EMIS CNSTR (PART OF 8) |
|
2006-2010 |
|
