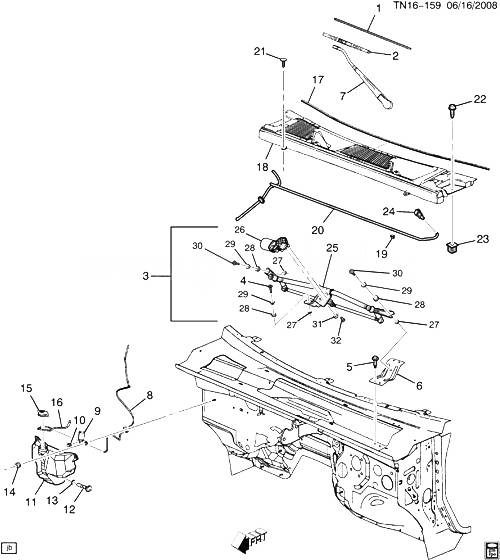

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88944326 |
WIPER, W/S (REFILL) (PART OF 2) (WINDSHIELD)
| N257 |
2008-2009 |
02 |
|
| 002 |
15060730 |
BLADE, WSW (INCLS WIPER AND BLADE) (INCLS 1)
| N257 |
2008-2009 |
02 |
|
| 003 |
25915133 |
MODULE, WSW SYS (INCLS 4, 25-32) |
N2 |
2008-2009 |
01 |
| 004 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (PART OF 3) (ACDelco #11517518)
|
2008-2009 |
04 |
|
| 005 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (WSW SYS MDL) (ACDelco #11517518)
|
2008-2009 |
04 |
|
| 006 |
15073838 |
SUPPORT, WSW SYS MDL |
N2 |
2008-2009 |
01 |
| 007 |
19120890 |
ARM, WSW (10.159)
| N2 |
2008-2009 |
01 |
|
| 007 |
19120891 |
ARM, WSW (10.159) (VEHICLES BUILT PRIOR 02/01/03 MUST REMOVE KEY FROM SPINDLE END OF ARM) |
N2 |
2008-2009 |
01 |
| 008 |
88944334 |
HOSE, WSWA SOLV CNTNR |
N2 |
2008-2009 |
01 |
| 009 |
88944337 |
PUMP, WSWA (INCLS 10) (ACDelco #88944337)
| N2 (06) |
2008-2009 |
01 |
|
| 010 |
88944336 |
GROMMET, WSWA SOLV CNTNR (PART OF 9) |
N2 (06) |
2008-2009 |
01 |
| 011 |
88944338 |
CONTAINER, WSWA SOLV (MAY REQUIRE IN-LINE HOSE CONNECTOR FITTING TO BE REMOVED) |
N2 |
2008-2009 |
01 |
| 012 |
88944331 |
INDICATOR, WSWA SOLV LVL (INCLS 13) |
N2 |
2008-2009 |
01 |
| 013 |
88944332 |
SEAL, WSWA SOLV LVL SW (PART OF 12) |
N2 |
2008-2009 |
01 |
| 014 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (WSWA SOLV CNTNR)
|
2008-2009 |
03 |
|
| 015 |
25731418 |
CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) (10.154) |
N2 |
2008-2009 |
01 |
| 016 |
88944335 |
HOSE, WSWA RESVR TO PUMP |
N2 |
2008-2009 |
01 |
| 017 |
|
SEAL, AIR INL GRL PNL (PART OF 18) |
|
2008-2009 |
|
| 018 |
25921207 |
PANEL, AIR INL GRL (CENTER) (INCLS 17, 19, 20, 24)
| N2 |
2008-2009 |
01 |
|
| 019 |
15078238 |
RETAINER, AIR INL GRL PNL (PART OF 18) (BLACK) (25X15.5) (ALSO REPLACES SILVER) (1.269)
| N2 |
2008-2009 |
04 |
|
| 020 |
15179645 |
HOSE, WSWA NOZ (PART OF 18) |
N2 |
2008-2009 |
01 |
| 021 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (AIR INL GRL PNL)
|
2008-2009 |
02 |
|
| 022 |
15955554 |
БОЛТ, AIR INL GRL PNL (M4.2X1.41X20.0) (PAN HD W/WA) (8.131) |
N2 |
2008-2009 |
02 |
| 023 |
11570654 |
NUT, AIR INL GRL PNL (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) |
N2 |
2008-2009 |
02 |
| 024 |
15173510 |
NOZZLE, WSWA (PART OF 18) (SINGLE FAN SPRAY TYPE)
| N2 |
2008-2009 |
02 |
|
| 025 |
19152886 |
TRANSMISSION, WSW (PART OF 3) (INCLS 27-30) (ACDelco #19152886) |
N2 |
2008-2009 |
01 |
| 026 |
19178992 |
MOTOR, WSW (PART OF 3) (INCLS 31, 32) (ACDelco #19178992) |
N2 |
2008-2009 |
01 |
| 027 |
|
WASHER, WSW MOT AMT (PART OF 3, 25) |
|
2008-2009 |
|
| 028 |
|
GROMMET, WSW ARM PIV (PART OF 3, 25) |
|
2008-2009 |
|
| 029 |
|
BUSHING, WSW ARM SHF (PART OF 3, 25) |
|
2008-2009 |
|
| 030 |
|
БОЛТ, WSW SYS MDL (PART OF 3, 25) |
|
2008-2009 |
|
| 031 |
|
NUT, WSW ; WSWA MOT (PART OF 3, 26) |
|
2008-2009 |
|
| 032 |
|
БОЛТ, WSW MOT THRU (PART OF 3, 26) |
|
2008-2009 |
|
