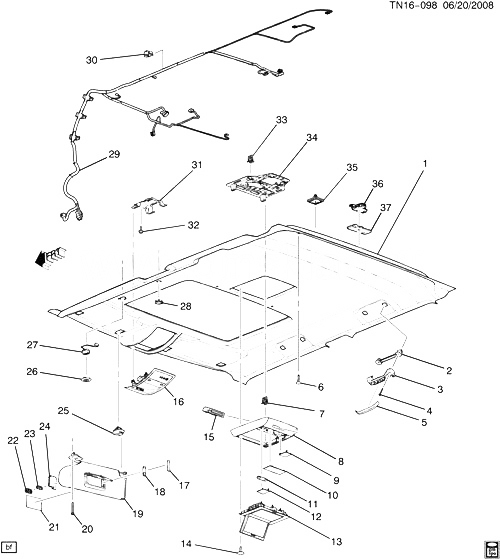

(TN16-098) - 2009 N2(36) ОТДЕЛКА-ИНТЕРЬЕР-ROOF HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19206659 PANEL, HDLNG TR (INCLS 7-12, 15, 25-30, 33, 34, 36, 37) (GRAY) N257 (36) (CF5, CJ2) (EXC U42) 2009-2009 01
001 19206660 PANEL, HDLNG TR (INCLS 7-12, 15, 25-30, 33, 34, 36, 37) (GRAY) (DECONTENTED SERVICE HEADLINER) N257 (36) (CF5, CJ2, U42) 2009-2009 01
002 25825867 SPACER, ASST HDL N2 2009-2009 03
003 15797110 HANDLE, ASST (INCLS 4, 5) (GRAY) (FRONT) N2 2009-2009 01
003 15797112 HANDLE, ASST (INCLS 4, 5) (GRAY) (REAR) N2 2009-2009 01
003 15797114 HANDLE, ASST (INCLS 4, 5) (GRAY) N2 2009-2009 01
004 11569903 SCREW-PAN TORX HD, M6X1X55, 49.55 THD, 11.25 OD, GM6202M STL, GMW3359, TAP (PART OF 3) 2009-2009 02
005 COVER, ASST HDL BOLT (PART OF 3) 2009-2009
006 15126552 RETAINER, HDLNG T/PNL (PUSH IN) (GRAY) (26.3MM ; DIA 6.85) N257 (06-36) (CF5) (EXC U42) 2009-2009 02
007 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1, 8) 2009-2009 04
008 25853058 CONSOLE, RF (PART OF 1) (INCLS 9-15) (GRAY) (DVD CONSOLE) N2 (CF5) 2009-2009 01
008 25898249 CONSOLE, RF (PART OF 1) (INCLS 9-15) (GRAY) N2 (UE1) (EXC CF5) 2009-2009 01
008 25898253 CONSOLE, RF (PART OF 1) (INCLS 9-15) (GRAY) N2 (EXC CF5, UE1) 2009-2009 01
008 25898255 CONSOLE, RF (PART OF 1) (INCLS 9-15) (GRAY) N2 (CF5) (EXC UE1) 2009-2009 01
009 15853941 LENS, VIDEO PLYR R/CON SEN (PART OF 1, 8) (LH DVD PUSH-PUSH) N2 (06-36) (CF5, CJ2, U42) 2009-2009 01
010 15853943 LENS, VIDEO PLYR R/CON SEN (CTR DVD FIXED LENS) (PART OF 1, 8) (CTR DVD FIXED FREEDOM) N2 (06-36) (CF5, CJ2, U42) 2009-2009 01
011 09431809 BULB, 6CP TRADE #212-2 (PART OF 1, 8) (ACDelco #L212-2) 2009-2009 02
012 15853942 LENS, VIDEO PLYR R/CON SEN (PART OF 1, 8) (RH DVD PUSH-PUSH) N2 (06-36) (CF5, CJ2, U42) 2009-2009 01
013 15948136 DISPLAY, VIDEO (GRAY) (LABELED 15948136) (ACDelco #15948136) N2 (U42, 18I, 19I, 24I) 2009-2009 01
013 20792277 DISPLAY, VIDEO (GRAY) (LABELED 20792277) N2 (U42, 18I, 19I, 24I) 2009-2009 01
014 15126552 RETAINER, HDLNG T/PNL (PUSH IN) (GRAY) (26.3MM ; DIA 6.85) N257 (06-36) (CF5) (EXC U42) 2009-2009 02
015 25835387 MODULE, AUDIO SYS XCVR (PART OF 1, 8) (ACDelco #25835387) (LABELLED W/OEM PN 25835387.) N2 (06-36) (CF5, CJ2, U42) 2009-2009 01
016 25853058 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) (DVD CONSOLE) N2 (CF5) 2009-2009 01
016 25898249 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (UE1) (EXC CF5) 2009-2009 01
016 25898251 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (CF5, UE1, Z49) (EXPORT) 2009-2009 01
016 25898253 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (EXC CF5, UE1) 2009-2009 01
016 25898255 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (CF5) (EXC UE1) 2009-2009 01
016 25898257 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (CF5, UE1) (EXC Z49) 2009-2009 01
017 LENS, S/S ILLUM MIR LP (PART OF 19) 2009-2009
018 BULB, S/S ILLUM MIR LP (PART OF 19) 2009-2009
019 25925242 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 17, 18, 20, 21) (GRAY) N2 2009-2009 01
019 25925244 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 17, 18, 20-24) (GRAY) N2 (UG1) 2009-2009 01
019 25925246 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 17, 18, 20, 21) (GRAY) N2 (EXC UG1) 2009-2009 01
020 11561014 SCREW-PAN W/FLAT WASH, M4.2X1.41X35, 28 THD, 8 OD, 6010M STL, GMW4205 (PART OF 19) 2009-2009 03
021 LABEL, INFL RST SYS WRNG (PART OF 19) 2009-2009
022 BEZEL, R/CON M/FUNC XMTR (PART OF 19) 2009-2009
023 PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 19) 2009-2009
024 TRANSMITTER, M/FUNC R/CON (PART OF 19) 2009-2009
025 15877252 RETAINER, S/S (PART OF 1) (GRAY) N2 (50I) 2009-2009 01
025 15877253 RETAINER, S/S (PART OF 1) (GRAY) N2 (50I) 2009-2009 01
026 22666403 BEZEL, MOBILE TEL MIC (PART OF 1) (GRAY) N257 2009-2009 01
027 15264477 MICROPHONE, MOBILE TEL (PART OF 1) (GRAY) N2 2009-2009 01
028 15075507 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 1) (GRAY) N2 2009-2009 01
029 HARNESS, RF ACSRY WRG (PART OF 1) 2009-2009
030 25903301 ASPIRATOR, I/S AIR TEMP SEN (PART OF 1) (ACDelco #15-51256) N2 2009-2009 01
031 25948860 BRACKET, RF CNSL N2 2009-2009 01
032 11561035 BOLT - HVY HEX FLG HD, M6X1.0X16.0, GM1500M (9.8) STL, GMW4205 (RF CNSL BRKT) 2009-2009 02
033 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 1, 34) 2009-2009 02
034 15287715 RETAINER, RF RR CNSL (PART OF 1) (INCLS 33) (DVD BCKPLT - 2ND ROW) (10.225) N2 2009-2009 01
035 15763887 RETAINER, HDLNG FRT T/PNL (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) N257 (36) (CF5) 2009-2009 02
036 25815766 MODULE, ELEK COMPASS (PART OF 1) (LABELED 25815766) N2 (06-36) (CJ2) 2009-2009 01
036 25916726 MODULE, ELEK COMPASS (PART OF 1) (LABELED 25916726) N2 (06-36) (CJ2) 2009-2009 01
037 BRACKET, ELEK COMPASS MDL (PART OF 1) 2009-2009
