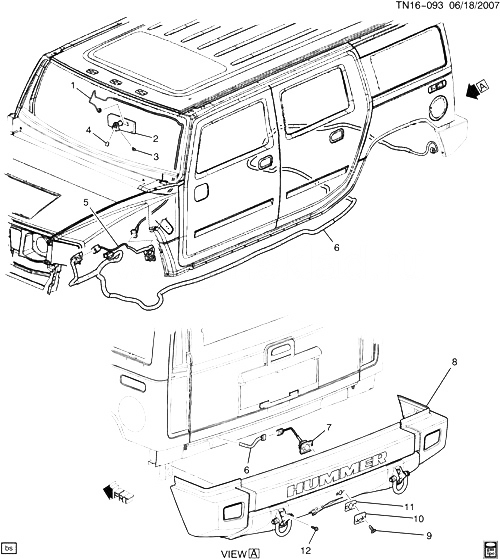

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 02.000 ПРОВОДКА-АКСЕССУАРЫ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 002 |
15271286 |
MIRROR, I/S RR VIEW (INCLS 3) (10.185)
| N2 (UVB, UVC) |
2009-2009 |
01 |
|
| 002 |
25855328 |
MIRROR, I/S RR VIEW (INCLS 3) |
N2 (US9, UVA, UVC) |
2009-2009 |
01 |
| 003 |
|
БОЛТ, I/S RR VIEW MIR (PART OF 2) |
|
2008-2009 |
|
| 004 |
15954649 |
SUPPORT, W/S (PART OF WINDSHIELD, - 16.005) (16.069) |
N2 |
2008-2009 |
01 |
| 005 |
25996271 |
HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
N2 (36) (CHW) |
2009-2009 |
01 |
| 005 |
25996272 |
HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
N2 (06) (CHW) |
2009-2009 |
01 |
| 006 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 007 |
15907724 |
CAMERA, RR VIEW (INCLS BRACKET AND SEAL) |
N2 (UVC) |
2008-2009 |
01 |
| 008 |
19178227 |
ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP (BUMPER W/HOLES FOR RR VISION CAMERA) (W/RIVNUTS) (SEE GROUP 07.000 БАМПЕР ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
N2 (06) |
2008-2009 |
01 |
| 009 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR VIEW CAMERA) |
|
2008-2009 |
02 |
| 010 |
25824442 |
BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (INCLS 11) (LABELED 25824442 OR 15280055) |
N2 (UVC) |
2008-2009 |
01 |
| 011 |
|
SEAL, RR VIEW CAMERA IMAGE DISPLAY MDL) (PART OF 10 |
|
2008-2009 |
|
| 012 |
11561764 |
BOLT - HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR BPR IMP BAR)
|
2008-2009 |
04 |
|
