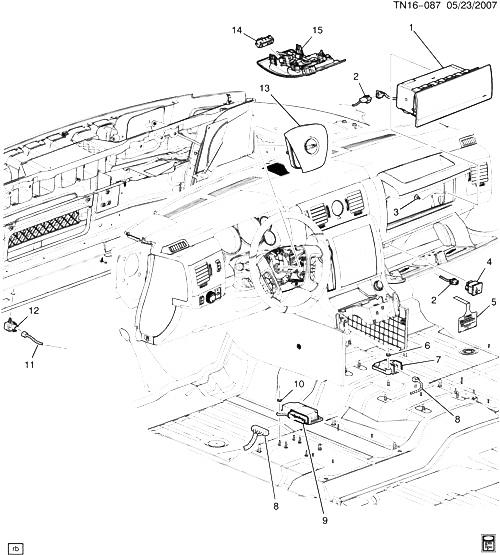

(TN16-087) - 2008-2009 N2 INFLATABLE RESTRAINT SYSTEM HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15241691 MODULE, I/P INFL RST (EBONY) N2 2008-2009 01
002 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
003 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (I/P INFL RST MDL) 2008-2009 04
004 15877344 SWITCH, I/P INFL RST MDL N2 (C99) (EXC Z49) 2008-2009 01
004 15877345 SWITCH, I/P INFL RST MDL N2 (C99, Z49) 2008-2009 01
005 15765539 TAG, INFL RST I/P MDL CAUTION (HANGING) N2 2008-2009 01
006 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (INFL RST VEH ROLLOVER SEN) 2008-2009 03
007 25963388 ДАТЧИК, INFL RST VEH ROLLOVER N2 (ASF) 2009-2009 01
008 HARNESS, BODY WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
009 10366054 MODULE, INFL RST SEN ; DIAGN N2 2008-2009 01
010 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (INFL RST SEN ; DIAGN MDL) 2008-2009 03
011 HARNESS, FWD LP WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/FRONT LAMP FOR DETAILED ILLUSTRATED VIEW) (HAS ADDITIONAL CIRCUIT IN UBEC CONN) 2008-2009
012 10366053 ДАТЧИК, F/END INFL RST DISCRM N2 2008-2009 02
013 25953087 MODULE, STRG WHL INFL RST (EBONY) (16.712) N2 2008-2009 01
013 25953087 MODULE, STRG WHL INFL RST (EBONY) N2 2008-2009 01
014 22625546 INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) (14.865) N2 (06) (UE1) (EXC CF5, Z49) 2008-2009 01
014 22625546 INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) (14.865) N2 (CF5, UE1) (EXC Z49) 2008-2009 01
014 22627868 INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) (14.865) N2 (06) 2009-2009 01
014 22627868 INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) (14.865) N2 (36) (CF5) 2009-2009 01
015 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) 2008-2009
