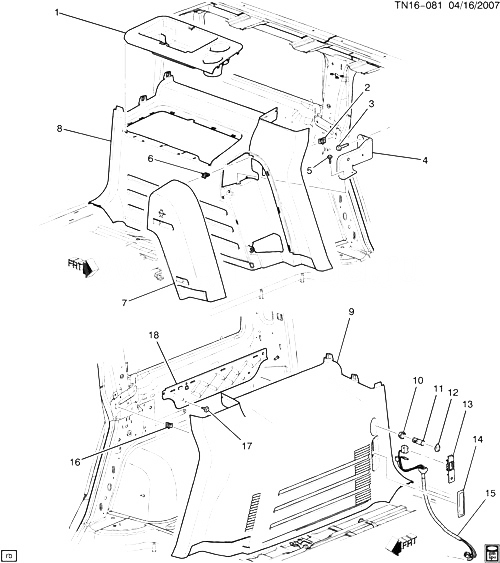

(TN16-081) - 2008-2009 N2(06) ОТДЕЛКА-ИНТЕРЬЕР-BODY SIDE-QUATER DETAIL HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20794441 POCKET, BODY SI T/PNL STOW (BUILT ON OR AFTER 9/26/08) (FOR 1ST DES SEE 25886210) N257 (06) (2ND DES) 2009-2009 01
001 25886210 POCKET, BODY SI T/PNL STOW (BUILT PRIOR TO 9/26/08) (FOR 2ND DES SEE 20794441) N257 (06) (1ST DES) 2009-2009 01
002 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 8) 2008-2009 11
003 11515776 БОЛТ, HFH, M12X1.75X35, 31 THD, 26.6 OD, 10.9 MAT, 7114M FIN, MACH (JK STOW BRKT BR) 2008-2009 02
004 15919576 REINFORCEMENT, JK STOW BRKT N257 (06) 2008-2009 01
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (JK STOW BRKT BR) 2008-2009 01
006 10148727 CLIP, BODY L/PLR T/PNL (PART OF 7) (U-TYPE) (6.760) N257 (06) 2008-2009 05
007 25782245 TRIM, BODY L/PLR (INCLS 6) (EBONY) N257 (06) 2008-2009 01
008 25958044 PANEL, BODY SI TR (INCLS 2) (EBONY) N257 (06) 2009-2009 01
009 25958042 PANEL, BODY SI TR (INCLS 10-12, 14, 16) (EBONY) N257 (06) 2009-2009 01
010 25749635 RETAINER, C/LTR RCPT (PART OF 9, 12) (EBONY) (W/O CAP) N257 (06-36) 2008-2009 01
011 25774623 RETAINER, C/LTR HSG (PART OF 9) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) N257 (06) 2008-2009 01
012 15187371 RECEPTACLE, ACSRY PWR (INCLS 10) (PART OF 9) (EBONY) (INCLS COVER) N257 (06) 2008-2009 01
013 15124700 BEZEL, INFLR AIR SW (EBONY) N257 (06) (ZM6) 2008-2009 01
014 PLUG, BODY SI T/PNL HOLE (PART OF 9) 2008-2009
015 25824560 SWITCH, RR AIR SUSP C/VLV (SEE GROUP 07.000 LEVEL CONTROL SYSTEM FOR DETAILED ILLUSTRATED VIEW) N2 (06) (ZM6) 2008-2009 01
016 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 9) 2008-2009 10
017 11609669 БОЛТ, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (BODY SI T/PNL FRT A/RST) 2008-2009 02
018 25789633 BRACKET, BODY SI T/PNL A/RST N2 (06) 2008-2009 01
