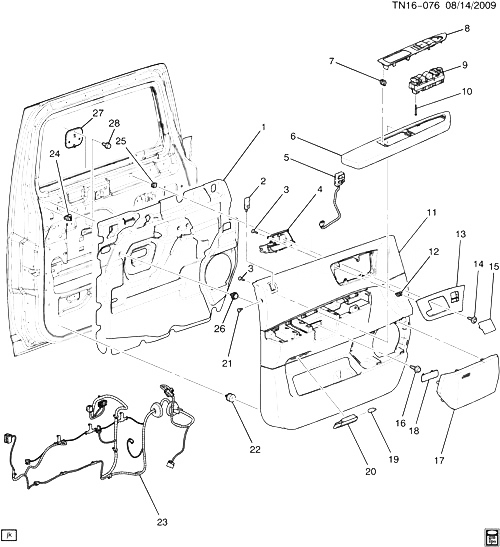

(TN16-076) - 2008-2009 N2 ПЕРЕДНЯЯ БОКОВАЯ ДВЕРЬ-DRIVER HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25848849 DEFLECTOR, FRT S/D WAT N257 2008-2009 01
002 15844616 KNOB, FRT S/D LKG ROD (EBONY) N2 (18I, 19I, 24I) 2008-2009 02
003 11569994 БОЛТ, FRT S/D I/S HDL (PART OF 11) (16.115) N2 2008-2009 08
005 25872364 SWITCH, D/SEAT ADJR MEMORY ; HTR N2 2009-2009 01
005 25872364 SWITCH, D/SEAT ADJR MEMORY ; HTR (16.682) N2 2009-2009 01
006 15794325 ARMREST, FRT S/D (PART OF 11) (EBONY) N2 (19I) (EXC WS2) 2009-2009 01
006 15794327 ARMREST, FRT S/D (PART OF 11) (BRICK) N2 (24I) 2008-2009 01
006 25907952 ARMREST, FRT S/D (PART OF 11) (SHALE) N2 (WS2, 18I) 2009-2009 01
007 16754704 RETAINER, FRT S/D WDO SW TR PLT (10 X 10) (APLQ TO SI PNL) (STEEL) (*KIT1) (10.056) N2 2008-2009 03
008 25943333 PLATE, FRT S/D WDO SW TR (*KIT1) N2 (18I, 19I) 2009-2009 01
008 25943334 PLATE, FRT S/D WDO SW TR (*KIT1) N2 (24I) 2009-2009 01
009 25976511 SWITCH, DR LK ; SI WDO (*KIT1) N2 2009-2009 01
010 11561274 БОЛТ, FRT S/D WDO SW (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (*KIT1) N2 2008-2009 03
011 20823410 PANEL, FRT S/D TR (INCLS 3, 4, 6, 12-14, 17, 19, 20, 22, 26) (BRICK) N2 (24I) (EXC WS2) 2008-2009 01
011 20823412 PANEL, FRT S/D TR (INCLS 3, 4, 6, 12-14, 17, 19, 20, 22, 26) (BRICK) N2 (WS2, 24I) 2009-2009 01
011 25954159 PANEL, FRT S/D TR (INCLS 3, 4, 6, 12-14, 17, 19, 20, 22, 26) (EBONY) N2 (19I) (EXC WS2) 2009-2009 01
011 25954161 PANEL, FRT S/D TR (INCLS 3, 4, 6, 12-14, 17, 19, 20, 22, 26) (SHALE) N257 (06-36) (WS2, 18I) 2009-2009 01
012 16754704 RETAINER, FRT S/D I/S HDL BZL (PART OF 11, 13) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) N257 2008-2009 04
013 25879761 BEZEL, FRT S/D I/S HDL (PART OF 11) (INCLS 12) (SEPIA) N2 (18I, 19I, 24I) (EXC WS2) 2009-2009 01
013 25955684 BEZEL, FRT S/D I/S HDL (PART OF 11) (INCLS 12) (BRONZE) N2 (WS2, 24I) 2009-2009 01
014 11569994 БОЛТ, FRT S/D I/S HDL BZL (PART OF 11) (16.115) N2 2008-2009 02
015 25947305 COVER, FRT S/D I/S HDL BZL FIN (ALLY) N2 2008-2009 01
016 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT S/D T/PNL) 2008-2009 02
017 15924040 COVER, RDO FRT S/D SPKR OPG (PART OF 11) (EBONY) N2 (18I, 19I, 24I) 2009-2009 01
018 25853514 COVER, FRT S/D PULL HDL (EBONY) (16.166) N2 (19I) 2008-2009 02
018 25853515 COVER, FRT S/D PULL HDL (BRICK) (16.166) N2 (24I) 2008-2009 02
019 09425542 BULB, LAMP #192 (PART OF 11, 20) (ACDelco #L168) 2008-2009 01
020 15021517 LAMP, FRT S/D CTSY (PART OF 11) (INCLS 19) (RED AND CLEAR) (INCLUDES SOCKET AND BULB) N2 2009-2009 01
021 22690838 RETAINER, FRT S/D T/PNL (PUSH IN) (EBONY) (14.683) N257 (06-36) 2008-2009 02
022 11589089 RETAINER, FRT S/D T/PNL (PART OF 11) (GRAY) (15.7 LENGTH) (19.5 HEAD) (FITS 9.1 HOLE) (14.683) N257 2008-2009 16
023 25904938 HARNESS, FRT S/D DR WRG N2 2008-2009 01
024 22675533 BRACKET, FRT S/D T/PNL (14.683) N257 (06-36) 2008-2009 02
025 11588574 NUT, PUSH IN, M6X1, SAE1050, GM7114M (FRT S/D I/S HDL) 2008-2009 01
026 11562256 RETAINER, FRT S/D T/PNL (PART OF 11) (19.5MM X 28.3MM X 1.3MM) N257 (06-36) 2008-2009 04
027 25845887 BRACKET, FRT S/D A/RST N2 2008-2009 02
028 20664092 RETAINER, FRT S/D A/RST BRKT BOLT (PUSH ON) (BLACK) (6.3MM DIA X 23MM) (1.276) N2 2008-2009 02
K01 25923191 BEZEL, FRT S/D WDO SW (INCLS 7-10) (EBONY) N2 (18I, 19I) 2009-2009 01
K01 25923192 BEZEL, FRT S/D WDO SW (INCLS 7-10) (BRICK) N2 (24I) 2008-2009 01
