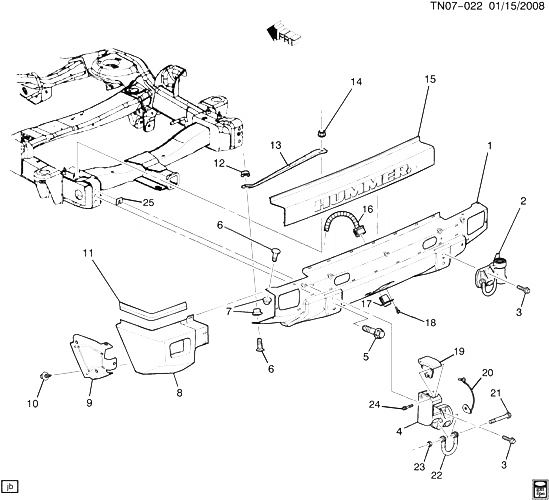

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19178227 |
ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP (BUMPER W/HOLES FOR RR VISION CAMERA) (W/RIVNUTS) (PAINT TO MATCH) |
N2 (06) |
2007-2009 |
01 |
| 002 |
15267627 |
HINGE, SPA WHL CARR |
N257 |
2007-2009 |
01 |
| 003 |
11561764 |
BOLT - HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR BPR IMP BAR)
|
2007-2009 |
05 |
|
| 004 |
25864506 |
LATCH, SPA WHL CARR (INCLS 19-22) |
N257 |
2007-2009 |
01 |
| 005 |
11589032 |
БОЛТ, M10X1.5X30 (RR BPR IMP BAR) |
|
2007-2009 |
02 |
| 006 |
11519771 |
БОЛТ, RD HD W/SQ NK, M10X1.5X25, 17 THD, 23.3 O.D., 10.9, 7114M (RR BPR IMP BAR)
|
2007-2009 |
10 |
|
| 007 |
11516781 |
ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (RR BPR IMP BAR) (8.917)
|
2007-2009 |
08 |
|
| 008 |
89026959 |
FILLER, БАМПЕР ЗАДНИЙ (INCLS 11)
| N2 (06) |
2007-2009 |
01 |
|
| 008 |
89026960 |
FILLER, БАМПЕР ЗАДНИЙ (INCLS 11)
| N2 (06) |
2007-2009 |
01 |
|
| 009 |
12335669 |
SUPPORT, БАМПЕР ЗАДНИЙ FIL
| N2 |
2007-2009 |
01 |
|
| 009 |
12335670 |
SUPPORT, БАМПЕР ЗАДНИЙ FIL |
N2 |
2007-2009 |
01 |
| 010 |
10134407 |
RETAINER, БАМПЕР ЗАДНИЙ FASCIA (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272)
| N2 (06) |
2007-2009 |
06 |
|
| 011 |
12335676 |
MOLDING, БАМПЕР ЗАДНИЙ IMP BAR (PART OF 8) |
N2 (06) |
2007-2009 |
01 |
| 011 |
12335677 |
MOLDING, БАМПЕР ЗАДНИЙ IMP BAR (PART OF 8)
| N2 (06) |
2007-2009 |
01 |
|
| 012 |
10255857 |
ГАЙКА, HFH, 10X1.5, 6H THD, 9.8THK, 21.3 O.D., 10, PZOR (RR BPR FASCIA OTR BRKT) (8.917)
|
2007-2009 |
02 |
|
| 013 |
15115463 |
BRACKET, БАМПЕР ЗАДНИЙ FASCIA OTR |
N2 |
2007-2009 |
01 |
| 013 |
15115464 |
BRACKET, БАМПЕР ЗАДНИЙ FASCIA OTR |
N2 |
2007-2009 |
01 |
| 014 |
11514598 |
ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (RR BPR FASCIA OTR BRKT)
|
2007-2009 |
02 |
|
| 015 |
89026784 |
FASCIA, БАМПЕР ЗАДНИЙ UPR
| N2 (06) |
2007-2009 |
01 |
|
| 016 |
25888231 |
HARNESS, CHAS WRG |
N2 (06) (ZM6) (EXC UVC) |
2008-2009 |
01 |
| 016 |
25888232 |
HARNESS, CHAS WRG |
N2 (06) (Z83) (EXC UVC) |
2008-2009 |
01 |
| 016 |
25904948 |
HARNESS, CHAS WRG |
N2 (06) (UVC, Z83) |
2008-2009 |
01 |
| 016 |
25904949 |
HARNESS, CHAS WRG |
N2 (06) (UVC, ZM6) |
2008-2009 |
01 |
| 017 |
15162416 |
RECEPTACLE, TOW VEH ELEC
| N2 |
2008-2009 |
01 |
|
| 018 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (TRLR RR WRG HARN RCPT PLT)
|
2007-2009 |
01 |
|
| 019 |
15894724 |
HOOK, SPA WHL CARR (PART OF 4) (INCLUDES STRIKER) |
N257 |
2007-2009 |
01 |
| 020 |
25864507 |
CABLE, SPA WHL CARR HOOK (PART OF 4) |
N257 |
2007-2009 |
01 |
| 021 |
11562051 |
БОЛТ, HFH, M16X2X140, 30 THD, 30.5 OD, 10.9, GMW4205, BLACK (PART OF 4) |
|
2007-2009 |
02 |
| 022 |
|
EYE, RR TOW (PART OF 4) |
|
2007-2009 |
|
| 023 |
11589152 |
ГАЙКА, HEX, M16X2X15, 10, GMW4205, BLACK (SPA WHL CARR) |
|
2007-2009 |
02 |
| 024 |
11516343 |
БОЛТ, HFH, M8X1.25X60, 15 THD, 18 OD, 9.8 MAT, 7114M (ELEK BRK CONT MDL BRKT) |
|
2007-2009 |
02 |
| 025 |
15928186 |
SHIM, БАМПЕР ЗАДНИЙ IMP BAR (1.9MM) |
N2 |
2007-2009 |
AR |
