| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

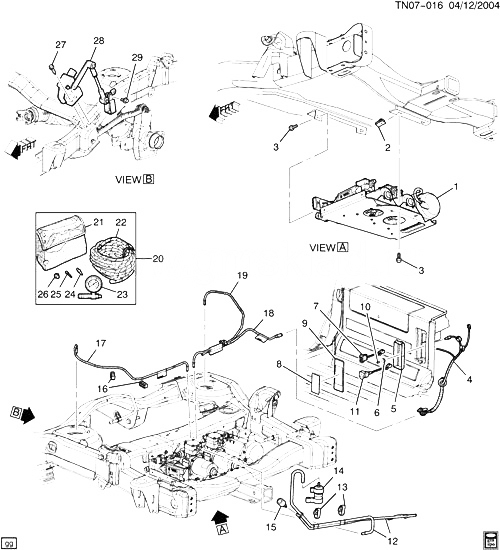

| 001 |
|
COMPRESSOR, AUTO LVL CONT AIR (SEE GROUP 07.000COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2009 |
|
| 002 |
10297656 |
NUT, AUTO LVL CONT AIR CMPR (7.068) |
N2 (ZM6) |
2008-2009 |
02 |
| 003 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (AUTO LVL CONT AIR CMPR) (T/W 12345493)
|
2005-2009 |
04 |
|
| 004 |
25829123 |
HARNESS, S/LP SW WRG (INCLS 6, 10) |
N2 (36) (ZM6) |
2008-2009 |
01 |
| 005 |
88980254 |
BOX, ACSRY CMP |
N2 (36) |
2005-2009 |
01 |
| 006 |
|
NUT, S/LP SW WRG HARN CLIP (PART OF 4) |
|
2005-2009 |
|
| 007 |
15094155 |
SWITCH, INFLR AIR |
N2 (36) (ZM6) (EXC C4E) |
2009-2009 |
01 |
| 007 |
20845343 |
SWITCH, INFLR AIR |
N2 (36) (C4E, ZM6) (EXPORT) |
2009-2009 |
01 |
| 008 |
15082061 |
LABEL, PORTABLE FUEL CONTAINER FIL WRNG |
N2 (36) |
2005-2009 |
01 |
| 009 |
88980255 |
COVER, CARGO BOX STOW BOX ACC HOLE |
N2 (36) |
2005-2009 |
01 |
| 010 |
|
CAP, S/LP SW WRG HARN (PART OF 4) |
|
2005-2009 |
|
| 011 |
15186332 |
RECEPTACLE, ACSRY PWR (2 TERMINALS) |
N2 (36) |
2008-2009 |
01 |
| 012 |
15925802 |
TUBE, AUTO LVL CONT AIR CMPR INL (INCLS 13-15) |
N2 (ZM6) |
2006-2009 |
01 |
| 013 |
|
CLIP, RR BRK FRT PIPE (PART OF 12) |
(JH6) |
2005-2009 |
|
| 014 |
|
FILTER, AUTO LVL CONT AIR CMPR INLT (PART OF 12) |
|
2005-2009 |
|
| 015 |
|
CAP, AUTO LVL CONT AIR CMPR INLT (PART OF 12) |
|
2005-2009 |
|
| 016 |
|
CLIP, RR BRK FRT PIPE (PART OF 17) |
(JH6) |
2005-2009 |
|
| 017 |
15178511 |
TUBE, AUTO LVL CONT AIR CMPR (INCLS 16)
| N2 (ZM6) |
2006-2009 |
01 |
|
| 018 |
15178511 |
TUBE, AUTO LVL CONT AIR CMPR
| N2 (ZM6) |
2006-2009 |
01 |
|
| 019 |
25903601 |
TUBE, AUTO LVL CONT AIR CMPR
| N2 (ZM6) |
2006-2009 |
01 |
|
| 020 |
10433823 |
TOOL KIT, ACSRY (INCLS 21-26) (INCLS BAG, HOSE, CHUCK, NEEDLE, NOZZLE) |
N2 (ZM6) |
2008-2009 |
01 |
| 021 |
|
BAG, ACSRY TOOL KIT (PART OF 20) |
|
2005-2009 |
|
| 022 |
|
HOSE, INFLR (PART OF 20) |
|
2005-2009 |
|
| 023 |
|
GAGE, TIRE PRESS (PART OF 20) |
|
2005-2009 |
|
| 024 |
|
NEEDLE, INFLR HOSE (PART OF 20) |
|
2005-2009 |
|
| 025 |
|
NEEDLE, INFLR HOSE (PART OF 20) |
|
2005-2009 |
|
| 026 |
|
CHUCK, INFLR HOSE (PART OF 20) |
|
2005-2009 |
|
| 027 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (AUTO LVL CONT SEN)
|
2005-2009 |
04 |
|
| 028 |
15124929 |
ДАТЧИК, AUTO LVL CONT
| N2 (ZM6) |
2005-2009 |
01 |
|
| 028 |
15124930 |
ДАТЧИК, AUTO LVL CONT
| N2 (ZM6) |
2005-2009 |
01 |
|
| 029 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (AUTO LVL CONT SEN LINK BRKT) (T/W 12345493 REPLCS 25534835)
|
2005-2009 |
02 |
|
