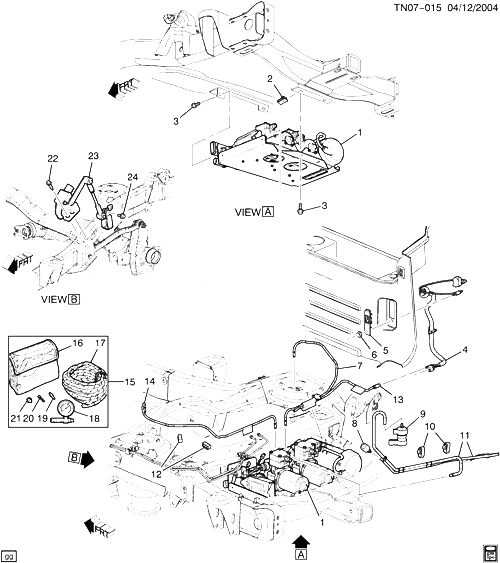

(TN07-015) - 2005-2009 N2(06) LEVEL CONTROL SYSTEM/AUTOMATIC (ZM6) HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COMPRESSOR, AUTO LVL CONT AIR (SEE GROUP 07.000COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) 2005-2009
002 10297656 NUT, AUTO LVL CONT AIR CMPR (7.068) N2 (ZM6) 2008-2009 02
003 11515767 БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (AUTO LVL CONT AIR CMPR) (T/W 12345493) 2005-2009 04
004 25824560 SWITCH, RR AIR SUSP C/VLV (INCLS 6) N2 (06) (ZM6) 2008-2009 01
005 15124700 BEZEL, INFLR AIR SW (EBONY) N257 (06) (ZM6) 2005-2009 01
006 NUT, S/LP SW WRG HARN CLIP (PART OF 4) 2005-2009
007 15178511 TUBE, AUTO LVL CONT AIR CMPR N2 (ZM6) 2006-2009 01
008 CAP, AUTO LVL CONT AIR CMPR INLT (PART OF 11) 2005-2009
009 FILTER, AUTO LVL CONT AIR INLT (PART OF 11) 2005-2009
010 CLIP, RR BRK FRT PIPE (PART OF 11) (JH6) 2005-2009
011 15925802 TUBE, AUTO LVL CONT AIR CMPR INL (INCLS 8-10) N2 (ZM6) 2006-2009 01
012 CLIP, RR BRK FRT PIPE (PART OF 14) (JH6) 2005-2009
013 25903601 TUBE, AUTO LVL CONT AIR CMPR N2 (ZM6) 2006-2009 01
014 15178511 TUBE, AUTO LVL CONT AIR CMPR (INCLS 12) N2 (ZM6) 2006-2009 01
015 10433823 TOOL KIT, ACSRY (INCLS 16-21) (INCLS BAG, HOSE, CHUCK, NEEDLE, NOZZLE) N2 (ZM6) 2008-2009 01
016 BAG, ACSRY TOOL KIT (PART OF 15) 2005-2009
017 HOSE, INFLR (PART OF 15) 2005-2009
018 GAGE, TIRE PRESS (PART OF 15) 2005-2009
019 NEEDLE, INFLR HOSE (PART OF 15) 2005-2009
020 NEEDLE, INFLR HOSE (PART OF 15) 2005-2009
021 CHUCK, INFLR HOSE (PART OF 15) 2005-2009
022 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (AUTO LVL CONT SEN) 2005-2009 04
023 15124929 ДАТЧИК, AUTO LVL CONT N2 (ZM6) 2005-2009 01
023 15124930 ДАТЧИК, AUTO LVL CONT N2 (ZM6) 2005-2009 01
024 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (AUTO LVL CONT SEN LINK BRKT) (T/W 12345493 REPLCS 25534835) 2005-2009 02
