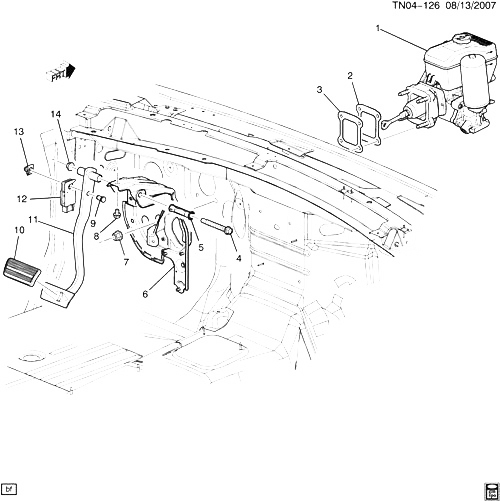

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25928352 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (INCLS 2, 3) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VEIW) |
N2 (JL4) |
2009-2009 |
01 |
| 002 |
25821319 |
GASKET, BRK M/CYL SPCR (PART OF 1) |
N2 (JL4) |
2008-2009 |
01 |
| 003 |
25821318 |
GASKET, BRK M/CYL ADAP (PART OF 1) |
N2 (JL4) |
2008-2009 |
01 |
| 004 |
15000145 |
БОЛТ, BRK PED PIV (12X1.75X120, 25) |
N2 (JH6) |
2008-2009 |
01 |
| 005 |
15200851 |
BUSHING, BRK PED PIV
| N2 (JH6) |
2008-2009 |
01 |
|
| 006 |
25863989 |
BRACKET, BRK ; ACCEL PED (ПЕДАЛЬ ТОМОЗА) |
N2 (JH6) |
2008-2009 |
01 |
| 007 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| N2 (JH6) |
2008-2009 |
04 |
|
| 008 |
11515763 |
БОЛТ, HFH, M10X1.5X16, 21.5 O.D., MACH PT, 9.8, 7114 (BRK PED BRKT) |
|
2008-2009 |
01 |
| 009 |
|
PIN, BRK PED PUSH ROD CLV (PART OF 11) |
|
2008-2009 |
|
| 010 |
15706042 |
COVER, BRK PED (PART OF 11) |
N257 (JH6) |
2008-2009 |
01 |
| 011 |
15906963 |
ПЕДАЛЬ, ТОРМОЗА (INCLS 9, 10) |
N2 (JH6) |
2008-2009 |
01 |
| 012 |
15861245 |
SWITCH, S/LP (ACDelco #D1586H)
| N2 |
2008-2009 |
01 |
|
| 013 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
N2 (JH6) |
2008-2009 |
01 |
| 014 |
11514598 |
ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (BRK PED PIV)
|
2008-2009 |
01 |
|
