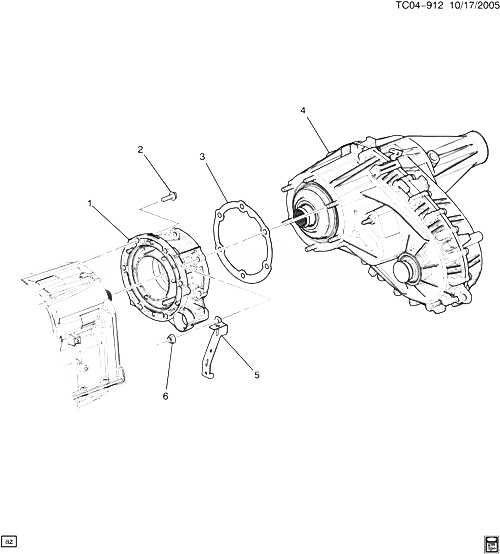

(TC04-912) - 2008-2009 N2 КАРТЕР И КРЫШКИ КОРОБКИ ПЕРЕДАЧ ADAPTER (MYC) HUMMER - H2 SUV 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 24241166 | ADAPTER, TRFER CASE | N2 (MYC) | 2008-2009 | 01 |
| 002 | 11515767 | БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRFER CASE ADAP) (T/W 12345493)|
| 2008-2009 |
06 |
|
| 003 | 24245110 | GASKET, TRFER CASE ADAP| N2 |
2009-2009 |
01 |
|
| 004 | 24245162 | CASE, TRFER (W/GEARS) (CODE EC, HP, MN) | N2 (MYC) | 2009-2009 | 01 |
| 005 | 15124945 | BRACKET, FUEL FEED ; EVAP EMIS ; RTN HOSE | N2 | 2008-2009 | 01 |
| 006 | 15709703 | ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (TRFER CASE)|
| 2008-2009 |
01 |
|
