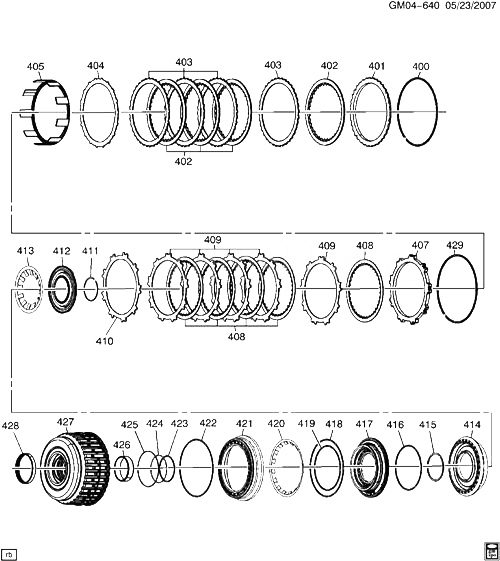

(GM04-640) - 2008-2009 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (MYC) (6L80) 1-2-3-4 3-5 REVERSE CLUTCH ASSEMBLY HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
400 24240197 RING, 1-2-3-4 CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) N2 (MYC) 2008-2009 01
400 24240198 RING, 1-2-3-4 CLU BKG PLT RET (PURPLE) (2.69-2.79) (ACDelco #24240198) N2 (MYC) 2008-2009 01
400 24240199 RING, 1-2-3-4 CLU BKG PLT RET (BLUE) (2.96-3.06) N2 (MYC) 2008-2009 01
400 24240200 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (3.23-3.33) N2 (MYC) 2008-2009 01
400 24240201 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.50-3.60) (ACDelco #24240201) N2 (MYC) 2008-2009 01
401 24224149 PLATE, 3-5 REV CLU BKG N2 (MYC) 2008-2009 01
402 24235681 PLATE, 3-5/REV CLU (PKG OF 5) (FIBER) N2 (MYC) 2008-2009 04
403 24232498 PLATE, 3-5 REV CLU (PKG OF 5) (STEEL) N2 (MYC) 2008-2009 04
404 24239828 PLATE, 3-5 REV CLU (WAVED) N2 (MYC) 2008-2009 01
405 24224633 RING, 3-5-REV CLU APPLY (ACDelco #24224633) N2 (MYC) 2008-2009 01
407 24222632 PLATE, 1-2-3-4 CLU BKG N2 (MYC) 2008-2009 01
408 24224147 PLATE, 1-2-3-4 CLU (PKG OF 6) (FIBER) N2 (MYC) 2008-2009 05
409 24238701 PLATE, 1-2-3-4 CLU (STEEL) N2 (MYC) 2008-2009 05
410 24239615 PLATE, 1-2-3-4 CLU (WAVED) N2 (MYC) 2008-2009 01
411 RING, 1-2-3-4 CLU PSTN DAM RET (*KIT1, KIT2) 2008-2009
412 24224708 DAM, 1-2-3-4 CLU PSTN N2 (MYC) 2008-2009 01
413 24224707 SPRING, 1-2-3-4 CLU N2 (MYC) 2008-2009 01
414 24238700 PISTON, 1-2-3-4 CLU N2 (MYC) 2008-2009 01
415 RING, 1-2-3-4 CLU PSTN HSG RTN (*KIT1, KIT2) 2008-2009
416 SEAL, 1-2-3-4 CLU PSTN (*KIT1, KIT3) 2008-2009
417 24238698 HOUSING, 1-2-3-4 CLU PSTN (ACDelco #24238698) N2 (MYC) 2008-2009 01
418 SEAL, 3-5/REV CLU PSTN DAM (O RING) (*KIT1, KIT3) 2008-2009
419 SEAL, 3-5-REV CLU PSTN INR (*KIT1, KIT3) 2008-2009
420 24237308 SPRING, 3-5-REV CLU N2 (MYC) 2008-2009 01
421 24238696 PISTON, 3-5/REV CLU (ACDelco #24238696) N2 (MYC) 2008-2009 01
422 SEAL, 3-5-REV CLU PSTN OTR (*KIT3) 2008-2009
423 SEAL, 1-2-3-4 CLU PSTN INR (*KIT1, KIT3) 2008-2009
424 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2008-2009
425 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2008-2009
426 BUSHING, 1-2-3-4 ; 3-5/REV CLU HSG RR (PART OF 427) 2008-2009
427 24237185 HOUSING, 1-2-3-4 ; 3-5 REV CLU (INCLS 426) (ORDER T/W 24226393) N2 (MYC) 2008-2009 01
428 24226393 BEARING, 1-2-3-4 ; 3-5-REV CLU N2 (MYC) 2008-2009 01
429 24240197 RING, 1-2-3-4 CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) N2 (MYC) 2008-2009 01
429 24240198 RING, 1-2-3-4 CLU BKG PLT RET (PURPLE) (2.69-2.79) (ACDelco #24240198) N2 (MYC) 2008-2009 01
429 24240199 RING, 1-2-3-4 CLU BKG PLT RET (BLUE) (2.96-3.06) N2 (MYC) 2008-2009 01
429 24240200 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (3.23-3.33) N2 (MYC) 2008-2009 01
429 24240201 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.50-3.60) (ACDelco #24240201) N2 (MYC) 2008-2009 01
K01 24236927 SEAL KIT, A/TRNS SERV (INCLS 411, 415, 416, 419, 423-425) (CNTRL SOL VLV ASM) (ACDelco #24236927) N2 (MYC) 2008-2009 01
K02 24237851 RING KIT, RET (INCLS 411, 415) (1234 DAM, 1234 HSG, 456 DAM) (4.224) N2 (MYC) 2008-2009 01
K03 24243898 SEAL KIT, A/TRNS SERV (INCLS 416, 418, 419, 422-425) (CLUTCHES) (ACDelco #24243898) N2 (MYC) 2008-2009 01
