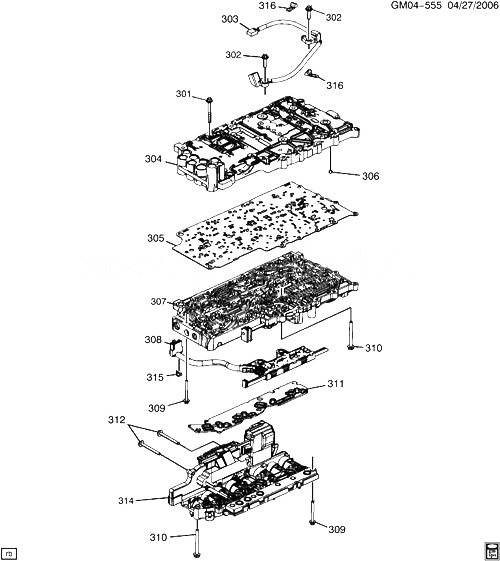

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 301 |
24227130 |
БОЛТ, C/VLV UPR BODY (M5X0.8X36) |
N2 (MYC) |
2008-2009 |
12 |
| 302 |
24225398 |
БОЛТ, A/TRNS INPUT ; OUTPUT SPD SEN (M6 X 1.0 X 20) |
N2 (L9H, MYC) |
2009-2009 |
02 |
| 303 |
24238417 |
ДАТЧИК, A/TRNS INPUT ; OUTPUT SPD (INCLS 316) (4.329)
| N2 (MYC) |
2008-2009 |
01 |
|
| 303 |
24238417 |
ДАТЧИК, A/TRNS INPUT ; OUTPUT SPD (INCLS 316)
| N2 (MYC) |
2008-2009 |
01 |
|
| 304 |
24231442 |
BODY, C/VLV UPR (MUST USE T/W 24236934/PLATE KIT - CONT SOL VLV FLTR) |
N2 (MYC) |
2008-2009 |
01 |
| 305 |
24245720 |
PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24245720)
| N2 (MYC) |
2008-2009 |
01 |
|
| 306 |
96020431 |
VALVE, C/VLV BODY BALL CHK
| N2 (MYC) |
2008-2009 |
07 |
|
| 307 |
24250384 |
BODY, C/VLV LWR (SEE GROUP 04.000 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП/LOWER КЛАПАН УПРАВЛЕНИЯ BODY FOR DETAILED ILLUSTRATED VIEW) (MANUAL VALVE NOT INCLUDED) (MUST USE T/W 24236934/PLATE KIT - CONT SOL VLV FLTR) |
N2 (MYC) |
2008-2009 |
01 |
| 308 |
24246427 |
SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH)
| N2 (MYC) |
2008-2009 |
01 |
|
| 309 |
24224821 |
БОЛТ, C/VLV LWR BODY (M5X0.8X45) |
N2 (MYC) |
2008-2009 |
10 |
| 310 |
24224822 |
БОЛТ, C/VLV LWR BODY (M5X0.8X55) |
N2 (MYC) |
2008-2009 |
06 |
| 311 |
24236934 |
PLATE KIT, CONT SOL VLV FLTR
| N2 (MYC) |
2008-2009 |
01 |
|
| 312 |
24240845 |
БОЛТ, CONT SOL VLV HEAT SINK (W/ BODY ; TCM) (M5X0.8X53.0) |
N2 (MYC) |
2008-2009 |
02 |
| 314 |
24241890 |
VALVE, CONT SOL (W/ BODY ; TCM) (ACDelco #24241890) (ORDER T/W 24236927 SEAL KIT)
| N2 (MYC) |
2008-2009 |
01 |
|
| 315 |
|
CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) |
|
2008-2009 |
|
| 316 |
24236504 |
CLIP, A/TRNS INPUT ; OUTPUT SPD SEN WRG HARN (PART OF 303) |
N2 (MYC) |
2008-2009 |
02 |
