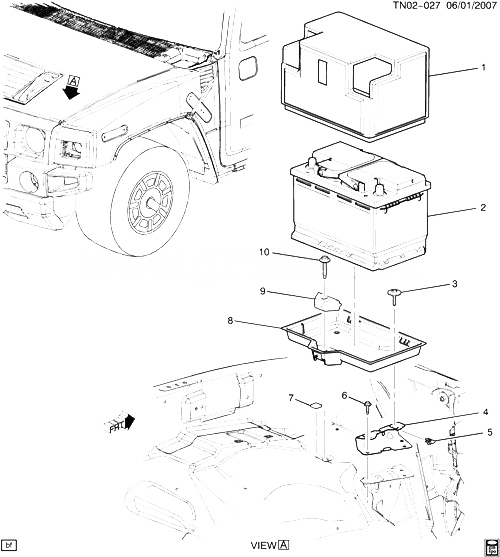

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25839606 |
INSULATOR, BAT |
N2 |
2008-2009 |
01 |
| 002 |
89022169 |
BATTERY, (CCA 770) (TOP POST) (277X174X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING ; PRICING INFO) (ACDelco #48-7YR) (PROFESSIONAL - 7 YR) |
N257 (06-36) (L9H) |
2009-2009 |
01 |
| 003 |
22646888 |
БОЛТ, BAT TRAY (M6X1.0X28) (12.184) |
N2 |
2008-2009 |
04 |
| 004 |
15243408 |
SUPPORT, BAT TRAY OTR |
N2 |
2008-2009 |
01 |
| 005 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (BAT TRAY BRKT) |
|
2008-2009 |
02 |
| 006 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM BRKT)
|
2008-2009 |
03 |
|
| 007 |
15859306 |
SPACER, BAT TRAY |
N2 |
2008-2009 |
02 |
| 008 |
25856001 |
TRAY, BAT
| N2 |
2008-2009 |
01 |
|
| 009 |
14005061 |
RETAINER, BAT HOLDN (PLASTIC)
| N2 |
2008-2009 |
01 |
|
| 010 |
11518631 |
БОЛТ, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (BAT HOLDN RET) |
|
2008-2009 |
01 |
