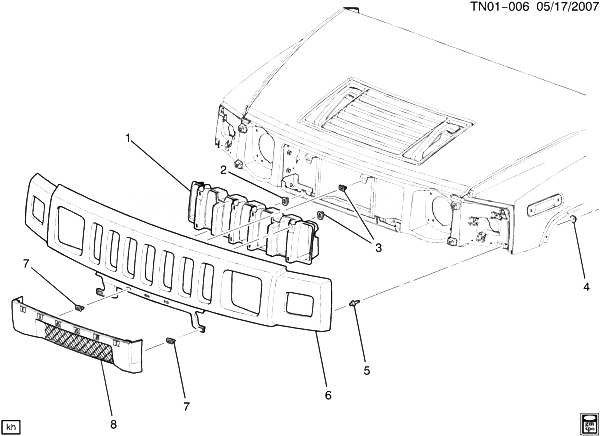

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25886171 |
COVER, RAD GRL OPG (PART OF 6) |
N2 |
2008-2009 |
01 |
| 002 |
15078238 |
CLIP, RAD GRL (PART OF 6) (BLACK) (25X15.5) (ALSO REPLACES SILVER)
| N2 |
2008-2009 |
02 |
|
| 003 |
15162843 |
CLIP, RAD GRL UPR (PART OF 6) |
N2 |
2008-2009 |
02 |
| 004 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RAD GRL)
|
2008-2009 |
04 |
|
| 005 |
11588458 |
STUD, DBL END 6-LOBED W/COLLAR M6X1X28.8 GM6010M GM613M (PART OF 6) |
|
2008-2009 |
04 |
| 006 |
25886172 |
GRILLE, RAD (INCLS 1-3, 5) |
N2 (EXC WS2) |
2008-2009 |
01 |
| 006 |
25911056 |
GRILLE, RAD (INCLS 1-3, 5) (TITANIUM CHROME) (GRILLE ONLY) |
N2 (WS2) |
2009-2009 |
01 |
| 006 |
25962362 |
GRILLE, RAD (INCLS 1-3, 5) (SILVER) |
N2 (WS2) |
2008-2009 |
01 |
| 007 |
15078238 |
RETAINER, RAD GRL (LOWER GRILLE) (PART OF 8) (BLACK) (25X15.5) (ALSO REPLACES SILVER)
| N2 |
2008-2009 |
04 |
|
| 007 |
15078238 |
RETAINER, RAD GRL (PART OF 8) (BLACK) (25X15.5) (ALSO REPLACES SILVER) (1.269) (SERV CMP OF GUARD PKG 12498157)
| N2 |
2008-2009 |
04 |
|
| 008 |
15078155 |
GRILLE, RAD LWR (INCLS 7) (1.266) (SERV CMP OF GUARD PKG 12498157)
| N2 (EXC V20) |
2008-2009 |
01 |
|
| 008 |
25833198 |
GRILLE, RAD LWR (INCLS 7) |
N257 (V20, V25, V3F) |
2008-2009 |
01 |
| 008 |
25833199 |
GRILLE, RAD LWR (INCLS 7) |
N257 (EXC V20, V25, V3F) |
2008-2009 |
01 |
