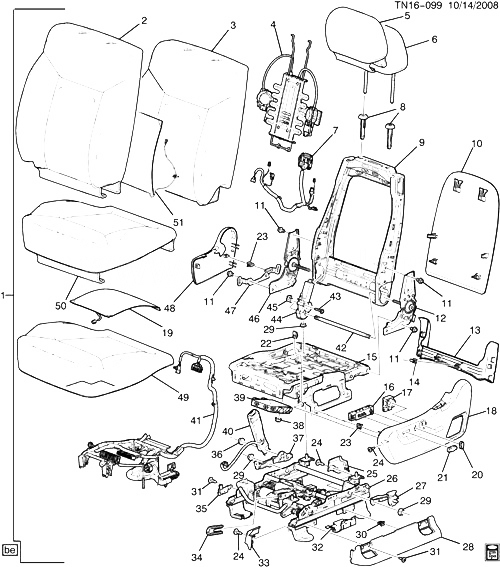

(TN16-099) - 2008-2009 N2 СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET (AR9) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19127565 SEAT, DRVR (W/BELT) (BRICK) N2 (AR9, 242) 2008-2008 01
001 19127566 SEAT, DRVR (EBONY) N2 (AR9, 192) 2008-2008 01
002 19127574 COVER, D/SEAT BK CUSH (BRICK) N2 (AR9, 242) 2008-2009 01
002 19127575 COVER, D/SEAT BK CUSH (EBONY) N2 (AR9, 192) 2008-2009 01
003 19127584 PAD, D/SEAT BK CUSH N2 (AR9) 2008-2009 01
004 20763139 LUMBAR SUB, D/SEAT (PART OF 9) (POWER) (HEAT ONLY) N2 (AR9) 2008-2009 01
005 COVER, D/SEAT H/RST (PART OF 6) 2008-2009
006 19127967 RESTRAINT, D/SEAT HD (INCLS 5) (BRICK) N2 (AR9, 242) 2008-2009 01
006 19127968 RESTRAINT, D/SEAT HD (INCLS 5) (EBONY) N2 (AR9, 192) 2008-2009 01
007 15911812 HARNESS, D/SEAT ADJR WRG (W/LMBR/MEM/HEAT W/O SPS) N2 (AR9) 2008-2008 01
008 19127591 GUIDE, D/SEAT H/RST (BRICK) (W/O BUTTON) N2 (AR9, 242) 2008-2009 01
009 25808717 FRAME, D/SEAT BK CUSH (INCLS 4, 11, 12, 42-46) (INCLS LUMBAR SUPPORT, RECLINER, SENSOR ; MOTOR) N2 (AR9) 2008-2009 01
010 19127588 PANEL, D/SEAT BK CUSH FIN (BRICK) (INCLS MAP POCKET) N2 (AR9, 242) 2008-2009 01
010 19127589 PANEL, D/SEAT BK CUSH FIN (EBONY) (INCLS MAP POCKET) N2 (AR9, 192) 2008-2009 01
011 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2008-2009 08
012 RECLINER, D/SEAT OTR (PART OF 9) 2008-2009
013 15827129 COVER, F/SEAT RSR FIN (INCLS 14) (EBONY) (RIGHT ; LEFT TOE KICK) N2 (AR9, 192, 242) 2008-2009 01
014 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 13) 2008-2009
015 19127681 FRAME, D/SEAT CUSH (POWER) N2 (AR9) 2008-2009 01
016 12451497 SWITCH, D/SEAT ADJR ; RECL (8-WAY) (11.558) N2 (AR9) 2008-2009 01
017 SWITCH, D/SEAT LUMBAR CONT 2008-2009
018 15232562 COVER, D/SEAT ADJR FIN (OUTBOARD, 40% LH) (INCLS 23) (EBONY) (8 WAY POWER) N2 (AR9, 192, 242) 2008-2009 01
019 19127582 HEATER, D/SEAT CUSH N2 (AR9) 2008-2009 01
020 10340136 KNOB, D/SEAT RECL LVR (EBONY) (11.377) N2 (AR9, 192, 242) 2008-2009 01
021 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) N2 (AR9) 2008-2009 01
022 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2008-2009 02
023 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 18, 48) 2008-2009
024 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT CUSH OTR FIN PNL) 2008-2009 03
025 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (OUTBOARD) N2 (AR9, 192, 242) 2008-2009 01
025 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) N2 (AR9, 192, 242) 2008-2009 01
026 25966538 ADJUSTER, D/SEAT (INCLS 34) N2 (AR9) 2008-2009 01
027 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) N2 (AR9) 2008-2009 01
028 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 30) (EBONY) (OUTBOARD) N2 (AR9, 192, 242) 2008-2009 01
028 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 30) (EBONY) (INBOARD) N2 (AR9, 192, 242) 2008-2009 01
029 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2008-2009 08
030 RETAINER, F/SEAT ADJR FIN CVR (PART OF 28) 2008-2009
031 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT ADJR FIN CVR) 2008-2009 01
032 15827134 BRACKET, D/SEAT FRT (MAIN BODY HARNESS CONNECTION) (16.686) N2 2008-2009 01
033 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (OUTBOARD, 40% LH, FRT INNER W/O FASTENERS) (EBONY) N2 (AR9, 192, 242) 2008-2009 01
034 25815788 CAP, F/SEAT ADJR TRK END (PART OF 26) (BLACK) N2 (AR9) 2008-2009 02
035 ДАТЧИК, INFL RST D/SEAT POSITION 2008-2009
036 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT BELT (BKL SI)) (ACDelco #11517996) 2008-2009 01
037 15845153 BRACKET, D/SEAT BELT (BKL SI) (I/B) N2 (AR9) 2008-2009 01
038 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT ADJR MEMORY SW) 2008-2009 04
039 25855630 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855630) (11.558) N2 (AR9) 2008-2009 01
040 19168789 РЕМЕНЬ, D/SEAT (BKL SI) (EBONY) (14.875) N2 (AR9) 2008-2009 01
041 15911812 HARNESS, D/SEAT ADJR WRG (W/LMBR/MEM/HEAT W/O SPS) N2 (AR9) 2008-2008 01
042 RECLINER, D/SEAT (PART OF 9) 2008-2009
043 БОЛТ, D/SEAT RECL POSN SNSR (PART OF 9) 2008-2009
044 MOTOR, D/SEAT RECL ACTR (PART OF 9) 2008-2009
045 ДАТЧИК, D/SEAT RECL POSN (PART OF 9) 2008-2009
046 RECLINER, D/SEAT INR (PART OF 9) 2008-2009
047 15827136 BRACKET, D/SEAT RECL (I/B) N2 2008-2009 01
048 15243823 COVER, D/SEAT INR RECL FIN (INBOARD, 40% LH, BUCKLE) (INCLS 23) (EBONY) N2 (AR9, 192, 242) 2008-2009 01
049 19127585 PAD, D/SEAT CUSH N2 (AR9) 2008-2009 01
050 19127577 COVER, D/SEAT CUSH (BRICK) N2 (AR9, 242) 2008-2009 01
050 19127578 COVER, D/SEAT CUSH (EBONY) N2 (AR9, 192) 2008-2009 01
051 25911156 HEATER, D/SEAT BK CUSH (HEAT ONLY) N2 (AR9) 2008-2009 01
