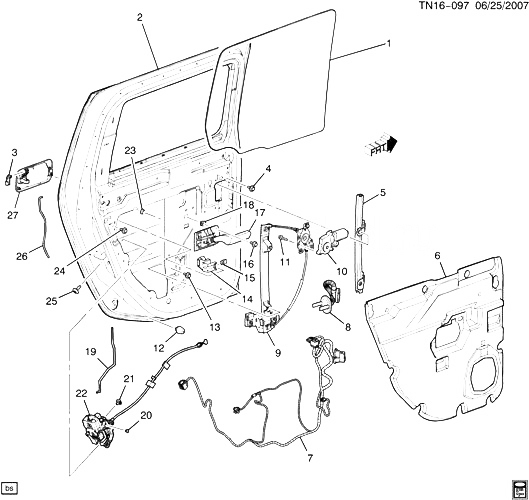

(TN16-097) - 2008-2009 N2 АРМАТУРА ЗАДНЕЙ БОКОВОЙ ДВЕРИ ЧАСТЬ 2 HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15189210 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N2 (EXC ANJ) 2008-2009 01
001 15189210 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ (16.180) N2 (EXC ANJ) 2008-2009 01
001 15189211 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N2 (EXC ANJ) 2008-2009 01
001 15189211 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ (16.180) N2 (EXC ANJ) 2008-2009 01
001 15823108 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N2 (ANJ) (EXPORT) 2008-2009 01
001 15823108 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ (16.180) N2 (ANJ) (EXPORT) 2008-2009 01
001 15823109 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ N2 (ANJ) (EXPORT) 2008-2009 01
001 15823109 СТЕКЛО, ЗАДНЯЯ ДВЕРЬ (16.180) N2 (ANJ) (EXPORT) 2008-2009 01
002 10396625 ДВЕРЬ, ЗАДНЯЯ SI (SEE GROUP 16.000 SHEET METAL/BODY FOR DETATILED ILLUSTRATED VIEW) N2 2008-2009 01
002 10396626 ДВЕРЬ, ЗАДНЯЯ SI (SEE GROUP 16.000 SHEET METAL/BODY FOR DETATILED ILLUSTRATED VIEW) N2 2008-2009 01
003 CLIP, RR S/D O/S HDL (PART OF 27) 2008-2009
004 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D WDO FRT CHAN) 2008-2009 04
005 15068267 CHANNEL, RR S/D WDO FRT N2 2008-2009 01
005 15068268 CHANNEL, RR S/D WDO FRT N2 2008-2009 01
006 25848851 DEFLECTOR, RR S/D WAT (16.150) N257 2008-2009 01
006 25848852 DEFLECTOR, RR S/D WAT (16.150) N257 2008-2009 01
007 25904940 HARNESS, RR S/D DR WRG (INCLS 8) N2 2008-2009 01
007 25904941 HARNESS, RR S/D DR WRG (INCLS 8) N2 2008-2009 01
008 15355577 GROMMET, R/D DR WRG HARN (PART OF 7) N2 2008-2009 01
009 15771354 REGULATOR, RR S/D WDO (INCLS 10, 11) (INCLS MOTOR KIT) (ACDelco #15771354) N2 2008-2009 01
009 15771355 REGULATOR, RR S/D WDO (INCLS 10, 11) (INCLS MOTOR KIT) (ACDelco #15771355) N2 2008-2009 01
010 88981020 MOTOR KIT, RR S/D WDO REG (PART OF 9) (INCLS 11) (ACDelco #88981020) N2 2008-2009 01
010 88981021 MOTOR KIT, RR S/D WDO REG (PART OF 9) (INCLS 11) (REQUIRES 5/16 TAP THREAD BOLT) (ACDelco #88981021) N2 2008-2009 01
011 БОЛТ, RR S/D WDO REG MOT (PART OF 9, 10) 2008-2009
012 15039965 BUMPER, RR S/D N2 2008-2009 02
013 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D WDO REG) 2008-2009 06
014 15175367 STABILIZER, RR S/D WDO (INCLS 15) N2 2008-2009 02
015 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 14) 2008-2009 02
016 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D I/S HDL) 2008-2009 02
017 25879547 HANDLE, RR S/D I/S (BRIGHT CHROME) N2 (19I, 24I) 2008-2008 01
017 25879765 HANDLE, RR S/D I/S (BRIGHT CHROME) N2 (19I, 24I) 2008-2008 01
018 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (RR S/D I/S HDL) 2008-2009 02
019 10396636 ROD, RR S/D LAT N2 2008-2009 01
019 25906557 ROD, RR S/D LAT N2 2008-2009 01
020 CLIP, RR S/D LKG ROD (PART OF 22) 2008-2009
021 CLIP, RR S/D LKG ROD (PART OF 22) 2008-2009
022 25840363 LOCK, RR S/D (INCLS 20, 21) N2 2008-2008 01
022 25840364 LOCK, RR S/D (INCLS 20, 21) N2 2008-2008 01
023 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR S/D O/S HDL) 2008-2009 06
024 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D WDO STAB) 2008-2009 02
025 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (RR S/D LAT) 2008-2009 06
026 15189247 ROD, RR S/D O/S HDL N2 2008-2009 01
026 15189248 ROD, RR S/D O/S HDL N2 2008-2009 01
027 25845864 HANDLE, RR S/D O/S (INCLS 3) (BRIGHT CHROME) N2 2008-2008 01
027 25845865 HANDLE, RR S/D O/S (INCLS 3) (BRIGHT CHROME) N2 2008-2008 01
