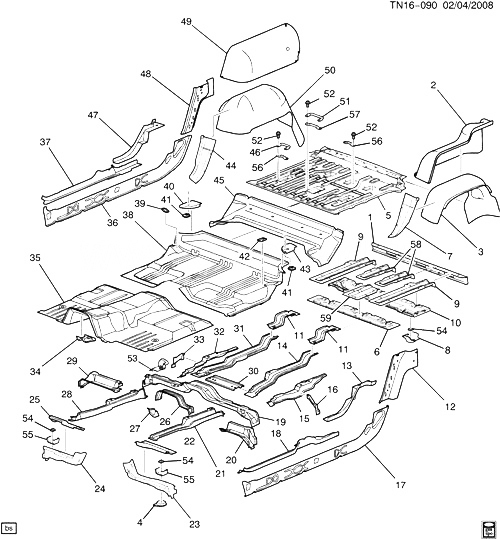

(TN16-090) - 2008-2009 N2(06) НИЖНИЕ КУЗОВНЫЕ ДЕТАЛИ HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15148234 SILL, U/B RR CR N2 2008-2009 01
002 15773367 PANEL, RR W/H INR N2 2008-2009 01
003 15111879 SHIELD, RR W/H PNL SIGHT N2 2008-2009 01
004 BRACKET, BODY FRT MT (PART OF 23) 2008-2009
005 PANEL, R/FLR 2008-2009
006 SILL, U/B #4 CR 2008-2009
007 15068292 EXTENSION, RR W/H INR PNL LWR FRT N2 2008-2009 01
008 15059480 SPACER, BODY MT (PART OF 10) N2 2008-2009 02
009 15059365 REINFORCEMENT, R/FLR PNL RR N2 2008-2009 03
010 SILL, U/B #5 CR (INCLS 8, 54) 2008-2009
011 15771189 REINFORCEMENT, FLR PNL (REAR) N2 2008-2009 02
012 15187438 FILLER, RR W/H PNL N2 2008-2009 01
013 15773328 EXTENSION, INTER FLR PNL N2 2008-2009 01
014 15722519 REINFORCEMENT, INTER FLR PNL N2 2008-2009 01
015 15234710 REINFORCEMENT, FLR PNL (INTERMEDIATE OUTER) N2 2008-2009 01
016 15029772 BRACE, INTER FLR PNL N2 2008-2009 02
017 15771200 PANEL, RKR FRT INR N2 2008-2009 01
018 15773326 EXTENSION, FLR PNL N2 2008-2009 01
019 SILL, U/B #2 CR 2008-2009
020 15828261 REINFORCEMENT, FLR PNL (D/SEAT) (OUTER) N2 2008-2009 01
021 15822915 REINFORCEMENT, FLR PNL (D/SEAT) (INNER) N257 2008-2009 01
022 15062444 PANEL, F/FLR PNL FIL N2 2008-2009 01
023 88944231 SILL, U/B #1 CR (INCLS 4, 54, 55) N2 2008-2009 01
024 88944230 SILL, U/B #1 CR (INCLS 54, 55) N2 2008-2009 01
025 15062445 PANEL, F/FLR PNL FIL N2 2008-2009 01
026 15173440 STIFFENER, FLR PNL AT TUN N2 2008-2009 01
026 15173441 STIFFENER, FLR PNL AT TUN N2 2008-2009 01
027 15174121 BRACKET, I/P LWR N2 2008-2009 01
028 15234735 REINFORCEMENT, FLR PNL (P/SEAT) (INNER) N257 2008-2009 01
029 15234733 REINFORCEMENT, FLR PNL (P/SEAT) (OUTER) N257 2008-2009 01
030 15234713 REINFORCEMENT, INTER FLR PNL (CENTER) N2 2008-2009 01
031 15234712 REINFORCEMENT, INTER FLR PNL (INCLS EXH MUFF H/SHLD, WELD STUDY) N257 2008-2009 01
032 25860799 REINFORCEMENT, FLR PNL (INTERMEDIATE OUTER) N2 2008-2009 01
033 15029772 BRACE, INTER FLR PNL N2 2008-2009 02
034 15174121 BRACKET, I/P LWR N2 2008-2009 01
035 15771193 PANEL, F/FLR (VEHICLES BUILT BEFORE 12/01/2007) (FOR 2ND DES SEE 25910525) N257 (1ST DES) 2008-2008 01
035 25910525 PANEL, F/FLR (VEHICLES BUILT ON OR AFTER 12/01/2007) (FOR 1ST DES SEE 15771193) N257 (2ND DES) 2008-2008 01
036 15771199 PANEL, RKR FRT INR N2 2008-2009 01
037 15773325 EXTENSION, FLR PNL N2 2008-2009 01
038 15950124 PANEL, INTER FLR N2 2008-2009 01
039 25820734 PLUG, INTER FLR PNL ACC HOLE RR N2 2008-2009 02
040 15074797 PANEL, INTER FLR PNL FIL (INCLS 41) N2 2008-2009 01
041 15154213 PLATE, ЗАДНЕЕ СИДЕНЬЕ BELT ANC (RETR SI) (PART OF 40, 43) N2 2008-2009 02
042 15742557 PLUG, INTER FLR PNL ACC HOLE FRT (71.0 X 96.0 MM) (WELD ACCESS) N2 2008-2009 04
043 15074796 PANEL, INTER FLR PNL FIL (INCLS 41) N2 2008-2009 01
044 15068293 EXTENSION, RR W/H INR PNL LWR FRT N2 2008-2009 01
045 88944227 SILL, U/B #3 CR N2 2008-2009 01
046 15038813 STRIKER, ЗАДНЕЕ СИДЕНЬЕ #2 RSR LAT (INCLS 56) (OUTER) (INCLS UPPER ; LOWER) N2 (06) 2008-2009 02
047 15773327 EXTENSION, INTER FLR PNL N2 2008-2009 01
048 15187439 FILLER, RR W/H PNL N2 2008-2009 01
049 10370686 PANEL, RR W/H INR (LESS PANEL) N2 2008-2009 01
050 15111880 SHIELD, RR W/H PNL SIGHT N2 2008-2009 01
051 15038814 STRIKER, ЗАДНЕЕ СИДЕНЬЕ #2 RSR LAT (INCLS 57) (CENTER) N2 (06) 2008-2009 01
052 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (ЗАДНЕЕ СИДЕНЬЕ #2 RSR LAT STKR) (T/W 12345493 REPLCS 25534835) 2008-2009 14
053 15061612 BRACKET, BODY MT (#2) N2 2008-2009 01
053 15061613 BRACKET, BODY MT (#2) N2 2008-2009 01
054 NUT, BODY MT BRKT (PART OF 10, 23, 24) 2008-2009
055 BRACKET, BODY MT (PART OF 23, 24) 2008-2009
056 15013755 STRIKER, ЗАДНЕЕ СИДЕНЬЕ #2 RSR LAT (PART OF 46) (LOWER) N2 (06) 2008-2009 04
057 STRIKER, ЗАДНЕЕ СИДЕНЬЕ #2 RSR LAT (PART OF 51) 2008-2009
058 15148236 REINFORCEMENT, U/B RR CR SILL OTR N2 2008-2009 02
059 15148237 REINFORCEMENT, U/B CTR CR SILL N2 2008-2009 01
