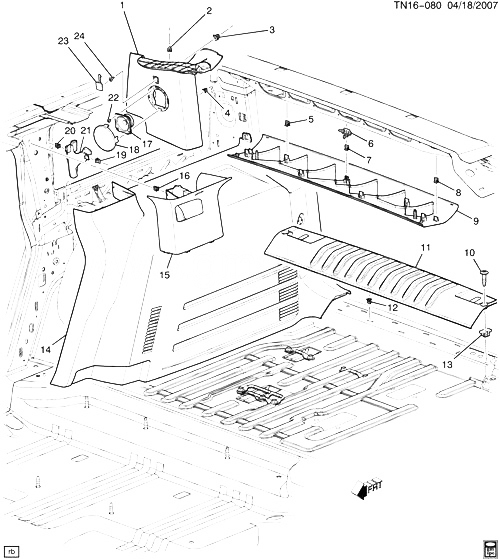

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25909263 |
MOLDING, BODY RR COR UPR GARN (EBONY) |
N2 (06) |
2008-2009 |
01 |
| 001 |
25909265 |
MOLDING, BODY RR COR UPR GARN (EBONY) |
N2 (06) |
2008-2009 |
01 |
| 002 |
10148727 |
RETAINER, BODY RR COR UPR G/MLDG (U-TYPE) (6.760) |
N2 (06) |
2008-2009 |
04 |
| 003 |
11609651 |
RETAINER, BODY RR COR G/MLDG (M21.8X15.0X20.5) (14.731)
| N2 (06) |
2008-2009 |
02 |
|
| 004 |
11588650 |
CLIP, 12X14X16.6, GM4345M (BODY RR COR UPR G/MLDG)
|
2008-2009 |
06 |
|
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 9)
|
2008-2009 |
06 |
|
| 006 |
11570575 |
CLIP, BK BODY OPG G/MLDG (PART OF 9) (STEEL) |
N2 (06) |
2008-2009 |
01 |
| 007 |
11570576 |
CLIP, BK BODY OPG G/MLDG (PART OF 9) (PLASTIC) |
N2 (06) |
2008-2009 |
01 |
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 9)
|
2008-2009 |
02 |
|
| 009 |
25921279 |
MOLDING, BK BODY OPG GARN (INCLS 5-8) (EBONY) |
N2 (06) |
2008-2008 |
01 |
| 010 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (L/GATE SILL TR PLT)
|
2008-2009 |
02 |
|
| 011 |
10392652 |
PLATE, L/GATE SILL TR (INCLS 12) (EBONY) |
N2 (06) (E52) |
2008-2009 |
01 |
| 012 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 11)
|
2008-2009 |
09 |
|
| 013 |
11519497 |
NUT, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (L/GATE SILL TR PLT)
|
2008-2009 |
02 |
|
| 014 |
25897265 |
PANEL, BODY SI TR (SEE GROUP 16.000 ОТДЕЛКА-ИНТЕРЬЕР-BODY SIDE-QUATER DETAIL FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
N257 (06) |
2008-2008 |
01 |
| 014 |
25958044 |
PANEL, BODY SI TR (SEE GROUP 16.000 ОТДЕЛКА-ИНТЕРЬЕР-BODY SIDE-QUATER DETAIL FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
N257 (06) |
2008-2008 |
01 |
| 015 |
25825652 |
MOLDING, BODY L/PLR GARN (INCLS 16) (EBONY) |
N2 (06) |
2008-2009 |
01 |
| 015 |
25922406 |
MOLDING, BODY L/PLR GARN (INCLS 16) (EBONY) |
N2 (06) |
2008-2009 |
01 |
| 016 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 15)
|
2008-2009 |
02 |
|
| 017 |
15186672 |
ДИНАМИК, RDO BODY RR COR UPR GARN MLDG (ACDelco #15186672)
| N257 (06) |
2008-2009 |
02 |
|
| 018 |
|
GRILLE, RDO BODY RR COR UPR GARN MLDG SPKR |
|
2008-2009 |
|
| 019 |
|
CLIP, BODY L/PLR G/MLDG (PART OF 21) |
|
2008-2009 |
|
| 020 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 21)
|
2008-2009 |
01 |
|
| 021 |
15298180 |
BRACKET, BODY L/PLR G/MLDG (INCLS 19, 20) |
N2 (06) |
2008-2009 |
01 |
| 022 |
11509253 |
SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (BODY RR COR UPR G/MLDG) |
|
2008-2009 |
04 |
| 023 |
|
PLUG, BODY RR COR UPR GARN MLDG |
|
2008-2009 |
|
| 024 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (BODY RR COR UPR G/MLDG)
|
2008-2009 |
02 |
|
