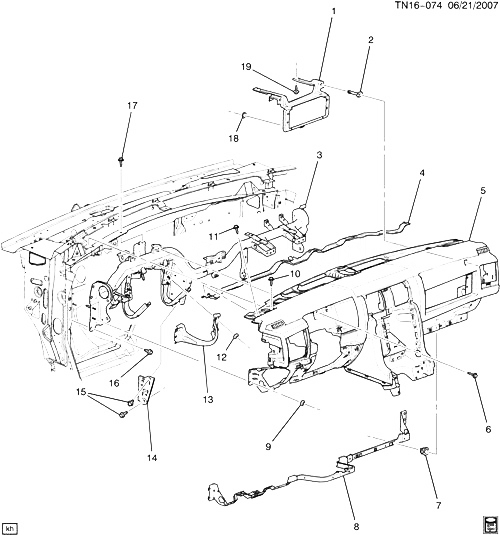

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25856233 |
REINFORCEMENT, I/P INFL RST MDL (PART OF 5) (INCLS 2) |
N257 |
2008-2009 |
01 |
| 002 |
15969709 |
RETAINER, I/P ASST HDL (PART OF 1, 5)
| N257 |
2008-2009 |
02 |
|
| 003 |
25848862 |
SUPPORT, INST CARR |
N2 |
2008-2009 |
01 |
| 004 |
|
BRACKET, I/P UPR (PART OF 5) |
|
2008-2009 |
|
| 005 |
20765912 |
PANEL, INST (INCLS 1, 2, 4, 7, 8, 11, 18, 19) (SEE GROUP 16.000 INSTRUMENT PANEL ; RELATED PARTS TRIM FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
N2 |
2008-2009 |
01 |
| 006 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P) (9.665)
|
2008-2009 |
10 |
|
| 007 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 5, 8) (10.701)
|
2008-2009 |
04 |
|
| 008 |
|
BRACKET, I/P LWR TIE BAR (PART OF 5) (INCLS 7) |
|
2008-2009 |
|
| 009 |
11508277 |
ГАЙКА, HEX W/CON WA M6X1 THD, OD-19 PEOR 9 (I/P)
|
2008-2009 |
04 |
|
| 010 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P UPR BRKT)
|
2008-2009 |
03 |
|
| 011 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 5) (8.977)
|
2008-2009 |
06 |
|
| 012 |
11508277 |
ГАЙКА, HEX W/CON WA M6X1 THD, OD-19 PEOR 9 (I/P DRVR KNEE BOLS DFL)
|
2008-2009 |
04 |
|
| 013 |
15192254 |
DEFLECTOR, I/P DRVR KNEE BOLS
| N2 |
2008-2009 |
01 |
|
| 014 |
10355555 |
BRACE, I/P CTR SUPT |
N2 |
2008-2009 |
01 |
| 015 |
11609410 |
БОЛТ, HFH, M8X1.25X25, 10.9, GMW3179 (I/P CTR SUPT BR) (0.056)
|
2008-2009 |
03 |
|
| 016 |
11516845 |
БОЛТ, HFH, W/FL WA, 10X1.5X35, 22THD, 22.3 O.D., P PT, 9.8, 7114M (INST CARR SUPT)
|
2008-2009 |
04 |
|
| 017 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (INST CARR SUPT)
|
2008-2009 |
02 |
|
| 018 |
|
NUT, INFL RST I/P MDL BRKT (PART OF 5) |
|
2008-2009 |
|
| 019 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 5) (8.977)
|
2008-2009 |
02 |
|
