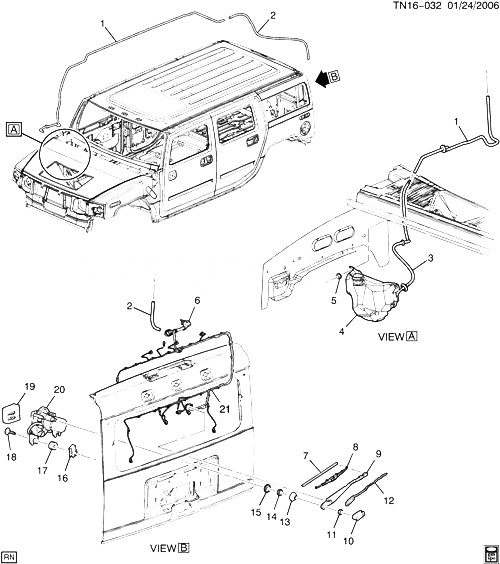

(TN16-032) - 2003-2009 N2(06) СТЕКЛООЧИСТИТЕЛЬ ЗАДНЕГО ОКНА HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HOSE, R/WDO WA PUMP (PART OF PANEL, HDLNG TR-16.742) 2003-2009
002 15192802 HOSE, R/WDO WA NOZ (LIFT GATE SI) N2 (06) (E52) 2003-2009 01
003 HOSE, R/WDO WA PUMP (PART OF PANEL, HDLNG TR-16.742) 2008-2009
004 CONTAINER, WSWA SOLV (W/PUMP) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSTRATED VIEW) 2003-2009
005 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (WSWA SOLV CNTNR) 2003-2009 03
006 25917383 HARNESS, L/GATE WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/ BODY FOR DETAILED ILLUSTRATED VIEW) (INCLS 21) N2 (06) (E52) 2008-2009 01
006 25917383 HARNESS, L/GATE WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/ BODY FOR DETAILED ILLUSTRATED VIEW) (INCLS 21) (2.480) N2 (06) (E52) 2008-2009 01
007 12335786 WIPER, W/S (REFILL) (PART OF 8) (REAR WINDOW) N2 (06) 2003-2009 01
008 12335785 BLADE, R/WDO WPR (INCLS 7) N2 (06) 2003-2009 01
009 88944328 ARM, R/WDO WPR N2 (06) 2003-2009 01
010 12335707 CAP, R/WDO WPR ARM FIN (16.063) N2 (06) 2003-2009 01
011 11589150 ГАЙКА, HEX, W/ADH, M8X1.25X6.80, 5, GMW3359 (R/WDO WPR ARM) 2003-2009 01
012 88944333 NOZZLE KIT, WSW ARM WSWA (W/HOSE) N2 (06) 2003-2009 01
013 15180183 COVER, R/WDO WPR MOT N2 (06) (E52) 2003-2009 01
014 11519619 ГАЙКА, HEX, M18X1X5, 4, 6280M (BLACK) (R/WDO WPR MOT) 2003-2009 01
015 15284510 SPACER, R/WDO WPR MOT N2 (06) (E52) 2003-2009 01
016 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (R/WDO WPR MOT BRKT) 2003-2009 02
017 GROMMET, R/WDO WPR MOT (PART OF 20) 2003-2009
018 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (PART OF 20) (ACDelco #11517518) 2003-2009 02
019 19120870 MODULE, R/WDO WPR CONT (PART OF 20) (ACDelco #19120870) N2 (06) 2003-2009 01
020 15248351 MOTOR, R/WDO WPR (INCLS 17-19) (ACDelco #15248351) N2 (06) 2008-2009 01
021 15179529 HOSE, R/WDO WA NOZ (PART OF 6) (BODY SI) N257 (06) (E52) 2003-2009 01
