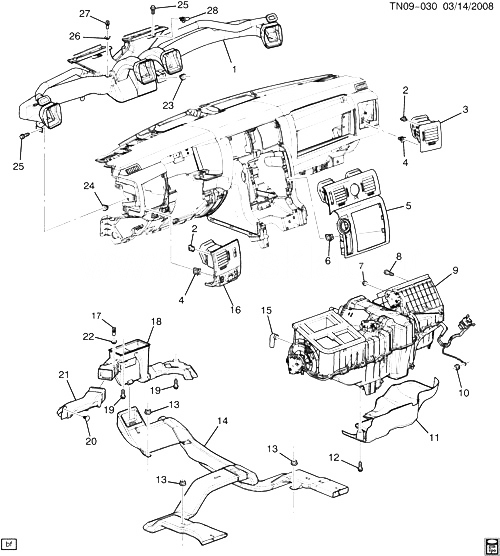

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15147173 |
DUCT, AIR DISTR (INCLS 23, 26-28) |
N2 (CJ2) |
2008-2008 |
01 |
| 002 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 3, 16)
|
2008-2009 |
01 |
|
| 003 |
25954816 |
BEZEL, I/P OTR AIR OTLT (INCLS 2, 4) (BRONZE) |
N257 |
2008-2008 |
01 |
| 004 |
11610112 |
CLIP, I/P OTR AIR OTLT (PART OF 3, 16) (10.4 X 13 X 9) (14.683) |
N257 |
2008-2009 |
AR |
| 005 |
25841299 |
BEZEL, I/P CTR AIR OTLT (INCLS 6) (BRONZE) (ASSEMBLY) |
N257 |
2008-2008 |
01 |
| 006 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5)
|
2008-2009 |
10 |
|
| 007 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR ; A/C EVPR ; BLO MDL)
|
2008-2009 |
02 |
|
| 007 |
20733729 |
WASHER, SEALING, M5, 4 I.D., 25MM O.D., 4MM THK, RUB (R/CMPT LID FIN PNL) |
|
2008-2009 |
02 |
| 008 |
15733206 |
БОЛТ, HTR ; BLO MDL (M6X2.70X27) |
N2 |
2008-2009 |
05 |
| 009 |
|
MODULE, HTR ; A/C EVPR ; BLO (SEE GROUP 09.000 A/C HEATER MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 010 |
11609716 |
NUT-HFH, M6X1X5.85, 14.2 OD, 9 STL, GMW3200 (A/C MDL WRG HARN GND) |
|
2008-2009 |
01 |
| 011 |
15939259 |
PANEL, I/P INSL |
N2 |
2008-2009 |
01 |
| 012 |
11609370 |
BOLT-HWH, M4.2X1.41X20, HI - LOW THD, , OD 12, 6010 STL, GMW4205, TAP (I/P INSL PNL) (9.667) |
|
2008-2009 |
03 |
| 013 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL COMPT) (10.701)
|
2008-2009 |
17 |
|
| 014 |
15819324 |
DUCT, FLR RR AIR OTLT |
N2 |
2008-2009 |
01 |
| 015 |
15138625 |
HOSE, A/C EVPR ; BLO MDL DRN |
N2 |
2008-2009 |
01 |
| 016 |
25861046 |
BEZEL, I/P OTR AIR OTLT (INCLS 2, 4) (SEE GROUP 16.000 INSTRUMENT PANEL ; RELATED PARTS TRIM FOR DETAILED ILLUSTRATED VIEW) (BRONZE) (M/GATE WDO SWITCH ; WDO WASH SWITCH) |
N257 (36) (CHW) |
2008-2008 |
01 |
| 016 |
25954828 |
BEZEL, I/P OTR AIR OTLT (INCLS 2, 4) (SEE GROUP 16.000 INSTRUMENT PANEL ; RELATED PARTS TRIM FOR DETAILED ILLUSTRATED VIEW) (BRONZE) (VEH BUILT PRIOR TO 9/22/8 REQ IP REWORK;REFER TO IP SVC BULLETIN FOR MODIFY/TRIM DETAILS) |
N257 (06) |
2008-2008 |
01 |
| 016 |
25957686 |
BEZEL, I/P OTR AIR OTLT (INCLS 2, 4) (SEE GROUP 16.000 INSTRUMENT PANEL ; RELATED PARTS TRIM FOR DETAILED ILLUSTRATED VIEW) (BRONZE) (REFER TO IP SVC BULLETIN FOR MODIFY/TRIM DETAILS) |
N257 (36) (EXC CHW) |
2008-2008 |
01 |
| 017 |
12160947 |
ДАТЧИК, DUCT AIR TEMP (PART OF 18) (ACDelco #15-5632)
| N2 (CJ2) |
2008-2008 |
02 |
|
| 018 |
15762756 |
DUCT, FLR AIR OTLT (INCLS 17, 22) |
N2 |
2008-2008 |
01 |
| 019 |
11609370 |
BOLT-HWH, M4.2X1.41X20, HI - LOW THD, , OD 12, 6010 STL, GMW4205, TAP (I/P CTR AIR OTLT) (9.667) |
|
2008-2009 |
02 |
| 020 |
15958694 |
RETAINER, FLR FRT AIR OTLT DUCT (PUSH IN) (PART OF 21) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| N2 |
2008-2009 |
01 |
|
| 021 |
15256414 |
DUCT, FLR FRT AIR OTLT (INCLS 20) |
N2 |
2008-2009 |
01 |
| 022 |
15152429 |
RETAINER, I/S AIR TEMP SEN DUCT (PART OF 18) (HOLE LINER TYPE) (9.770) |
N2 (CJ2) |
2008-2009 |
02 |
| 023 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 1) (10.701)
|
2008-2009 |
01 |
|
| 024 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P CARR) (10.701)
|
2008-2009 |
27 |
|
| 025 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AIR DISTR DUCT) (9.665)
|
2008-2009 |
05 |
|
| 026 |
15152429 |
RETAINER, I/S AIR TEMP SEN DUCT (PART OF 1) (HOLE LINER TYPE) (9.770) |
N2 (CJ2) |
2008-2009 |
02 |
| 027 |
12160947 |
ДАТЧИК, DUCT AIR TEMP (PART OF 1) (ACDelco #15-5632)
| N2 (CJ2) |
2008-2008 |
02 |
|
| 028 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 1)
|
2008-2009 |
02 |
|
