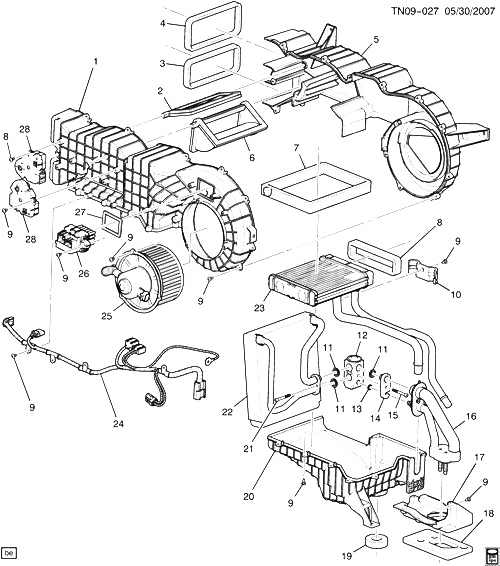

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19130374 |
CASE, AUX A/C EVPR ; BLO (LH CASE) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 002 |
19130377 |
VALVE, MODE |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 003 |
|
SEAL, AUX A/C AIR OTLT DUCT (*KIT1) |
|
2008-2009 |
|
| 004 |
|
SEAL, AUX HTR ; A/C MDL OTLT DUCT (*KIT1) |
|
2008-2009 |
|
| 005 |
19130373 |
CASE, AUX A/C EVPR ; BLO (RH CASE) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 006 |
19130376 |
VALVE, TEMP (ACDelco #15-50800) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 007 |
|
SEAL, AUX HTR CORE (PART OF 23) |
|
2008-2009 |
|
| 008 |
|
SEAL, AUX HTR CORE (PART OF 23) |
|
2008-2009 |
|
| 009 |
19167663 |
БОЛТ, AUX A/C EVPR ; BLO CASE (M4.8X1.59, 10, 51 OD) |
N2 (06) (C36, C69) |
2008-2009 |
41 |
| 010 |
19130386 |
BRACKET, HTR CORE TUBE |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 011 |
03094215 |
O-RING, ID .551, NEOPRENE (PART OF 12) (ACDelco #15-30487) |
|
2008-2009 |
03 |
| 012 |
19130395 |
VALVE KIT, AUX A/C EVPR THERMAL EXPN (INCLS 11, 13, 15, 21) (ACDelco #15-50801) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 013 |
19188398 |
SEAL, AUX A/C EVPR INL TUBE (O RING) (PART OF 12) (ACDelco #15-31810) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 014 |
19130383 |
BRACKET, AUX A/C EVPR TUBE |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 015 |
19130381 |
БОЛТ, AUX A/C EVPR TUBE (TUBE SIDE) (PART OF 12) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 016 |
19130382 |
TUBE, AUX A/C EVPR OTLT |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 017 |
19130387 |
COVER, AUX A/C EVPR ; BLO MDL |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 018 |
|
SEAL, AUX A/C EVPR PIPE (*KIT1) |
|
2008-2009 |
|
| 019 |
|
SEAL, A/C EVPR ; BLO MDL DRN HOSE (*KIT1) |
|
2008-2009 |
|
| 020 |
19130375 |
CASE, AUX A/C EVPR ; BLO LWR |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 021 |
19130380 |
БОЛТ, AUX A/C EVPR TUBE BRKT (EVAPORATOR SIDE) (PART OF 12) |
N2 (06) (C36, C69) |
2008-2009 |
02 |
| 022 |
19130378 |
EVAPORATOR, AUX A/C (ACDelco #15-63545) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 023 |
19130385 |
CORE, AUX HTR (INCLS 7, 8) (ACDelco #15-63544) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 024 |
19130392 |
HARNESS, AUX HTR ; A/C WRG |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 025 |
19130384 |
ВЕНТИЛЯТОР, AUX A/C |
N2 (06) (C36, C69) |
2008-2009 |
01 |
| 026 |
15141283 |
MODULE, BLO MOT CONT (INCLS 27) (ACDelco #15-80863)
| N2 |
2008-2009 |
01 |
|
| 027 |
|
INSULATOR, BLO MOT CONT MDL (PART OF 26) |
|
2008-2009 |
|
| 028 |
19130388 |
ACTUATOR, TEMP VLV (ACDelco #15-73822) |
N2 (06) (C36, C69) |
2008-2009 |
02 |
| K01 |
19130396 |
SEAL KIT, AUX HTR ; A/C EVAP MDL (INCLS 3, 4, 18, 19) |
N2 (06) (C36, C69) |
2008-2009 |
01 |
