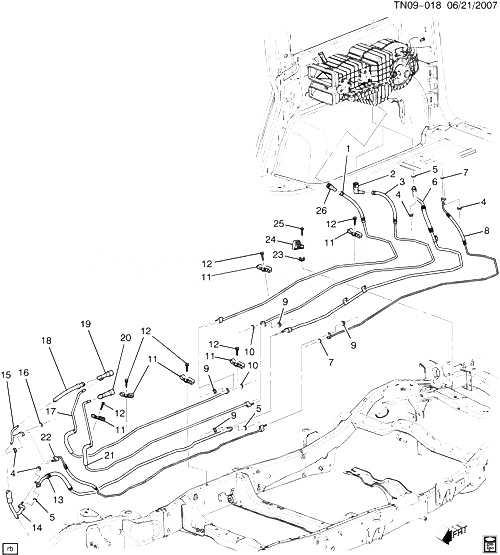

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15885101 |
HOSE, AUX HTR OTLT RR (INCLS 26) |
N2 (06) (CJ2) |
2008-2009 |
01 |
| 002 |
|
CONNECTOR, AUX HTR OTLT RR HOSE (PART OF 3) |
|
2008-2009 |
|
| 003 |
15860894 |
HOSE, AUX HTR INL RR (INCLS 2, 10) |
N2 (06) (CJ2) |
2008-2009 |
01 |
| 004 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C CMPR TUBE) (8.915) (ACDelco #11514596) |
|
2008-2009 |
04 |
| 005 |
02724966 |
SEAL, AUX A/C EVPR TUBE (O RING) (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 6, 13) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) |
N2 (06) |
2008-2009 |
03 |
| 005 |
52474373 |
SEAL, AUX A/C EVPR TUBE (O RING) (19MM OD X 11MM ID, 1/2IN DIA) (PART OF 6, 13) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| N2 (06) |
2008-2009 |
02 |
|
| 006 |
15860895 |
HOSE, AUX A/C EVPR OTLT RR (INCLS 5)
| N2 (06) (CJ2) |
2008-2009 |
01 |
|
| 007 |
02724966 |
SEAL, AUX A/C EVPR TUBE (O RING) (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 8) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) |
N2 (06) |
2008-2009 |
03 |
| 007 |
52474373 |
SEAL, AUX A/C EVPR TUBE (O RING) (19MM OD X 11MM ID, 1/2IN DIA) (PART OF 8) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| N2 (06) |
2008-2009 |
02 |
|
| 008 |
15860896 |
HOSE, AUX A/C EVPR INL RR (INCLS 7)
| N2 (06) (CJ2) |
2008-2009 |
01 |
|
| 009 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) |
|
2008-2009 |
04 |
| 010 |
52474373 |
SEAL, HTR INL ; OTLT PIPE (19MM OD X 11MM ID, 1/2IN DIA) (PART OF 3, 17) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (9.222) (ACDelco #15-31055)
| N2 (06) (CJ2) |
2008-2009 |
01 |
|
| 011 |
15102169 |
CLIP, AUX A/C EVPR HOSE (SLOT IN MIDDLE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
N2 (06) |
2008-2009 |
06 |
| 012 |
11588594 |
RETAINER, AUX A/C EVPR ; AUX HTR HOSE CLIP BOLT (PUSH ON) (14.760) |
N2 (06) |
2008-2009 |
06 |
| 013 |
15922893 |
HOSE, AUX A/C EVPR OTLT FRT (INCLS 5)
| N2 (06) (CJ2) |
2008-2009 |
01 |
|
| 014 |
25834126 |
HOSE, A/C ACCUM (SEE GROUP 09.000 СИСТЕМА ОХЛАЖДЕНИЕ КОНДИЦИОНЕРА/FRONT FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-33818) |
N2 (06) (CJ2) |
2008-2009 |
01 |
| 015 |
15147176 |
TUBE, A/C EVPR (SEE GROUP 09.000 СИСТЕМА ОХЛАЖДЕНИЕ КОНДИЦИОНЕРА/FRONT FOR DETAILED ILLUSTRATED VIEW) (INCLS 16) (ACDelco #15-33828) |
N2 (06) (CJ2) |
2008-2009 |
01 |
| 016 |
52474373 |
SEAL, A/C EVPR FTG (O RING) (19MM OD X 11MM ID, 1/2IN DIA) (PART OF 15) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| N2 |
2008-2009 |
04 |
|
| 017 |
25896184 |
HOSE, AUX HTR OTLT FRT (INCLS 10, 19) |
N2 (06) (CJ2) |
2008-2009 |
01 |
| 018 |
19130372 |
HOSE, RAD SURGE TK OTLT (SEE GROUP 01.000 ШЛАНГИ РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) |
N2 (06) |
2008-2009 |
01 |
| 019 |
15055343 |
TEE, AUX HTR INL HOSE (PART OF 17) (NATURAL) (111MM LONG)
| N2 (06) |
2008-2009 |
01 |
|
| 020 |
15055342 |
TEE, AUX HTR INL HOSE (PART OF 21) (BLACK) (113MM LONG) |
N2 (06) |
2008-2009 |
01 |
| 021 |
25896183 |
HOSE, AUX HTR INL FRT (INCLS 20)
| N2 (06) (CJ2) |
2008-2009 |
01 |
|
| 022 |
15922894 |
HOSE, AUX A/C EVPR INL FRT
| N2 (06) (CJ2) |
2008-2009 |
01 |
|
| 023 |
11570215 |
NUT, AUX A/C EVPR TUBE CLIP (M6X1) (FITS HOLE SIZE 9.5X14, 2-3.8MM PNL THK) (8.160)
| N2 (06) (C69) |
2008-2009 |
01 |
|
| 024 |
15102168 |
CLIP, AUX A/C EVPR HOSE (2X2 PLASTIC) (SLOT ON SIDE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
N2 (06) |
2008-2009 |
01 |
| 025 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (AUX A/C EVPR TUBE CLIP)
|
2008-2009 |
01 |
|
| 026 |
|
CONNECTOR, AUX HTR OTLT RR HOSE (PART OF 1) |
|
2008-2009 |
|
