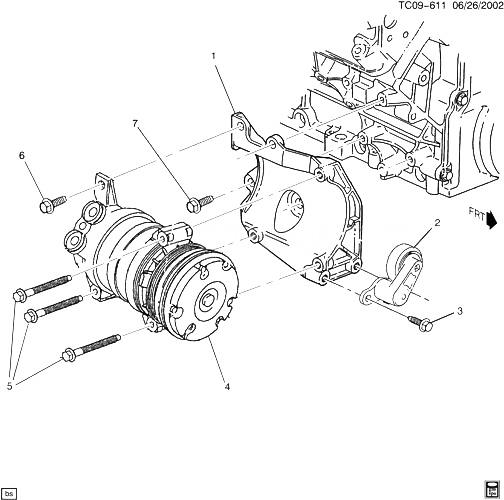

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12554026 |
BRACKET, A/C CMPR |
N2 (L92) |
2008-2008 |
01 |
| 002 |
12580196 |
TENSIONER, A/C CMPR BELT
| N2 |
2003-2008 |
01 |
|
| 003 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BELT TENSR) (T/W 12345493)
|
2003-2008 |
02 |
|
| 004 |
89024882 |
COMPRESSOR KIT, A/C (8.0 OZ. OIL SERVICE COMP KIT) (ACDelco #89024882)
| N2 (36) |
2008-2008 |
01 |
|
| 004 |
89024905 |
COMPRESSOR, A/C (ACDelco #89024905)
| N2 (06) |
2008-2008 |
01 |
|
| 005 |
11516109 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (A/C CMPR)
|
2003-2008 |
03 |
|
| 006 |
11516551 |
BOLT-HFH, M10X1.5X45, 34 THD, 22.3 OD, 10.9, DOG PT, 7114M (A/C CMPR) |
|
2003-2008 |
01 |
| 007 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BRKT) (T/W 12345493)
|
2003-2008 |
03 |
|
